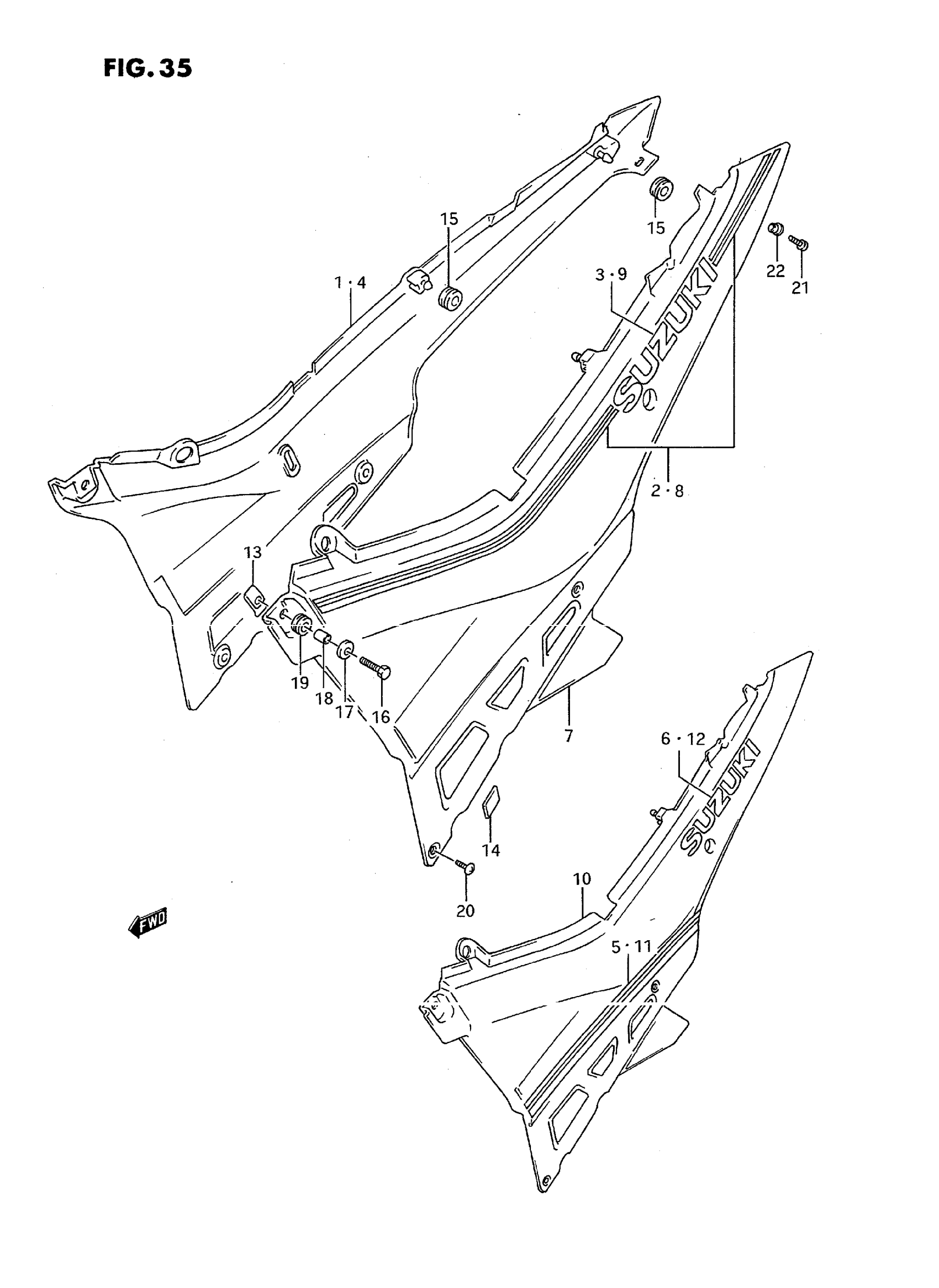

Suzuki GSX600FT (1996) FRAME COVER (MODEL J/K) Diagram

#

Description
Price

1

COVER, FRAME RH | MODEL J FOR 07P This part replaces 47110-19C00-7JT.

47111-19C01

Unavailable

1

COVER, FRAME RH | MODEL J FOR 38K; Includes Item(s) 2 - 3 This part replaces 47110-19C00-2GA.

47111-19C01

Unavailable

2

TAPE, FRAME COVER RH | MODEL J FOR 7JT

68130-19C00-85K

Unavailable

2

TAPE, FRAME COVER RH | MODEL J FOR 2GA

68130-19C00-2GC

Unavailable

3

EMBLEM (RED) | MODEL J FOR 7JT

68111-43400-07P

Unavailable

3

EMBLEM (BLUE) | MODEL J FOR 2GA

68111-43400-38K

Unavailable

4

COVER, FRAME RH | MODEL K FOR 31X,W/CLEAR

47110-19C30-2LR

Unavailable

4

COVER, FRAME RH | MODEL K FOR 31X,N/CLEAR

47110-19C31-2LR

Unavailable

4

COVER, FRAME RH | MODEL K FOR 28V,W/CLEAR

47110-19C30-2YP

Unavailable

4

COVER, FRAME RH | MODEL K FOR 28V,N/CLEAR; Includes Item(s) 5 - 6 This part replaces 47110-19C31-2YP.

47110-19C30-2YP

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL K FOR 2LR

68130-19C20-71P

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL K FOR 2YP

68130-19C20-70G

Unavailable

6

EMBLEM (GOLD) | MODEL K FOR 2LR

68131-19C20-764

Unavailable

6

.EMBLEM (BLACK) | MODEL K FOR 2YP This part replaces 68131-19C20-019.

68111-47C10-019

$22.97

7

NO DESCRIPTION AVAILABLE | MODEL J FOR 07P This part replaces 47210-19C00-7JT.

47211-19C01

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL J FOR 38K; Includes Item(s) 7 - 9 This part replaces 47210-19C00-2GA.

47211-19C01

Unavailable

7

TAPE, FRAME COVER LH | MODEL J FOR 7JT

68140-19C00-85K

Unavailable

7

TAPE, FRAME COVER LH | MODEL J FOR 2GA

68140-19C00-2GC

Unavailable

9

EMBLEM (RED) | MODEL J FOR 7JT

68111-43400-07P

Unavailable

9

EMBLEM (BLUE) | MODEL J FOR 2GA

68111-43400-38K

Unavailable

10

COVER, FRAME LH | MODEL K FOR 31X,W/CLEAR

47210-19C30-2LR

Unavailable

10

COVER, FRAME LH | MODEL K FOR 31X,N/CLEAR

47210-19C31-2LR

Unavailable

10

COVER, FRAME LH | MODEL K FOR 28V,W/CLEAR

47210-19C30-2YP

Unavailable

10

COVER, FRAME LH | MODEL K FOR 28V,N/CLEAR; Includes Item(s) 11 - 12 This part replaces 47210-19C31-2YP.

47210-19C30-2YP

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL K FOR 2LR

68140-19C20-71P

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL K FOR 2YP

68140-19C20-70G

Unavailable

12

EMBLEM (GOLD) | MODEL K FOR 2LR

68131-19C20-764

Unavailable

12

.EMBLEM (BLACK) | MODEL K FOR 2YP This part replaces 68131-19C20-019.

68111-47C10-019

$22.97

13

PLATE | MODEL J This part replaces 47153-19C00.

47153-19C01

$7.95

13

PLATE | MODEL K

47153-19C01

$7.95

14

CUSHION

47161-19C00

$3.03

15

CUSHION, REAR

09320-08018

$3.04

16

BOLT This part replaces 09128-06006.

09128-06057

$1.65

17

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

18

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

19

CUSHION

09320-09016

$1.97

20

SCREW, LOWER

09139-05038

$2.06

21

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

22

WASHER

09169-05009

$2.47

23

COLOR : 7JT =

SPECIAL NOTE

Unavailable
