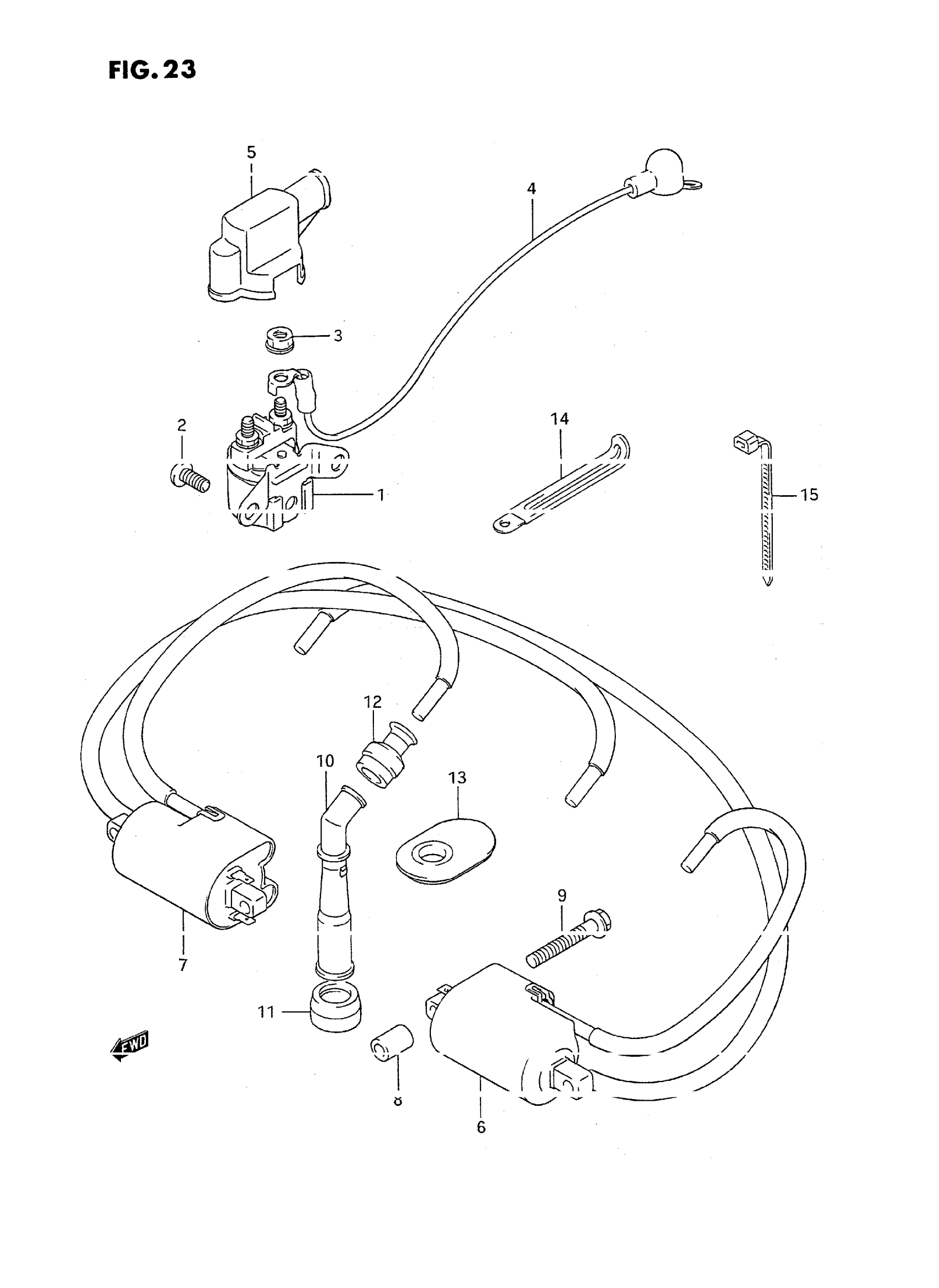

Suzuki GSX600FT (1996) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW | MODEL J/K/L/M/N/P/R This part replaces 02112-06106.

02112-0610B

$1.84

2

SCREW | MODEL S/T This part replaces 02112-06103.

02112-0610B

$1.84

3

NUT This part replaces 08361-35068.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR | MODEL J/K/L/M/N/P/R/S This part replaces 33850-19C00.

33810-41C00

Unavailable

4

LEAD WIRE, STARTING MOTOR | MODEL T

33810-41C00

Unavailable

5

CAP, TERMINAL | MODEL J/K/L/M/N/P/R This part replaces 31861-19C00.

31861-10D10

Unavailable

5

CAP, TERMINAL | MODEL S/T

31861-10D10

Unavailable

6

COIL ASSY, IGNITION NO.1 This part replaces 33410-19C00.

33410-19C01

$138.67

7

COIL ASSY, IGNITION NO.2 This part replaces 33420-19C00.

33420-19C01

$142.75

8

SPACER

09180-06198

$4.32

9

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06456.

01550-0645A

$2.41

9

BOLT | MODEL R/S/T This part replaces 01550-06453.

01550-0645A

$2.41

10

CAP, SPARK PLUG

33510-48B10

$31.77

11

SEAL, SPARK PLUG CAP | MODEL J/K/L/M/N/P This part replaces 33541-27A22.

33541-23E01

$6.34

11

SEAL, SPARK PLUG CAP | MODEL R/S/T This part replaces 33541-48B00.

33541-23E01

$6.34

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

COVER, SPARK PLUG CAP | MODEL J/K/L/M/N/P This part replaces 33543-27A21.

33543-48B00

$7.25

13

COVER | MODEL R/S/T

33543-48B00

$7.25

14

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

15

CLAMP (L:165)

09407-18402

$2.19
