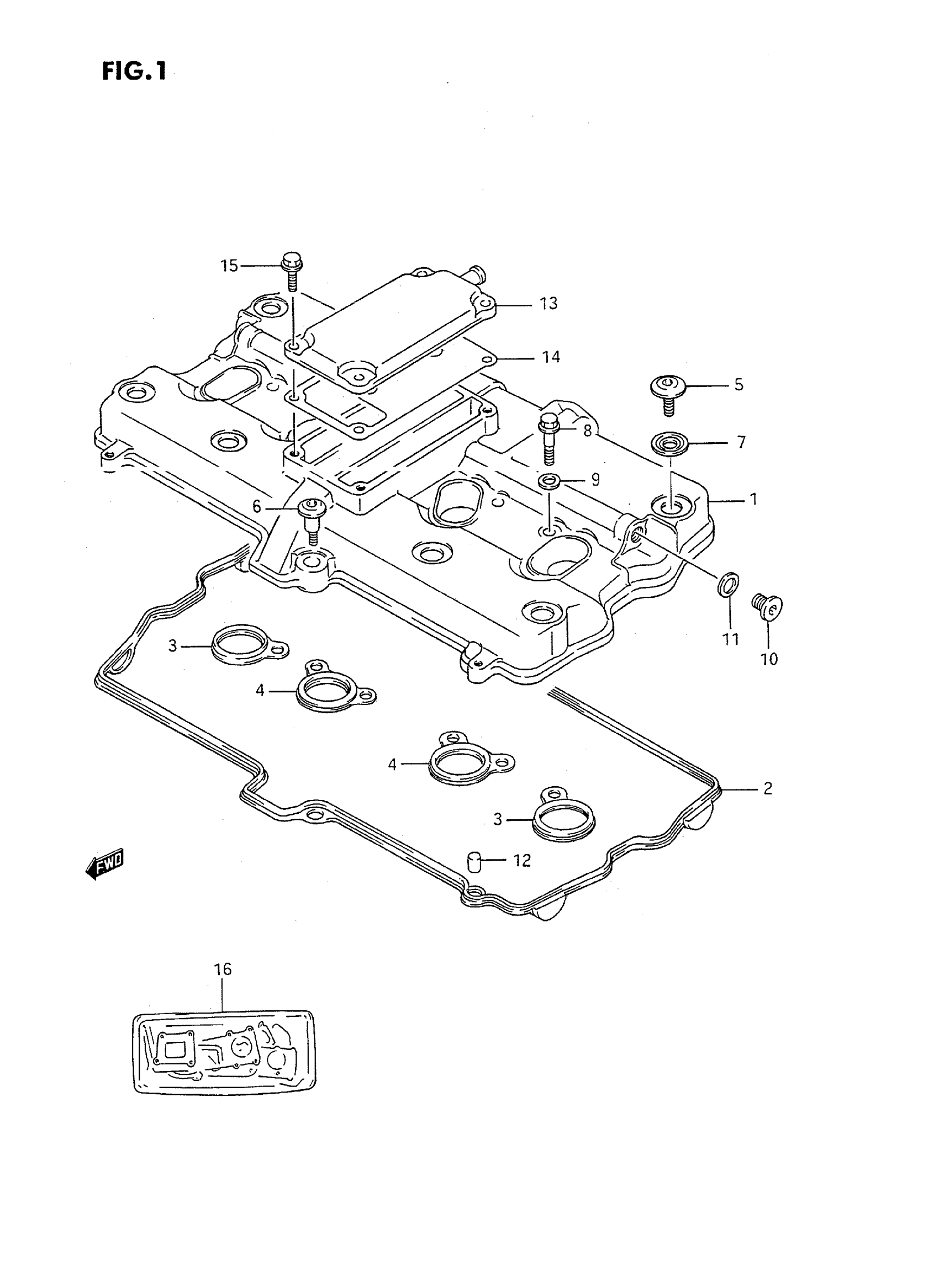

Suzuki GSX600FT (1996) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (BLACK) | MODEL J This part replaces 11171-19C10.

11171-43C01

Unavailable

1

COVER, CYLINDER HEAD (BLACK) | MODEL K This part replaces 11171-43C00.

11171-43C01

Unavailable

1

COVER, CYLINDER HEAD (BLACK) | MODEL M/N/P/R/S/T

11171-43C01

Unavailable

2

GASKET, HEAD COVER NO.1

11173-27A02

$43.16

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.79

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$7.22

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

BOLT (L:19)

09106-07010

$4.64

7

WASHER

09161-11008

$4.49

8

BOLT AND GASKET This part replaces 09360-08009.

11180-27820

Unavailable

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

10

PLUG, HEAD COVER

09248-12004

$7.95

11

GASKET

09168-12002

$1.59

12

PIN

04221-08129

$1.99

13

COVER, BREATHER

11176-31301

Unavailable

14

GASKET, BREATHER COVER | MODEL J/K/L This part replaces 11177-27A00.

11177-27A00-H17

$6.05

14

GASKET, BREATHER COVER | MODEL M/N/P/R/S/T

11177-27A00-H17

$6.05

15

BOLT | ~E.NO.135380 This part replaces 01517-06204.

01550-0620A

$1.97

15

BOLT | E.NO.135381~ This part replaces 01517-06207.

01550-06207

$2.30

15

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

16

GASKET SET | MODEL J/K/L This part replaces 11400-19871.

11401-19858

$463.53

16

GASKET SET | MODEL M/N This part replaces 11400-19874.

11401-19858

$463.53

16

GASKET SET | MODEL P/R/S This part replaces 11401-19851.

11401-19858

$463.53

16

GASKET SET | MODEL T This part replaces 11401-19852.

11401-19858

$463.53
