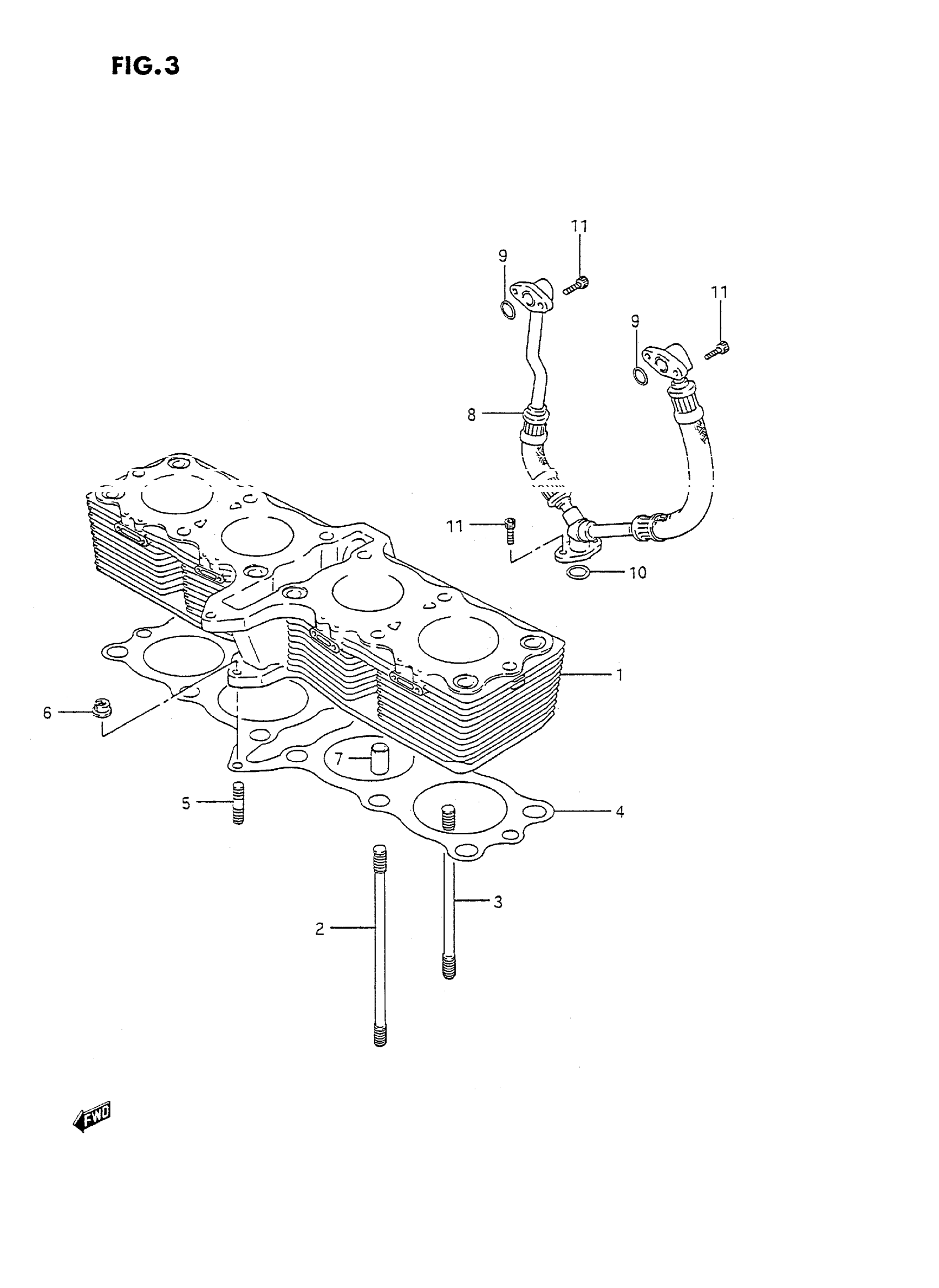

Suzuki GSX600FT (1996) CYLINDER Diagram

#

Description
Price

1

CYLINDER (BLACK) | MODEL J This part replaces 11210-19C01.

11210-43C00

Unavailable

1

CYLINDER (BLACK) | MODEL K/L/M/N/P/R/S/T

11210-43C00

Unavailable

2

STUD BOLT (10X150) This part replaces 09108-10109.

09108-10144

$11.10

3

STUD BOLT (10X143)

09108-10073

$11.73

4

GASKET, CYLINDER This part replaces 11241-27A03.

11241-27A04

$17.36

5

STUD BOLT | MODEL J/K/L/M/N/P This part replaces 01421-06205.

01421-0620A

$1.91

5

STUD BOLT | MODEL R/S/T This part replaces 01421-06203.

01421-0620A

$1.91

6

NUT | MODEL J/K/L/M/N/P This part replaces 08316-16064.

08316-1006B

$2.50

6

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

7

PIN This part replaces 09206-13006.

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER

11328-27A04

Unavailable

9

O RING

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

11

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

$2.39
