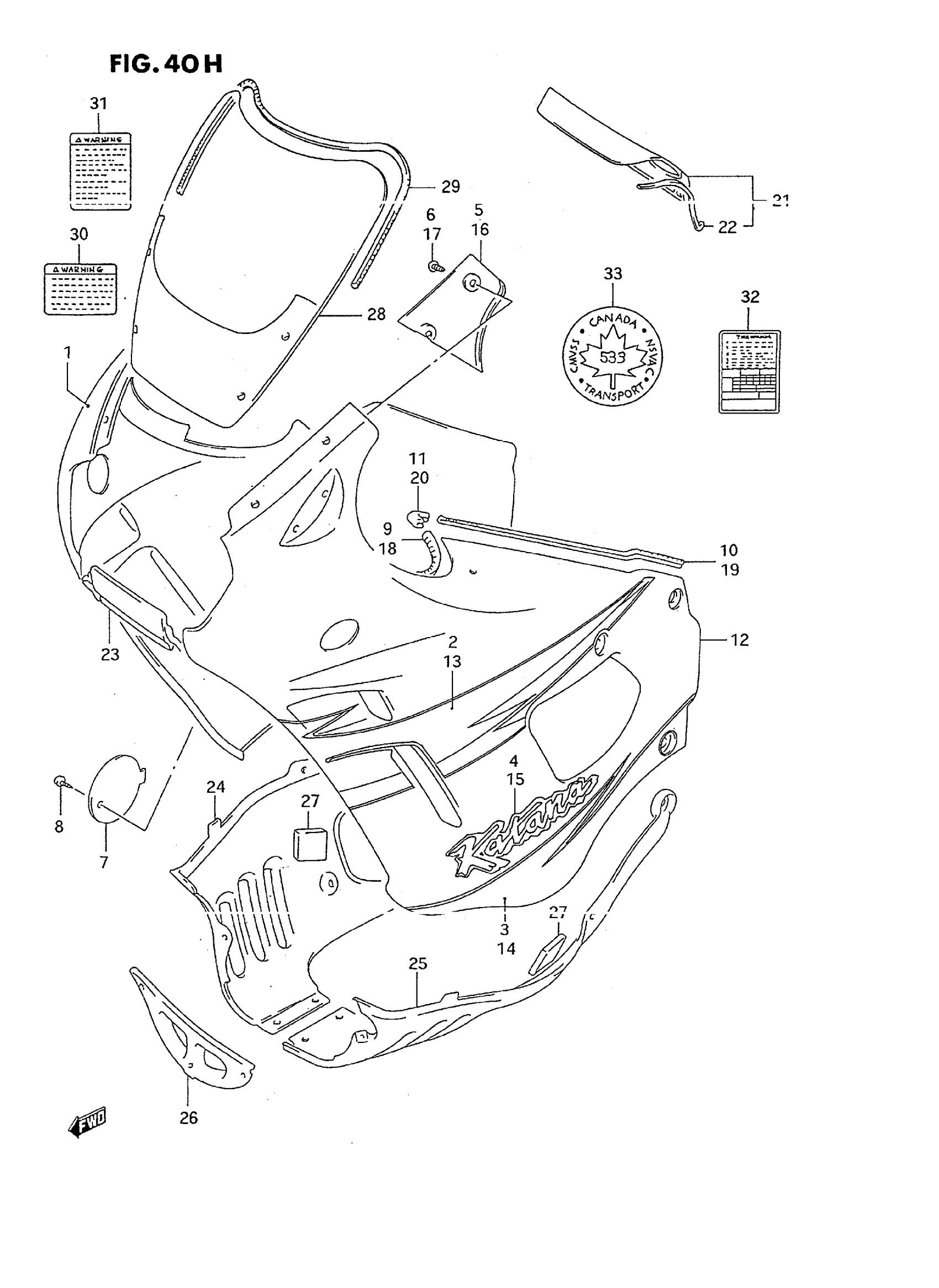

Suzuki GSX600FT (1996) COWLING BODY (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94401-43CJ0-1ZV.

94401-43CJ1-1ZV

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 94401-43CJ0-33J.

94401-43CJ1-33J

Unavailable

2

TAPE, BODY SIDE UPPER | FOR 1ZV

68685-21C10-Z53

Unavailable

2

TAPE, BODY SIDE UPPER | FOR 33J

68685-21C10-Z51

Unavailable

3

TAPE, BODY SIDE RH | FOR 1ZV

68686-21C20-Z54

Unavailable

3

TAPE, BODY SIDE RH | FOR 33J

68686-21C20-Z52

Unavailable

4

EMBLEM

68681-21C20-F2U

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 94433-19C01-1ZV.

94433-19C01

Unavailable

5

COVER, METER RH (BLACK)

94433-19C01-33J

Unavailable

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

LID, OIL (GREEN)

94435-19C01-1ZV

Unavailable

7

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

8

SCREW

09139-06030

$3.70

9

MOLDING | L:1000->300

94631-49310

Unavailable

10

MOLDING

94635-19C00

$8.53

11

JOINT

94438-19C00

Unavailable

12

COVER ASSY,COWL This part replaces 94402-43CJ0-1ZV.

94402-43CJ1-1ZV

Unavailable

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 - 20 This part replaces 94402-43CJ0-33J.

94402-43CJ1-33J

Unavailable

13

TAPE, BODY SIDE UPPER | FOR 1ZV

68695-21C10-Z53

Unavailable

13

TAPE, BODY SIDE UPPER | FOR 33J

68695-21C10-Z51

Unavailable

14

TAPE, BODY SIDE LH | FOR 1ZV

68696-21C20-Z54

Unavailable

14

TAPE, BODY SIDE LH | FOR 33J

68696-21C20-Z52

Unavailable

15

EMBLEM

68681-21C20-F2U

Unavailable

16

COVER, METER LH (GREEN)

94443-19C01-1ZV

Unavailable

16

COVER, METER LH (BLACK)

94443-19C01-33J

Unavailable

17

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

18

MOLDING | L:1000->300

94631-49310

Unavailable

19

MOLDING

94635-19C00

$8.53

20

JOINT

94438-19C00

Unavailable

21

COVER, METER | Includes Item(s) 22

94420-19C02

Unavailable

22

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

23

PANEL, COW CENTER (GREEN)

94421-19C01-1ZV

Unavailable

23

PANEL, COW CENTER (BLACK)

94421-19C01-33J

Unavailable

24

COVER, COWLING UNDER RH (PURP

94471-19C00-1TU

Unavailable

25

COVER, COWLING UNDER LH (PURP

94481-19C00-1TU

Unavailable

26

COVER, COW UNDER FRONT (BLACK

94475-19C01

Unavailable

27

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

28

SCREEN, WINDOW

94610-19C60

Unavailable

29

MOLDING | L:800->600

94631-18D01

Unavailable

30

LABEL, WARNING SAFETY This part replaces 68319-40C10.

68319-33E11

Unavailable

31

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

31

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 68332-19C11.

68332-19C12

Unavailable

33

PLATE, NATIONAL SAFETY

68318-26601

Unavailable

34

REFER TO FIG.41 (I-12) FOR

SPECIAL NOTE

Unavailable
