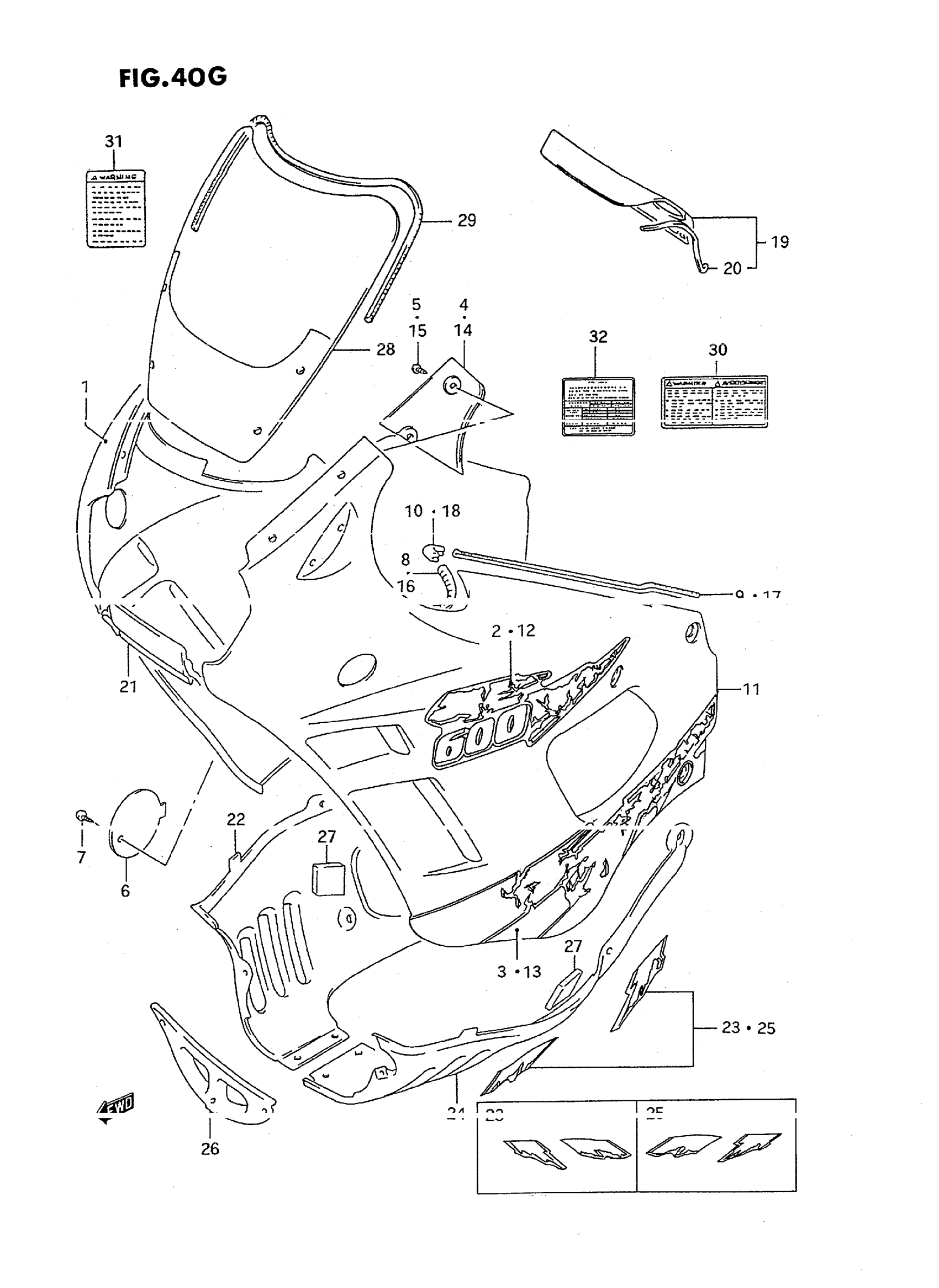

Suzuki GSX600FT (1996) COWLING BODY (MODEL S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 1ZV This part replaces 94401-43CE0-1ZV.

94401-43CE1-1ZV

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR D4A; Includes Item(s) 2 - 10 This part replaces 94401-43CE0-33J.

94401-43CE1-33J

Unavailable

2

TAPE, BODY SIDE UPPER | FOR 1ZV

68685-43C00-D5K

Unavailable

2

TAPE, BODY SIDE UPPER | FOR 33J

68685-43C00-D5J

Unavailable

3

TAPE, BODY SIDE RH | FOR 1ZV

68686-21C00-D5D

Unavailable

3

TAPE, BODY SIDE RH | FOR 33J

68686-21C00-D5C

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 1ZV This part replaces 94433-19C01-1ZV.

94433-19C01

Unavailable

4

COVER, METER RH (BLACK) | FOR 33J

94433-19C01-33J

Unavailable

5

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

6

LID, OIL (GREEN) | FOR 1ZV

94435-19C01-1ZV

Unavailable

6

LID, OIL (BLACK) | FOR 33J

94435-19C01-33J

Unavailable

7

SCREW

09139-06030

$3.70

8

MOLDING | L:1000->300

94631-49310

Unavailable

9

MOLDING

94635-19C00

$8.53

10

JOINT

94438-19C00

Unavailable

11

COVER ASSY,COWL | FOR 1ZV This part replaces 94402-43CE0-1ZV.

94402-43CE1-1ZV

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR D4A; Includes Item(s) 12 - 18 This part replaces 94402-43CE0-33J.

94402-43CE1-33J

Unavailable

12

TAPE, BODY SIDE UPPER | FOR 1ZV

68695-43C00-D5K

Unavailable

12

TAPE, BODY SIDE UPPER | FOR 33J

68695-43C00-D5J

Unavailable

13

TAPE, BODY SIDE LH | FOR 1ZV

68696-21C00-D5D

Unavailable

13

TAPE, BODY SIDE LH | FOR 33J

68696-21C00-D5C

Unavailable

14

COVER, METER LH (GREEN) | FOR 1ZV

94443-19C01-1ZV

Unavailable

14

COVER, METER LH (BLACK) | FOR 33J

94443-19C01-33J

Unavailable

15

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

16

MOLDING | L:1000->300

94631-49310

Unavailable

17

MOLDING

94635-19C00

$8.53

18

JOINT

94438-19C00

Unavailable

19

COVER, METER | Includes Item(s) 20

94420-19C02

Unavailable

20

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

21

PANEL, COW CENTER (RED) | FOR 1ZV

94421-19C01-1ZV

Unavailable

21

PANEL, COW CENTER (BLACK) | FOR D4A

94421-19C01-33J

Unavailable

22

COVER, COWLING UNDER RH (BLUE | FOR 1ZV

94470-21C00-34R

Unavailable

22

COVER, COWLING UNDER RH (PURP | FOR DA; Includes Item(s) 23 - 23

94470-21C00-Y22

Unavailable

23

TAPE SET, UNDER RH | FOR 34R

68180-21C00-D5D

Unavailable

23

TAPE SET, UNDER RH | FOR Y22

68180-21C00-D5C

Unavailable

24

COVER, COWLING UNDER LH (BLUE | FOR 1ZV

94480-21C00-34R

Unavailable

24

COVER, COWLING UNDER LH (PURP | FOR DA; Includes Item(s) 25 - 25

94480-21C00-Y22

Unavailable

25

TAPE SET, UNDER LH | FOR 34R

68190-21C00-D5D

Unavailable

25

TAPE SET, UNDER LH | FOR Y22

68190-21C00-D5C

Unavailable

26

COVER, COW UNDER FRONT (BLACK

94475-19C01

Unavailable

27

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

28

SCREEN, WINDOW

94610-19C60

Unavailable

29

MOLDING | L:800->600

94631-18D01

Unavailable

30

LABEL, WARNING SAFETY This part replaces 68319-40C10.

68319-33E11

Unavailable

31

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

31

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 68332-19C10.

68332-19C12

Unavailable

33

COLOR: D4A = 33J(BLACK),

SPECIAL NOTE

Unavailable
