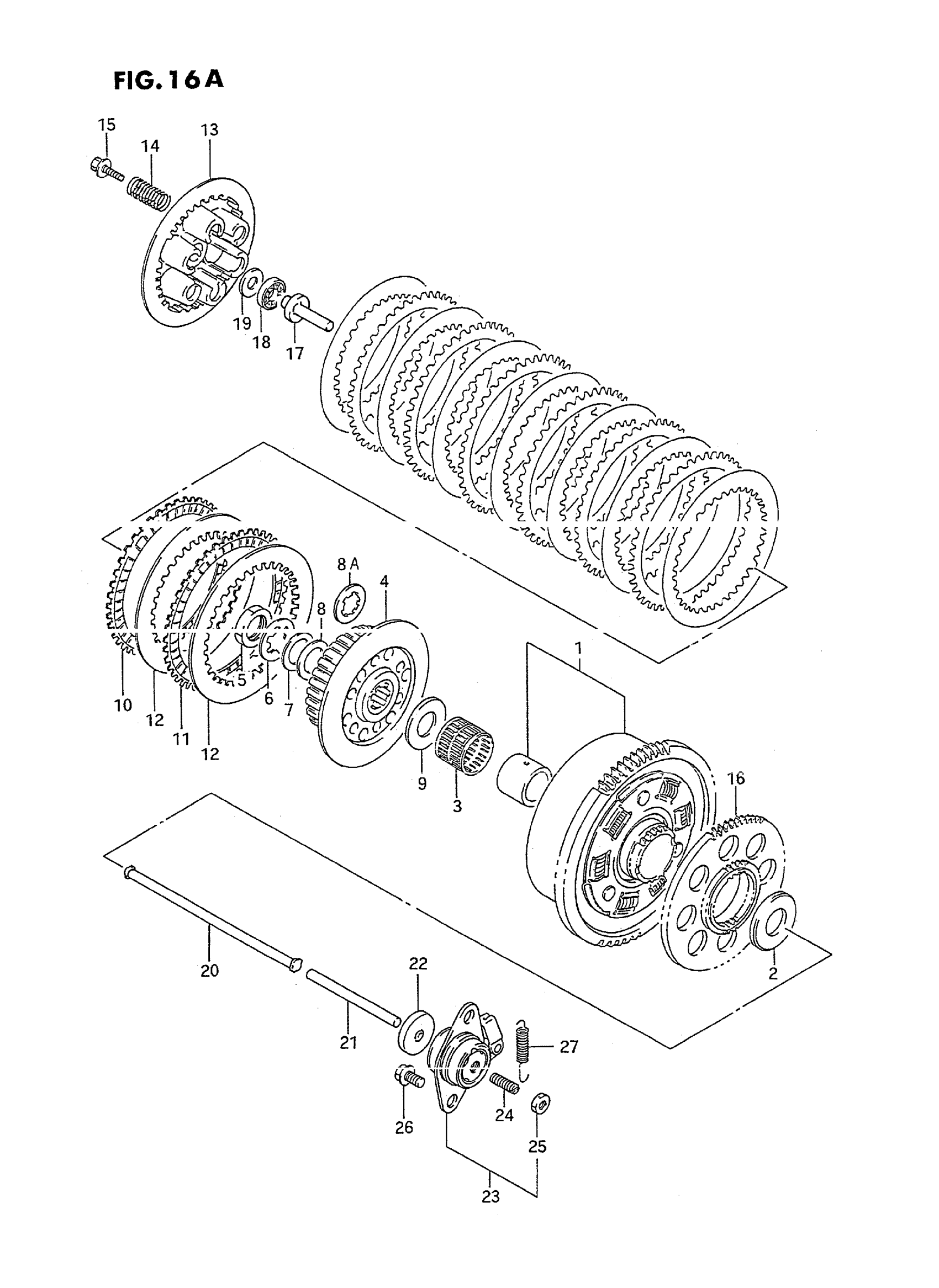

Suzuki GSX600FT (1996) CLUTCH (MODEL N/P/R/S/T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 21200-07864.

21200-07867

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T This part replaces 21200-07866.

21200-07867

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE | MODEL N This part replaces 21410-17D00.

21410-17D01

Unavailable

4

HUB, SLEEVE | MODEL P/R/S/T

21410-17D01

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09167-25007

Unavailable

7

WASHER, WAVE

09164-24006

$3.76

8

SHIM (T:0.50) | MODEL N This part replaces 08221-25365.

09181-25186

$3.93

8A

WASHER | MODEL P/R/S

09167-25024

Unavailable

9

.WASHER (25X50X2.5)

09160-25056

$11.61

10

PLATE, DRIVE (T:2.2)

21441-20C00

$34.67

11

PLATE, DRIVE,NO.2

21442-17C00

Unavailable

12

PLATE, DRIVEN (T:1.6)

21451-17C00

$11.44

13

DISC, PRESSURE | MODEL N This part replaces 21462-17D00.

21462-17E01

Unavailable

13

DISC, PRESSURE | MODEL P/R/S This part replaces 21462-17D01.

21462-17E01

Unavailable

13

DISC, PRESSURE | MODEL T

21462-17E01

Unavailable

14

SPRING

09440-20020

$8.18

15

BOLT (6X25)

09116-06150

$2.59

16

GEAR, GENERATOR (NT:34/64) | MODEL J/K/L/M/N/P This part replaces 22721-17D00.

22721-17D02

Unavailable

16

GEAR, GENERATOR (NT:34/64) | MODEL R/S/T This part replaces 22721-17D01.

22721-17D02

Unavailable

17

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$23.92

18

BEARING (15X28X2)

09263-15003

$8.29

19

WASHER, CLUTCH PUSH | MODEL J/K/L/M/N/P This part replaces 09160-15015.

09160-15045

$3.89

19

WASHER (15.5X28X1) | MODEL R/S/T

09160-15045

$3.89

20

ROD, PUSH RH

23110-20C00

$20.76

21

ROD, PUSH LH

23111-31301

$13.36

22

OIL SEAL

09285-06015

$7.98

23

SCREW ASSY, RELEASE | Includes Item(s) 24 - 25

23200-31300

Unavailable

24

SCREW

09134-06010

$3.12

25

.NUT

08310-00067

$2.13

26

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06167.

01550-06167

$2.30

26

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

$1.97

27

SPRING

09443-07038

$2.91
