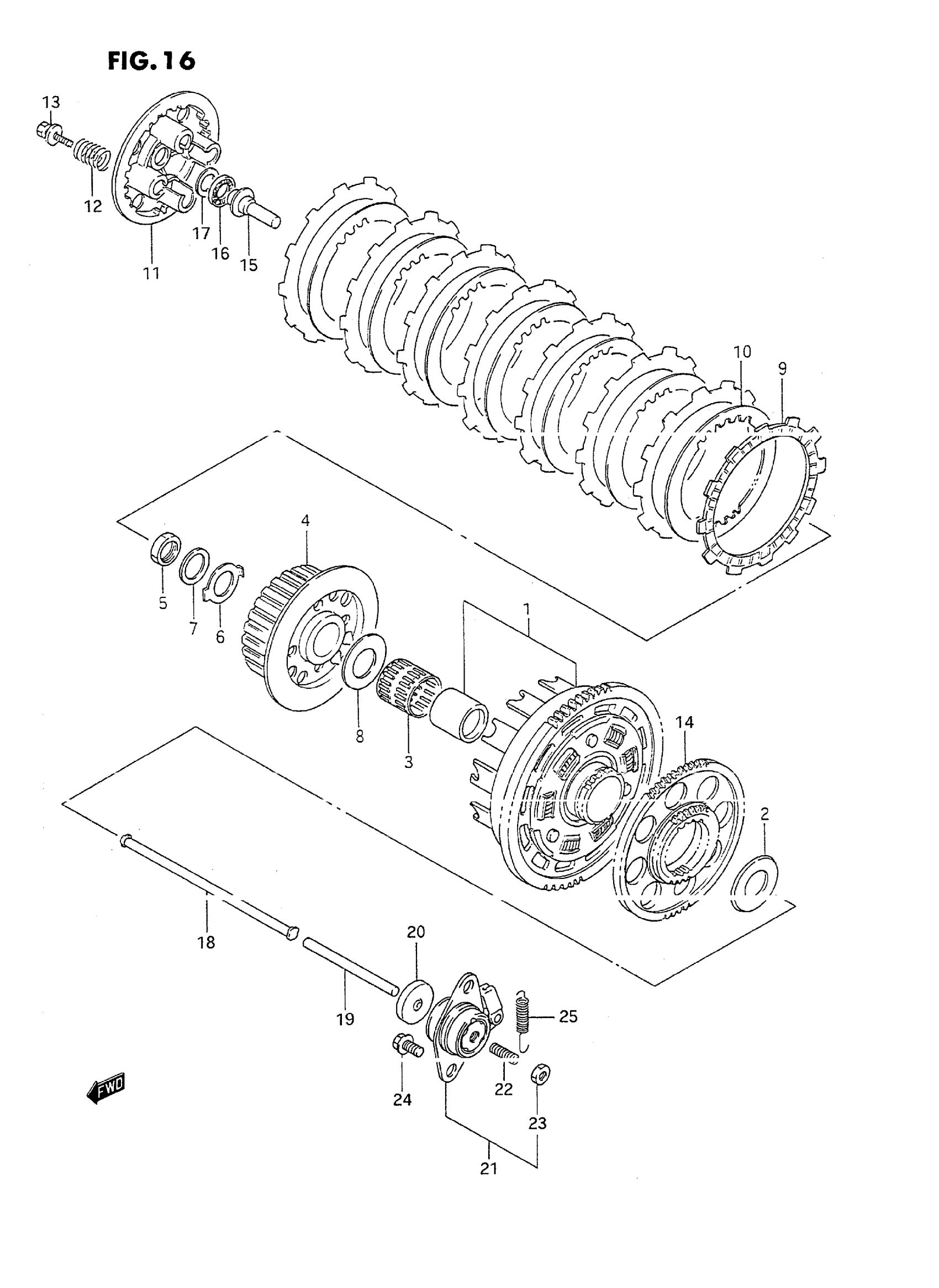

Suzuki GSX600FT (1996) CLUTCH (MODEL J/K/L/M) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:88) | MODEL J/K/L This part replaces 21200-19812.

21200-19813

Unavailable

1

GEAR, PRIMARY DRIVEN (NT:88) | MODEL M

21200-19813

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE

21410-27A02

$140.97

5

NUT

09140-22008

$7.35

6

WASHER

09169-22005

Unavailable

7

WASHER (22.2X35X2) This part replaces 09164-22006.

09164-22007

$7.35

8

.WASHER (25X50X2.5)

09160-25056

$11.61

9

PLATE, DRIVE

21441-37400

$18.13

10

PLATE, DRIVEN

21451-05A00

$9.83

11

DISC, PRESSURE

21462-27A00

$57.67

12

SPRING

09440-20016

$5.24

13

BOLT (6X16) This part replaces 09116-06016.

09116-06168

$2.50

14

GEAR, GENERATOR (NT:34/64) This part replaces 22721-19C01.

22721-17D02

Unavailable

15

PIECE, PUSH

23121-27A00

Unavailable

16

BEARING (15X28X2)

09263-15003

$8.29

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

18

ROD, CLUTCH PUSH,RH | ->23110-20C00 This part replaces 23110-19C00.

23110-20C00

$20.76

19

ROD, PUSH LH

23111-31301

$13.36

20

OIL SEAL

09285-06015

$7.98

21

SCREW ASSY, RELEASE | Includes Item(s) 22 - 23

23200-31300

Unavailable

22

SCREW

09134-06010

$3.12

23

.NUT This part replaces 08310-22067.

08310-00067

$2.13

24

BOLT

01550-06167

$2.30

25

SPRING

09443-07038

$2.91

26

REFER TO FIG.16A(D-7) FOR

SPECIAL NOTE

Unavailable
