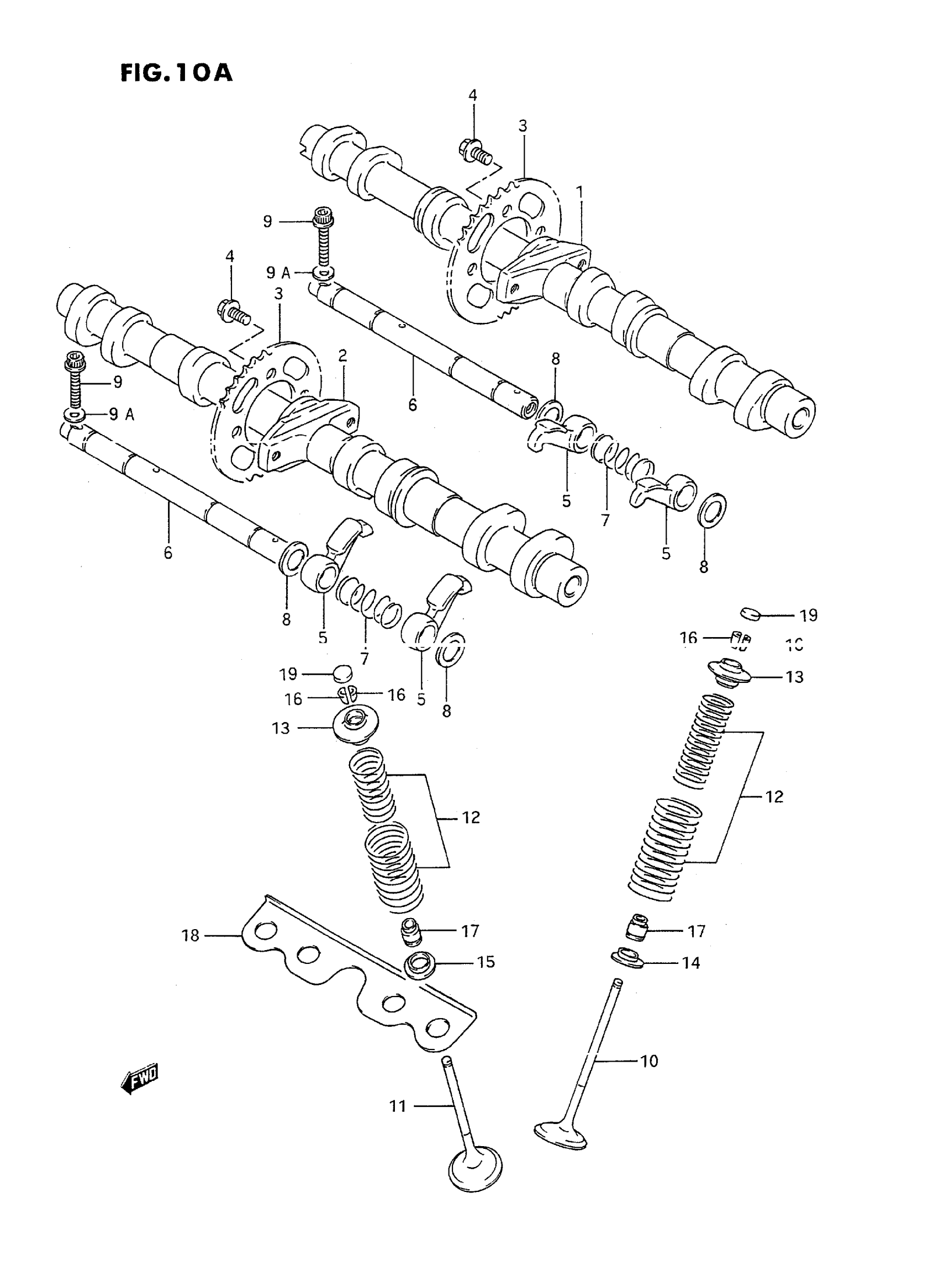

Suzuki GSX600FT (1996) CAM SHAFT / VALVE (MODEL N/P/R/S/T) Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-19E00

Unavailable

2

CAMSHAFT,EXHAUS This part replaces 12721-19E00.

12721-19E01

Unavailable

3

SPROCKET, CAM SHAFT | MODEL N/P/R/S

12741-27A00

Unavailable

3

SPROCKET, CAM SHAFT | MODEL T

12741-26E00

Unavailable

4

BOLT

09103-07001

$2.43

5

ARM, VALVE LOCKER

12841-33C02

Unavailable

6

SHAFT, VALVE LOCKER ARM

12861-19E00

Unavailable

7

SPRING This part replaces 09440-14019.

09440-14044

Unavailable

8

WASHER

08212-12183

Unavailable

9

BOLT, CENTER | MODEL N/P This part replaces 07120-06255.

07120-0625A

$2.50

9

BOLT, CENTER | MODEL R/S/T This part replaces 07120-06253.

07120-0625A

$2.50

9A

.WASHER | MODEL R/S/T This part replaces 08322-01063.

08322-0106B

$2.26

10

VALVE, INTAKE

12911-19E00

Unavailable

11

VALVE, EXHAUST

12912-19E00

Unavailable

12

SPRING SET, VALVE

12920-41C00

Unavailable

13

RETAINER, VALVE SPRING | MODEL N/P/R This part replaces 12931-41C00.

12931-41C01

Unavailable

13

RETAINER, VALVE SPRING | MODEL S/T

12931-41C01

Unavailable

14

SEAT,VALVE SPRING

12933-81400

$5.17

15

SEAT, SPRING EXHAUST

12934-27A01

$5.36

16

COTTER, VALVE

12932-27A00

$2.26

17

OIL SEAL

09289-05011

$6.32

18

PLATE, VALVE SEAT | MODEL N/P This part replaces 11137-19C00.

11137-19C01

Unavailable

18

PLATE, VALVE SEAT | MODEL R/S/T

11137-19C01

Unavailable

19

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

19

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

19

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

19

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

19

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

19

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

19

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

19

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

19

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

19

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

19

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

19

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

19

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

19

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

19

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

19

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

19

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

19

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

19

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

19

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

19

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

19

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

19

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

19

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

19

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

20

SHIM SET, TAPPET | OPT NOT SHOWN.21; Includes Item(s) 21

12800-41810

$1,138.37

21

CASE, TAPPET SHIM

99000-69471

Unavailable
