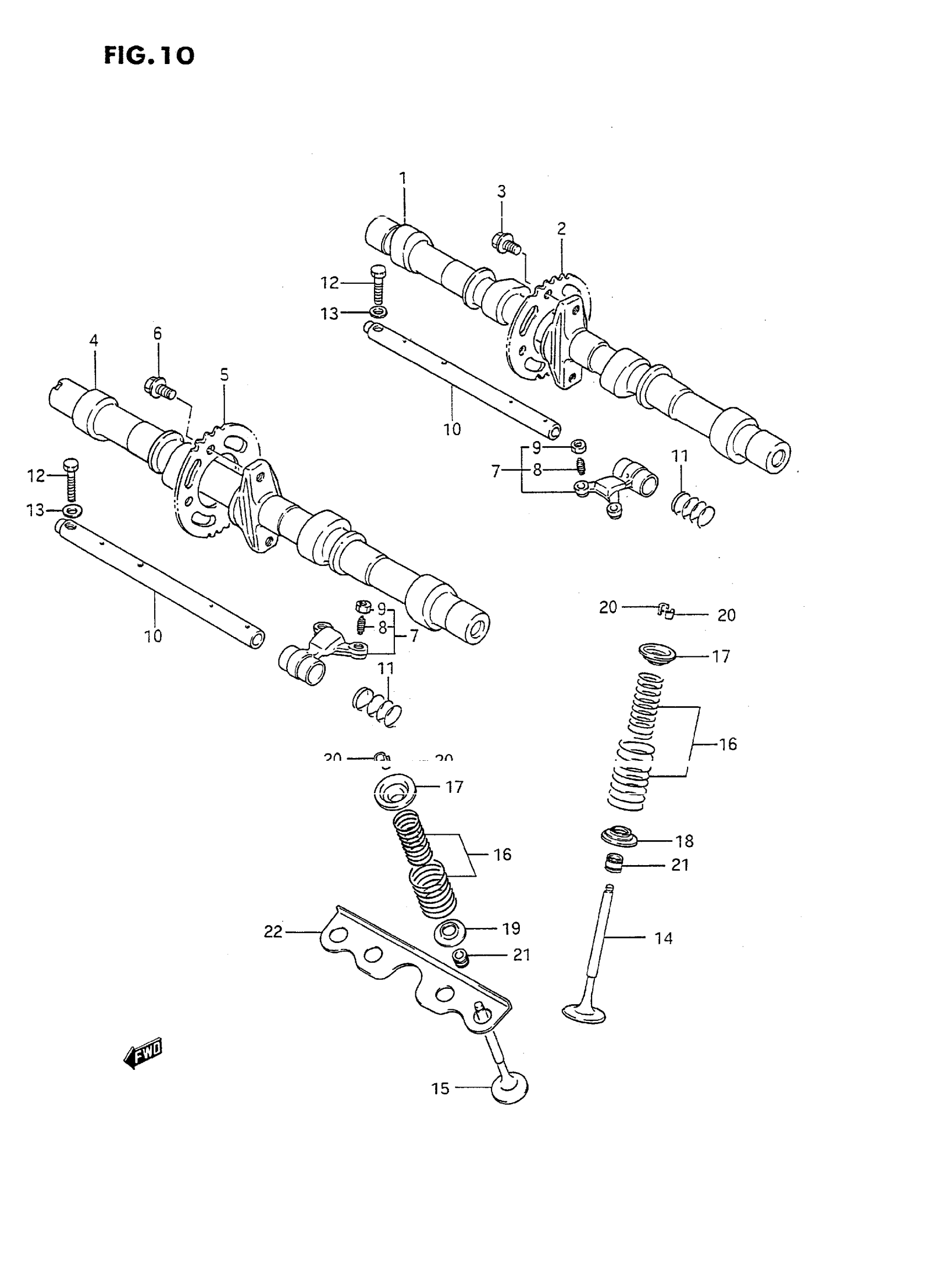

Suzuki GSX600FT (1996) CAM SHAFT - VALVE (MODEL J/K/L/M) Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | MODEL J/K<-12711-19C01

12711-19C70

Unavailable

1

CAM SHAFT, INTAKE | MODEL L<-12711-06B03

12711-06B90

Unavailable

1

CAM SHAFT, INTAKE | MODEL M

12711-19C90

Unavailable

2

SPROCKET, CAM SHAFT

12741-27A00

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-28A10

Unavailable

5

SPROCKET, CAM SHAFT

12741-27A00

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

12840-19C00

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-19C00

Unavailable

15

VALVE, EXHAUST

12912-19C00

Unavailable

16

SPRING SET, VALVE

12920-27A01

Unavailable

17

RETAINER, SPRING

12931-27A01

$8.42

18

SEAT,VALVE SPRING | MODEL J/K This part replaces 12933-27A00.

12933-81400

$5.17

18

SEAT,VALVE SPRING | MODEL L/M

12933-81400

$5.17

19

SEAT, SPRING EXHAUST This part replaces 12934-27A00.

12934-27A01

$5.36

20

COTTER, VALVE

12932-27A00

$2.26

21

OIL SEAL

09289-05011

$6.32

22

PLATE, VALVE SEAT This part replaces 11137-19C00.

11137-19C01

Unavailable

23

REFER TO FIG.10A(C-3) FOR

SPECIAL NOTE

Unavailable
