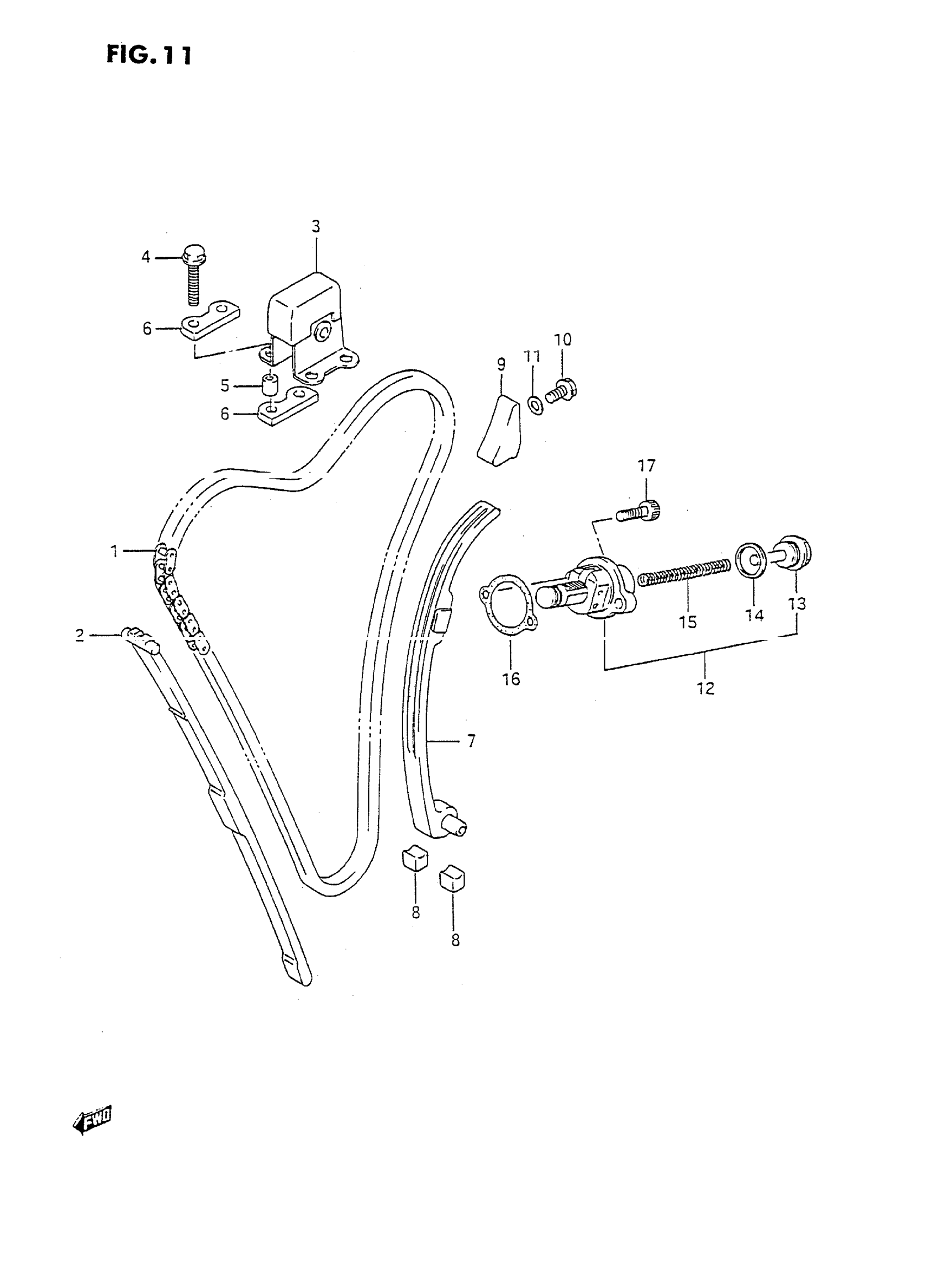

Suzuki GSX600FT (1996) CAM CHAIN (MODEL J/K/L/M/N/P/R/S) Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | MODEL J/K/L/M This part replaces 12760-27A01.

12760-17D01

Unavailable

1

CHAIN, CAM SHAFT DRIVE | MODEL N/P/R This part replaces 12760-17D00.

12760-17D01

Unavailable

1

CHAIN, CAM SHAFT DRIVE | MODEL S

12760-17D01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-27A00

Unavailable

3

IDLER, CAM CHAIN | MODEL J/K/L/M/N/P/R This part replaces 12780-27A03.

12780-40C00

Unavailable

3

IDLER, CAM CHAIN | MODEL S

12780-40C00

Unavailable

4

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

4

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

5

SPACER This part replaces 09180-06167.

09180-06286

$2.50

6

CUSHION

12788-48B01

Unavailable

7

TENSIONER, CAM CHAIN

12810-27A00

Unavailable

8

CUSHION

12814-34200

$5.58

9

GUIDE, CAM CHAIN NO.2

12791-27A00

$14.20

10

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

10

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

$1.97

11

WASHER

09168-06023

$2.35

12

ADJUSTER ASSY, TENSIONER | Includes Item(s) 13 - 15

12830-27A08

Unavailable

13

PLUG

12834-27A00

Unavailable

14

GASKET

12832-27A00

$6.91

15

SPRING

12833-27A00

Unavailable

16

GASKET, ADJUDTER

12837-27A10

$3.85

17

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$3.04

17

BOLT | MODEL R/S This part replaces 07130-06253.

07130-0625B

$3.04

18

REFER TO FIG.11A(C-6) FOR

SPECIAL NOTE

Unavailable
