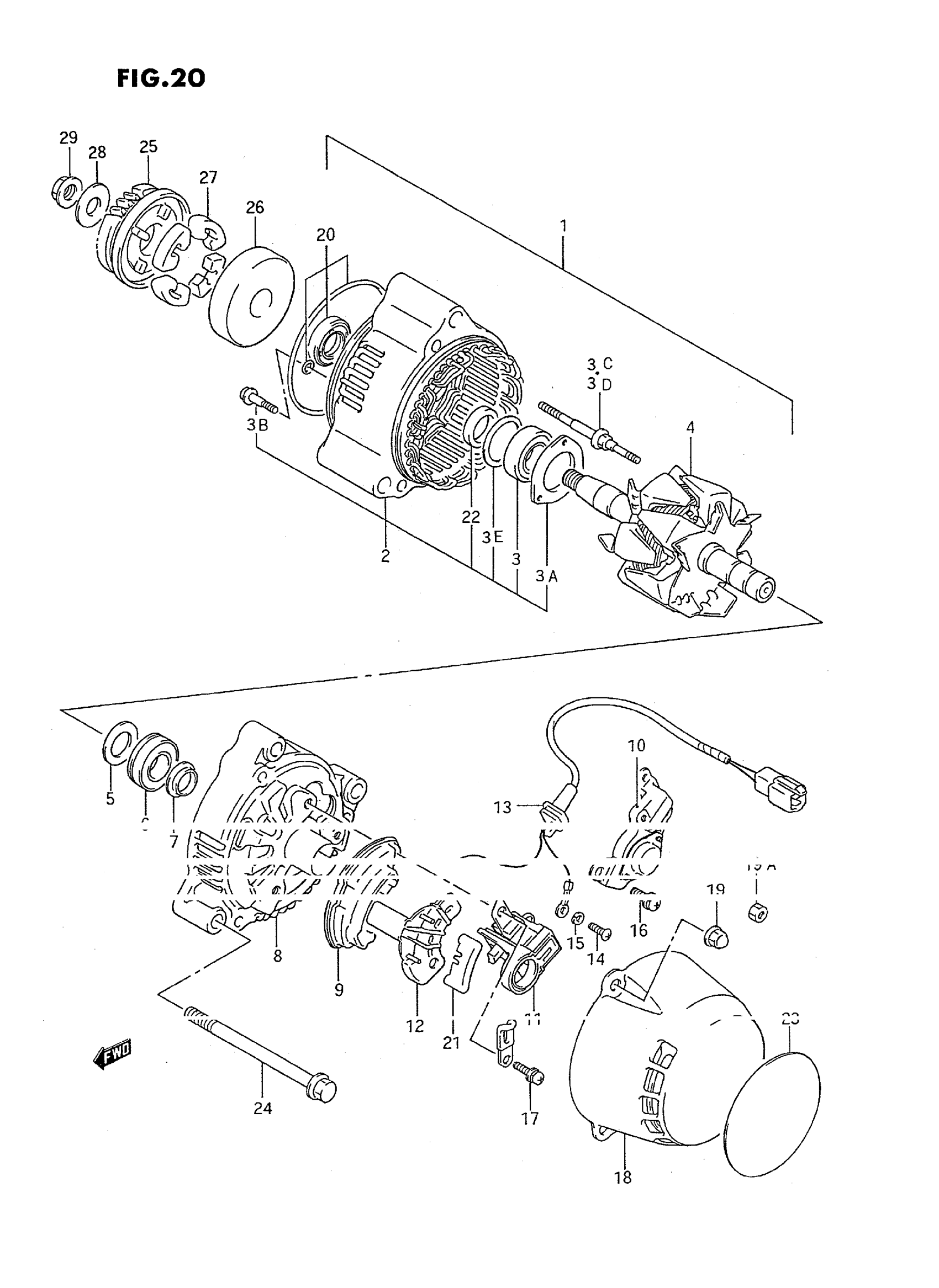

Suzuki GSX600FT (1996) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL J/K/L/M/N This part replaces 31400-48B03.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL P This part replaces 31400-19C02.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL R/S This part replaces 31400-17C03.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL T; Includes Item(s) 2 - 23

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

3A

RETAINER

31585-48B00

Unavailable

3B

SCREW, BEARING RETAINER

31586-48B00

Unavailable

3C

STUD BOLT | YELLOW

31587-85250

Unavailable

3D

STUD BOLT | BLACK This part replaces 31587-19C00.

31587-85250

Unavailable

3E

COVER, BEARING

31613-48B00

Unavailable

4

ROTOR ASSY | MODEL J/K/L/M This part replaces 31710-48B03.

31710-48B04

Unavailable

4

ROTOR ASSY | MODEL T

31710-48B04

Unavailable

5

COVER (1)

31613-82610

Unavailable

6

BEARING

31612-48B00

$47.07

7

COVER (2)

31613-27A10

Unavailable

8

FRAME, END

31611-48B00

Unavailable

9

HOLDER, RECTIFIER

31621-27A00

Unavailable

10

REGULATOR

32500-27A00

Unavailable

11

HOLDER, BRUSH

31656-48B00

Unavailable

12

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

$6.88

13

LEAD WIRE

31480-48B00

Unavailable

14

SCREW | MODEL J/K This part replaces 02112-04086.

02112-0408A

$1.49

14

SCREW | MODEL L/M/N/P This part replaces 31516-85250.

02112-0406B

$1.55

14

SCREW | MODEL R/S/T This part replaces 02112-04063.

02112-0406B

$1.55

15

LOCK WASHER | MODEL J/K This part replaces 08321-21046.

08321-0104A

$1.84

16

SCREW (5X17)

31688-27A00

Unavailable

17

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

Unavailable

18

COVER

31614-48B00

Unavailable

19

NUT | MODEL J/K/L This part replaces 31692-48B00.

08313-2005A

$2.42

19A

NUT | MODEL M/N/P/R/S/T

08316-16055

Unavailable

20

OIL SEAL SET | MODEL J/K/L/M/N/P/R This part replaces 31780-48B00.

31780-27X50

$53.82

20

OIL SEAL SET | MODEL S/T

31780-27X50

$53.82

21

COVER, RECTIFIER | MODEL J/K/L/M/N/P/R This part replaces 31514-27A00.

31687-17E00

$6.88

21

BUSH | MODEL S/T

31687-17E00

$6.88

22

SPACER

31776-06B00

Unavailable

23

PLATE, ALTERNATOR ABSORBER | MODEL R/S/T This part replaces 31615-17C00.

31615-27E00

Unavailable

24

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-08908.

01550-08907

$5.18

24

BOLT | MODEL R/S/T This part replaces 01550-08903.

01550-0890B

$5.37

25

GEAR, GENERATOR DRIVEN (NT:30) This part replaces 22730-19C01.

22730-19C02

Unavailable

26

HOUSING DAMPER This part replaces 22733-27A04.

22733-27A05

Unavailable

27

DAMPER

21231-06B00

$4.64

28

WASHER

08211-10283

$3.78

29

NUT | MODEL J/K/L/M/N/P This part replaces 08316-26106.

08316-2010B

$3.43

29

NUT | MODEL R/S/T This part replaces 08316-20103.

08316-2010B

$3.43
