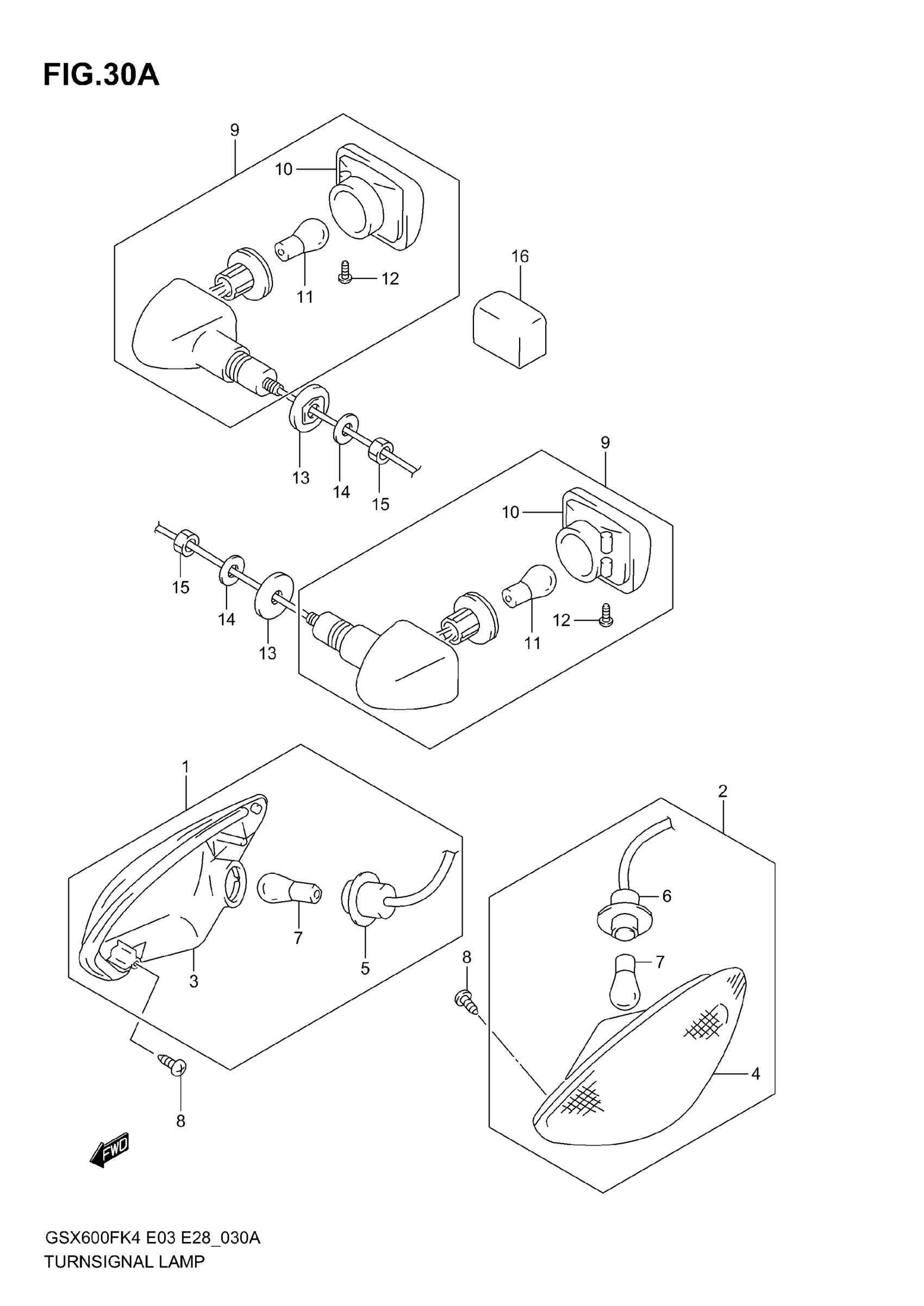

Suzuki GSX600F (2006) TURNSIGNAL LAMP (MODEL K6) Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-08F10

$103.85

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 7

35602-08F10

Unavailable

3

LAMP UNIT, RH

35610-08F10

$70.52

4

LAMP UNIT, LH

35630-08F10

$69.22

5

SOCKET & CORD, RH

35618-08F10

Unavailable

6

SOCKET & CORD, LH

35638-08F10

Unavailable

7

BULB (12V,21W)

09471-12186

$12.66

8

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

9

LAMP ASSY, REAR RH

35603-24F30

$118.48

9

LAMP ASSY, REAR LH | Includes Item(s) 10 - 12

35604-24F30

$131.13

10

LAMP UNIT

35610-24F30

$40.87

11

BULB (12V,21W)

09471-12186

$12.66

12

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

13

SPACER, REAR

35695-17C00

$4.03

14

WASHER, REAR (10.5X30X2.3)

09160-10501

$2.33

15

NUT This part replaces 08310-00103.

08310-0010A

$1.84

16

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
