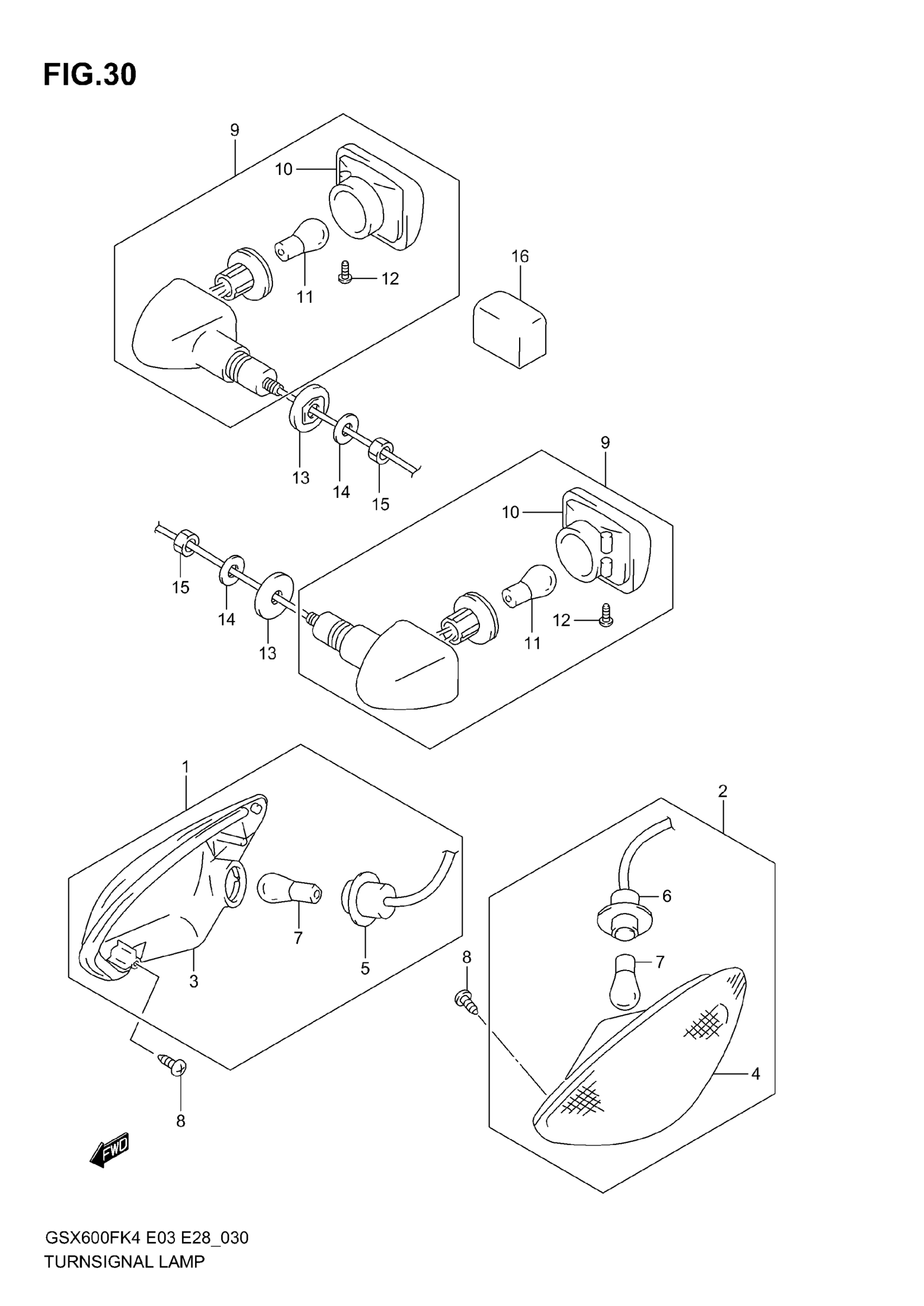

Suzuki GSX600F (2006) TURNSIGNAL LAMP (MODEL K4/K5) Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-08F00

$95.18

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 7

35602-08F00

$95.18

3

LAMP UNIT, RH

35610-08F00

$66.68

4

LAMP UNIT, LH

35630-08F00

$65.45

5

SOCKET & CORD, RH

35618-08F00

Unavailable

6

SOCKET & CORD, LH

35618-08F00

Unavailable

7

BULB (12V,21W)

09471-12045

$2.95

8

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

9

LAMP ASSY, REAR RH

35603-33E30

$125.57

9

LAMP ASSY, REAR LH | Includes Item(s) 10 - 12

35604-33E30

$125.57

10

LAMP UNIT

35610-33E00

$36.97

11

BULB (12V,21W)

09471-12045

$2.95

12

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

13

SPACER, REAR

35695-17C00

$3.69

14

WASHER, REAR (10.5X30X2.3)

09160-10501

$2.33

15

NUT This part replaces 08310-00103.

08310-0010A

$1.86

16

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
