2006 Suzuki GSX600F Starting Motor Diagram

← All diagrams

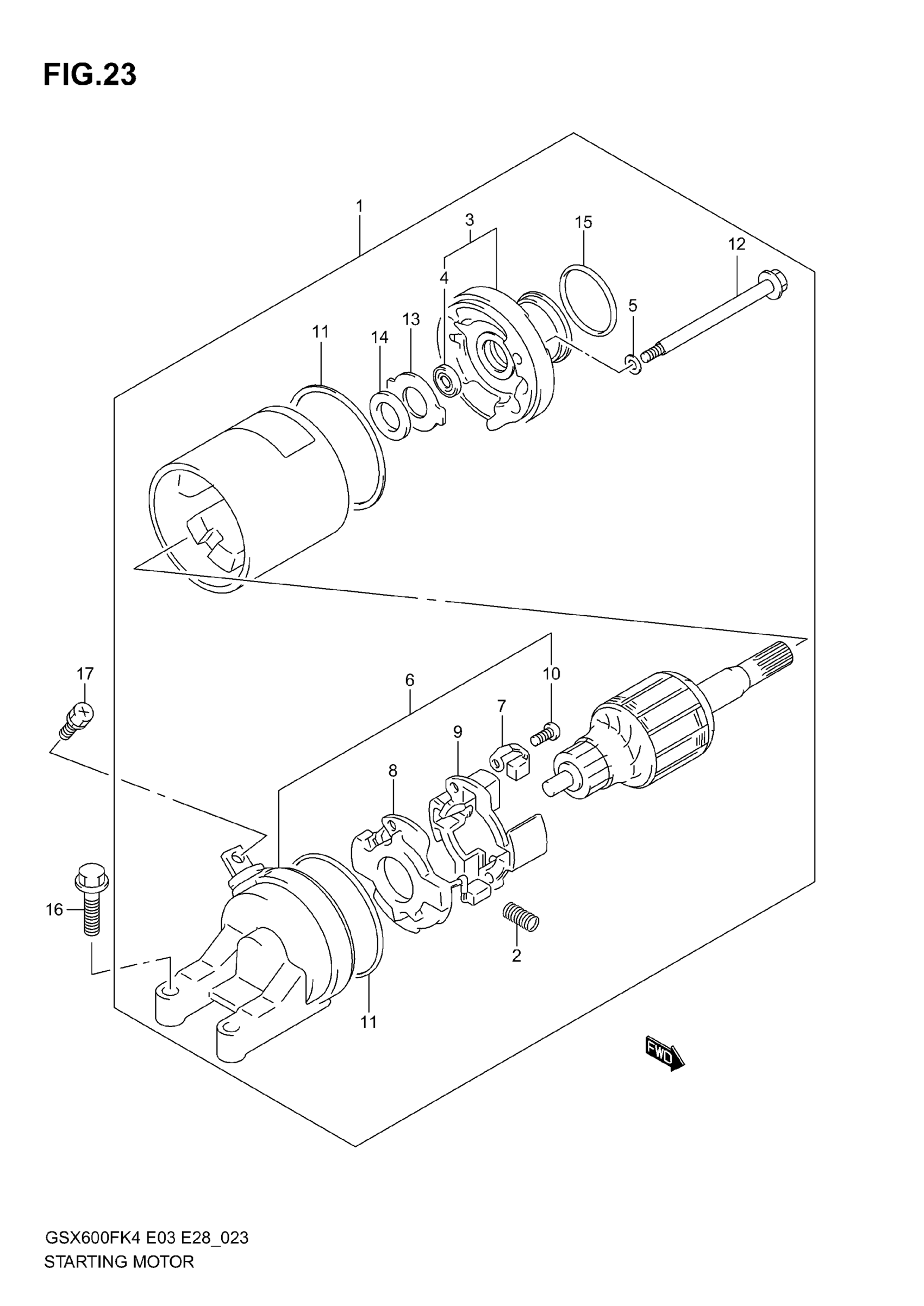

Find the part on the Starting Motor diagram for your 2006 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX600F Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 15

31100-08F00

1
Out of stock

2

SPRING

31135-32C10

4
Out of stock

3

BRACKET

31150-08F00

1
Out of stock

4

OIL SEAL

31153-49210

1
Out of stock

5

O RING

31156-08F00

2
Out of stock

6

FRAME ASSY, COMMUTATOR

31175-08F00

1
Out of stock

7

BRUSH

31132-32C10

2
Out of stock

8

BRUSH SUB ASSY

31130-32C20

1
Out of stock

9

HOLDER, BRUSH

31133-32C10

1
Out of stock

10

SCREW This part replaces 02112-34123.

02112-3412B

2
Out of stock

11

O RING

31264-32C10

2
Out of stock

12

BOLT

31281-32C10

2
Out of stock

13

PLATE, LOCK

31361-32C10

1
Out of stock

14

SHIM, NO.3

31361-38300

1
Out of stock

15

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

16

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

17

SCREW, MOT LEAD (5X8)

09137-05004

1
Out of stock
