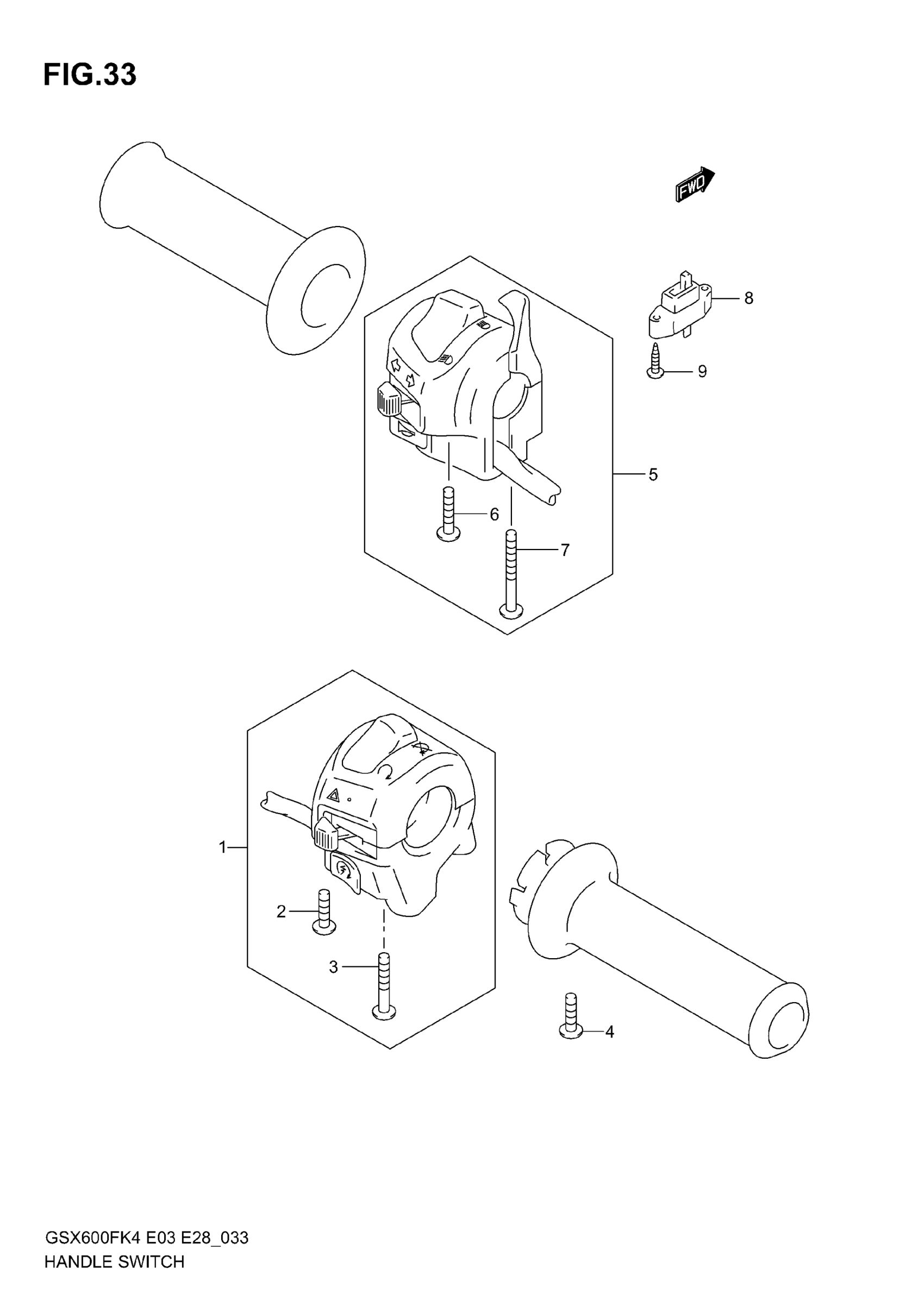

Suzuki GSX600F (2006) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL K4

37200-33E51

$198.48

1

SWITCH ASSY, HANDLE RH | MODEL K5/K6; Includes Item(s) 2 - 3

37200-33E60

$145.43

2

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

3

SCREW This part replaces 02112-05505.

02112-0550B

$2.49

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.46

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6 - 7

37400-26E11

$261.62

6

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

7

.SCREW This part replaces 02112-05453.

02112-0545B

$2.32

8

SWITCH ASSY, CLUTCH

37560-38A00

$17.70

9

SCREW (3X14)

09132-03017

$2.27
