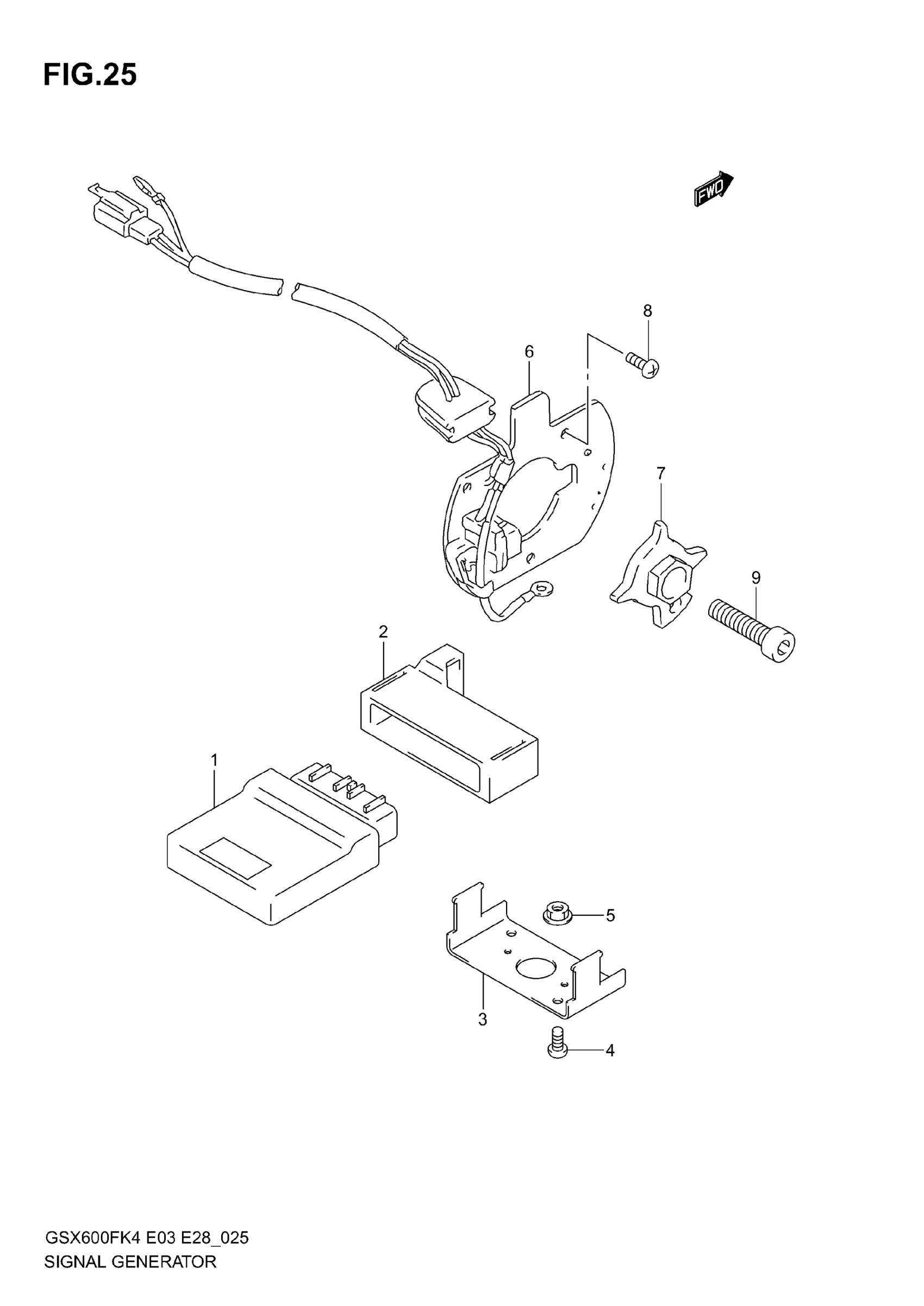

Suzuki GSX600F (2006) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER ASSY

32900-08FK0

Unavailable

2

CUSHION, IGNITER

32980-41F00

Unavailable

3

BRACKET, IGNITER

32933-08F10

Unavailable

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

NUT This part replaces 08316-10053.

08316-1005A

$2.19

6

STATOR,SIGNAL G This part replaces 33110-31F00.

33110-31F01

$323.92

7

ROTOR, SIGNAL GENERATOR

33120-19C20

$198.45

8

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

9

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74
