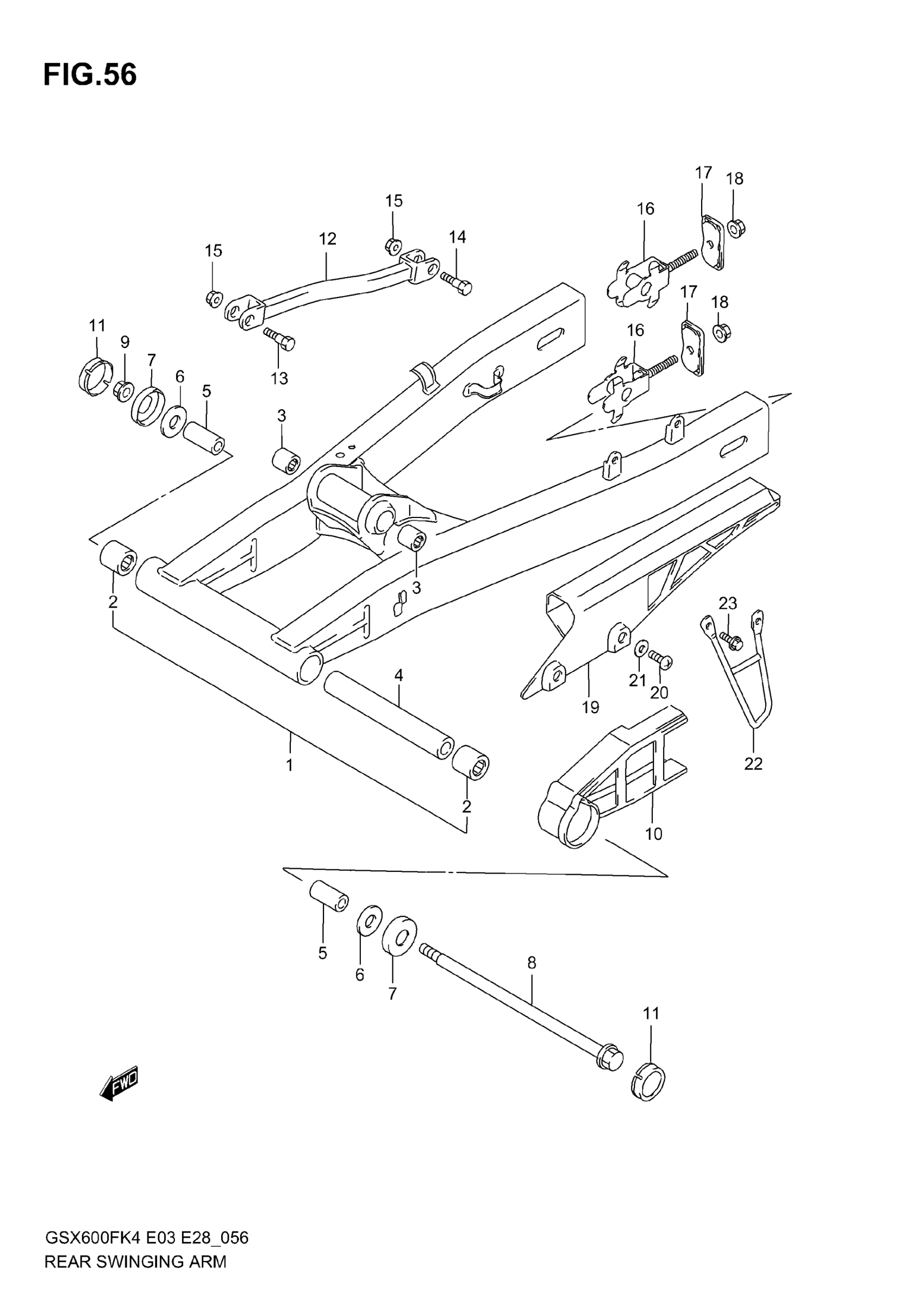

Suzuki GSX600F (2006) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (BLACK) | MODEL K4

61000-08F10-019

Unavailable

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL K5/K6; Includes Item(s) 2 - 3

61000-08F10-13L

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

3

BEARING, ROD (20X27X23.5)

09263-20071

$25.92

4

SPACER, PIVOT CENTER

61282-08F00

Unavailable

5

SPACER, PIVOT

61251-38B00

$19.82

6

THRUST WASHER

08211-16341

$2.39

7

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$9.72

8

SHAFT, PIVOT

61211-08F00

Unavailable

9

NUT This part replaces 08319-31143.

08319-3114B

$12.87

10

BUFFER,CHAIN TO This part replaces 61273-20C00.

61273-20C01

$40.32

11

CAP, PIVOT

61222-43400

$5.24

12

TORQUE LINK, REAR (BLACK)

64310-08F00

Unavailable

13

BOLT, FRONT (10X39)

09111-10051

$6.80

14

BOLT, REAR (10X34)

09100-10187

$3.85

15

NUT

08319-31107

$2.73

16

ADJUSTER, CHAIN

61410-08F00

$41.22

17

PLATE, ADJUSTER GUIDE

61420-08F00

Unavailable

18

NUT This part replaces 08319-31088.

08319-3108A

$2.32

19

CASE, CHAIN

61310-08F00

$91.12

20

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

21

WASHER

09169-06026

$2.20

22

GUARD, CHAIN

61390-08F00

Unavailable

23

BOLT This part replaces 01547-06123.

01547-0612B

$1.49
