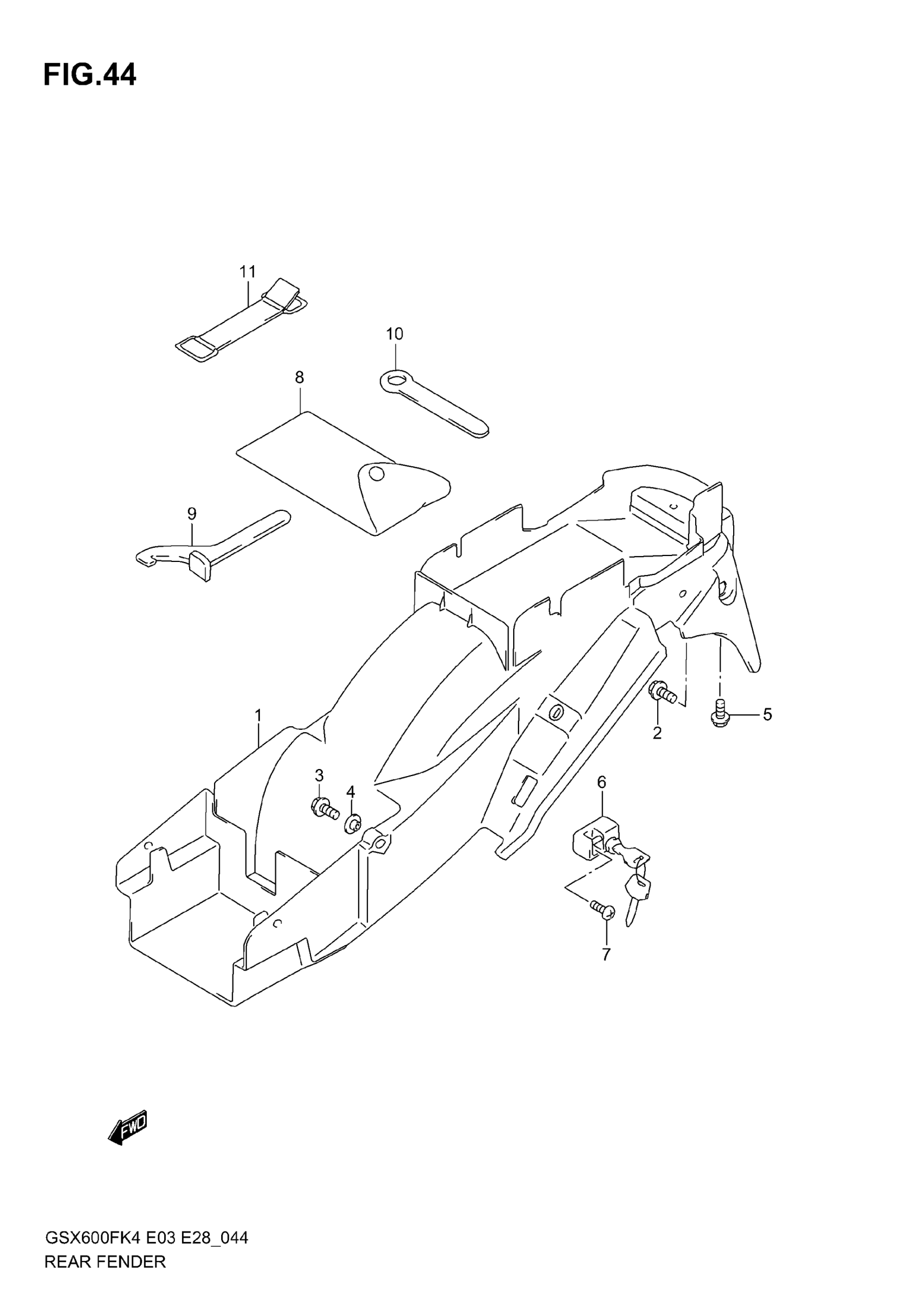

Suzuki GSX600F (2006) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLACK) | MODEL K4/K5

63111-08FB0-291

Unavailable

1

FENDER, REAR (BLACK) | MODEL K6

63111-08FB0-5PK

Unavailable

2

BOLT

09113-06001

$2.73

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

WASHER

09169-06071

$2.50

5

BOLT, CENTER

09116-06165

$3.03

6

LOCK SET HELMET This part replaces 95700-44820.

95700-41821

$152.77

7

SCREW

09139-06089

$3.03

8

TOOL ASSY

09800-21036

Unavailable

9

CLAMP, WRENCH

09822-00005

$15.16

10

HEXAGON SPANNER, 3

09816-00102

$3.30

11

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

$8.33
