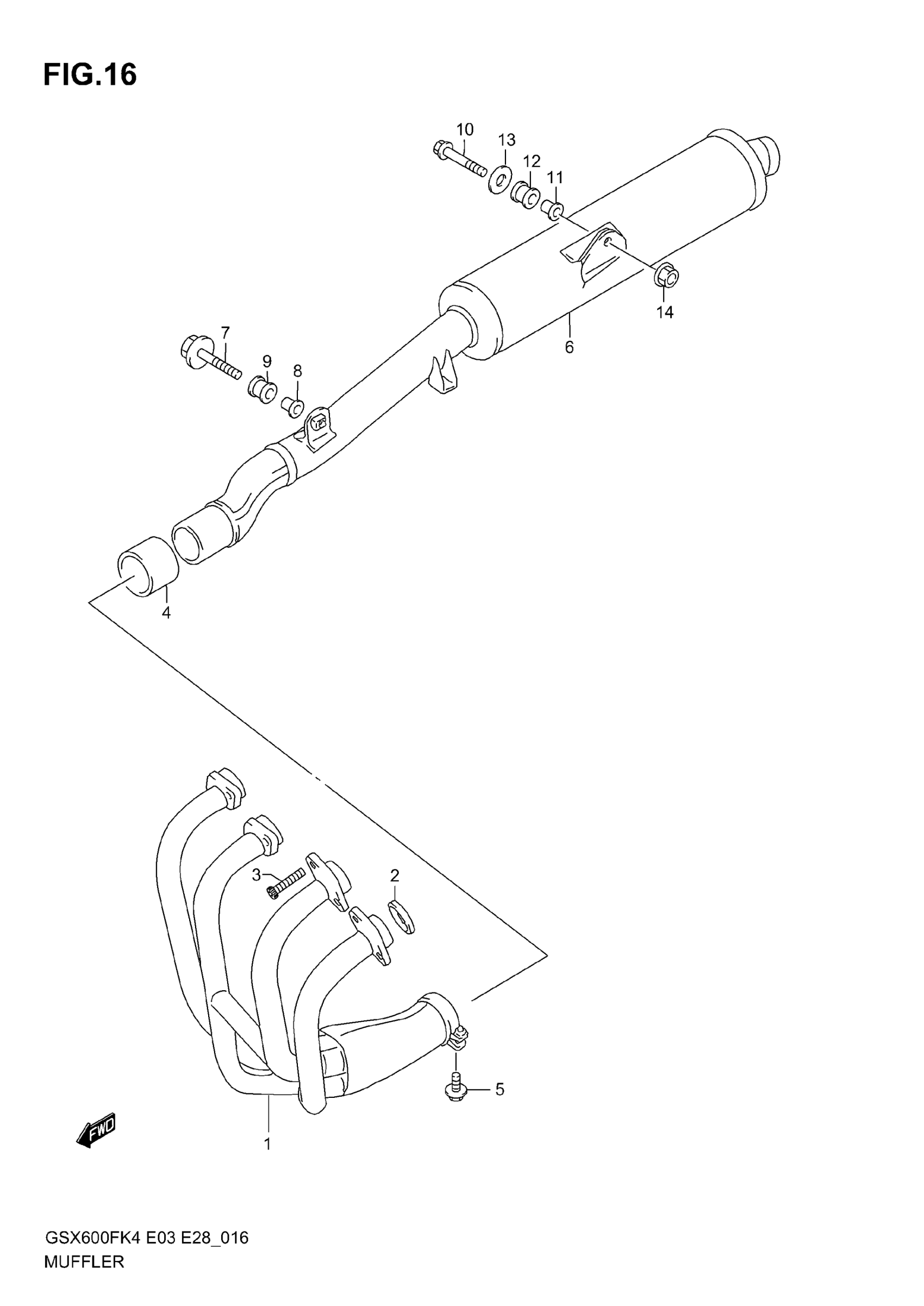

Suzuki GSX600F (2006) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-19E20

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

CONNECTOR, MUFFLER

14771-27E00

$42.03

5

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

6

MUFFLER | MODEL K4/K5 E3,E28

14305-19E30

Unavailable

6

MUFFLER | MODEL K4/K5 E33 MODEL K6

14305-19E20

Unavailable

7

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

8

SPACER, MUF SPRT, FR (L:24.2)

09180-08152

$5.83

9

CUSHION, MUF SPRT, FR

09320-12048

$5.11

10

BOLT, MUF SPRT, RR

09103-08358

$3.42

11

SPACER, MUF SPRT, RR (L:25.5)

09180-08156

$6.70

12

CUSHION, MUF SPRT, RR

09320-12049

$10.68

13

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97
