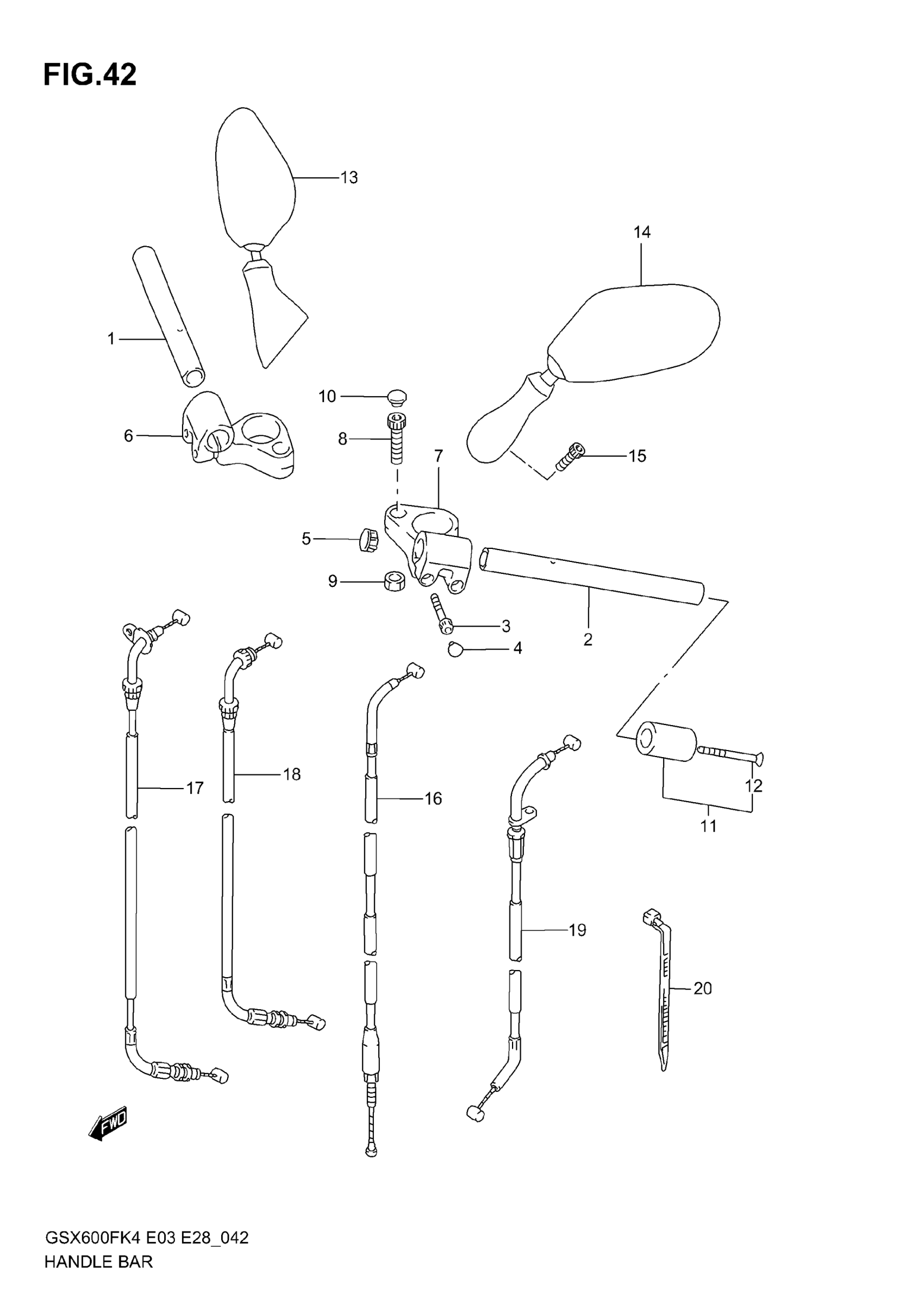

Suzuki GSX600F (2006) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-08F01

$64.82

2

HANDLEBAR, LH

56150-08F01

$64.82

3

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

4

CAP

09250-05009

$2.19

5

CAP

57215-33400

$5.50

6

HOLDER, RH

56211-19C12

Unavailable

7

HOLDER, LH

56221-19C12

Unavailable

8

BOLT

09106-10023

$5.78

9

NUT

08319-31107

$2.73

10

CAP

09250-08010

$2.33

11

BALANCER SET, HANDLEBAR | Includes Item(s) 12

56200-04821

$45.92

12

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

13

MIRROR ASSY, REAR VIEW, RH | MODEL K4/K5 This part replaces 56500-08F00.

56500-08F10

$327.50

13

MIRROR ASSY, REAR VIEW, RH | MODEL K6

56500-08F10

$327.50

14

MIRROR ASSY,REA | MODEL K4/K5 This part replaces 56600-08F00.

56600-08F11

$252.08

14

MIRROR ASSY,REA | MODEL K6 This part replaces 56600-08F10.

56600-08F11

$252.08

15

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

16

CABLE ASSY,CLUT This part replaces 58200-08F00.

58200-08F01

$25.72

17

CABLE ASSY, THROTTLE NO.1

58300-08F00

$36.08

18

CABLE ASSY, THROTTLE NO.2

58300-08F10

$34.58

19

CABLE, STARTER

58410-08F20

$37.63

20

CLAMP

09407-11401

$2.63

20

CLAMP

09407-25401

$4.66
