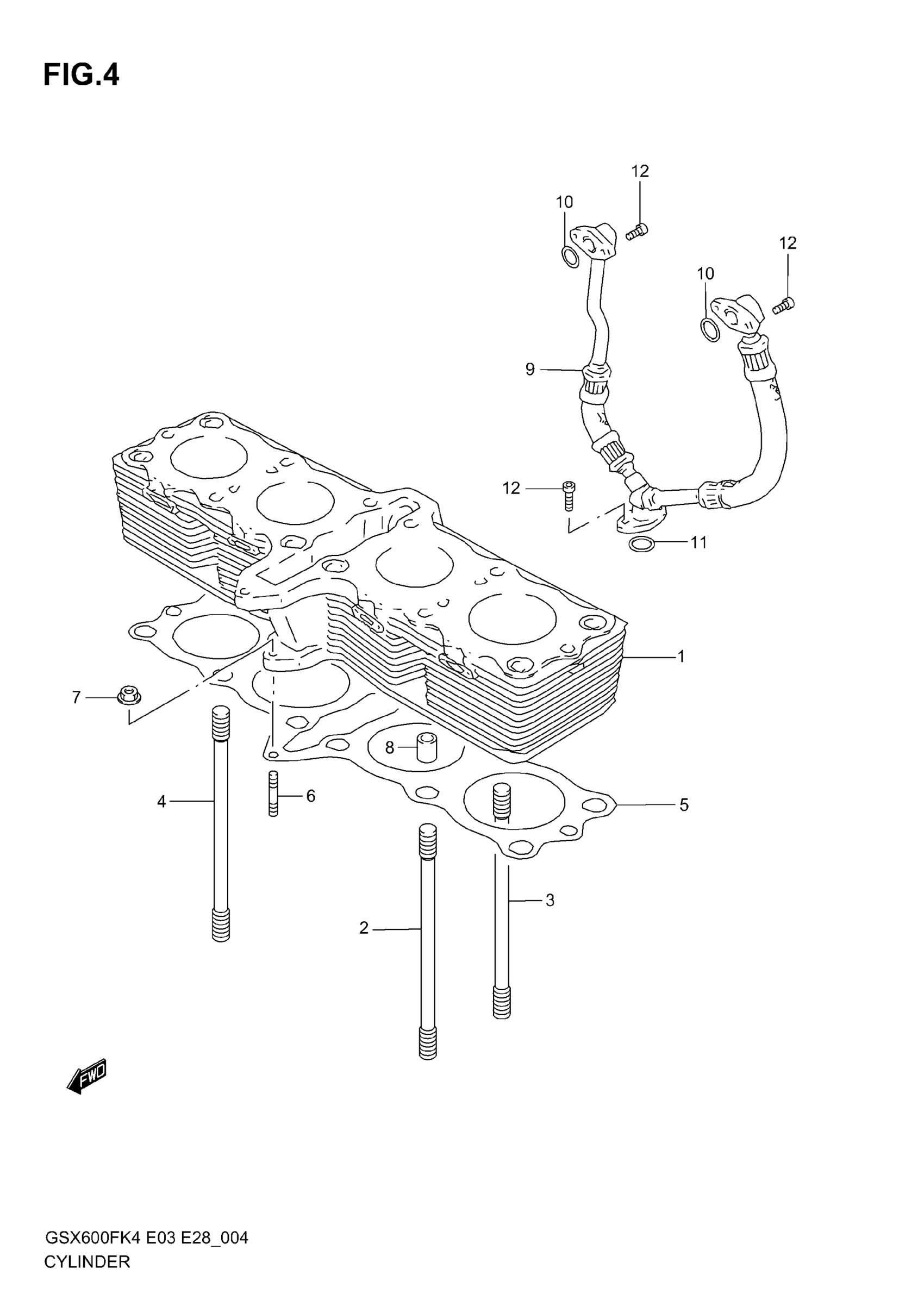

Suzuki GSX600F (2006) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL K4/K5 E3,E28

11210-26E00-0F0

Unavailable

1

CYLINDER | MODEL K4/K5 E33 MODEL K6

11210-26E10-0F0

Unavailable

2

STUD BOLT (10X150) | ?09108-10109

09108-10144

$11.10

3

STUD BOLT (10X143)

09108-10073

$11.73

4

STUD BOLT (10X150)

09108-10144

$11.10

5

GASKET, CYLINDER

11241-27A04

$17.36

6

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

PIN

09206-13017

$7.61

9

HOSE, OIL HEAD COOLER

11328-27A04

Unavailable

10

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

11

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

12

BOLT This part replaces 07130-06163.

07130-0616B

$2.39
