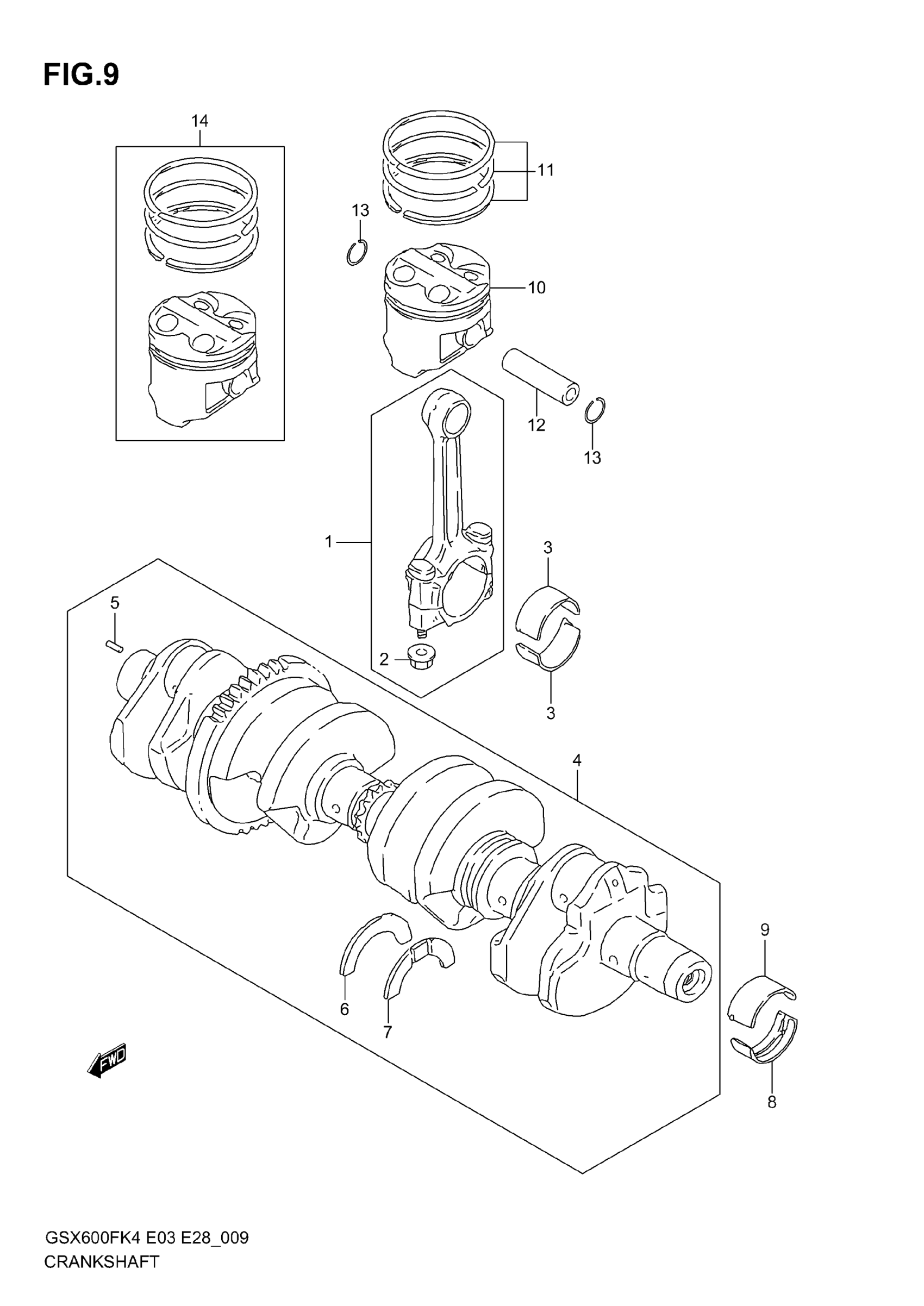

Suzuki GSX600F (2006) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-27A14

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN)

12164-26E00-0A0

Unavailable

3

BEARING, CRANK PIN (BLACK)

12164-26E00-0B0

$13.90

3

BEARING, CRANK PIN (BROWN)

12164-26E00-0C0

$13.90

3

BEARING, CRANK PIN (YELLOW)

12164-26E00-0D0

$13.90

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-26831

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-43414

$10.07

7

BEARING, THRUST LH (RED)

12228-43411

Unavailable

7

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

7

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

7

BEARING, THRUST LH (GREEN)

12228-43414

$10.07

7

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

7

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

$10.59

8

BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0

$12.00

8

BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0

$12.00

8

BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0

$12.45

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

$10.59

9

BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0

$12.45

9

BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0

$12.00

9

BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0

$12.45

10

PISTON

12111-19C30-0F0

Unavailable

11

RING SET, PISTON

12140-19C20

$54.18

12

PIN, PISTON

12151-19C02

$18.02

13

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90

14

PISTON SET (OS:0.5) | OPT

12100-19C30-050

Unavailable
