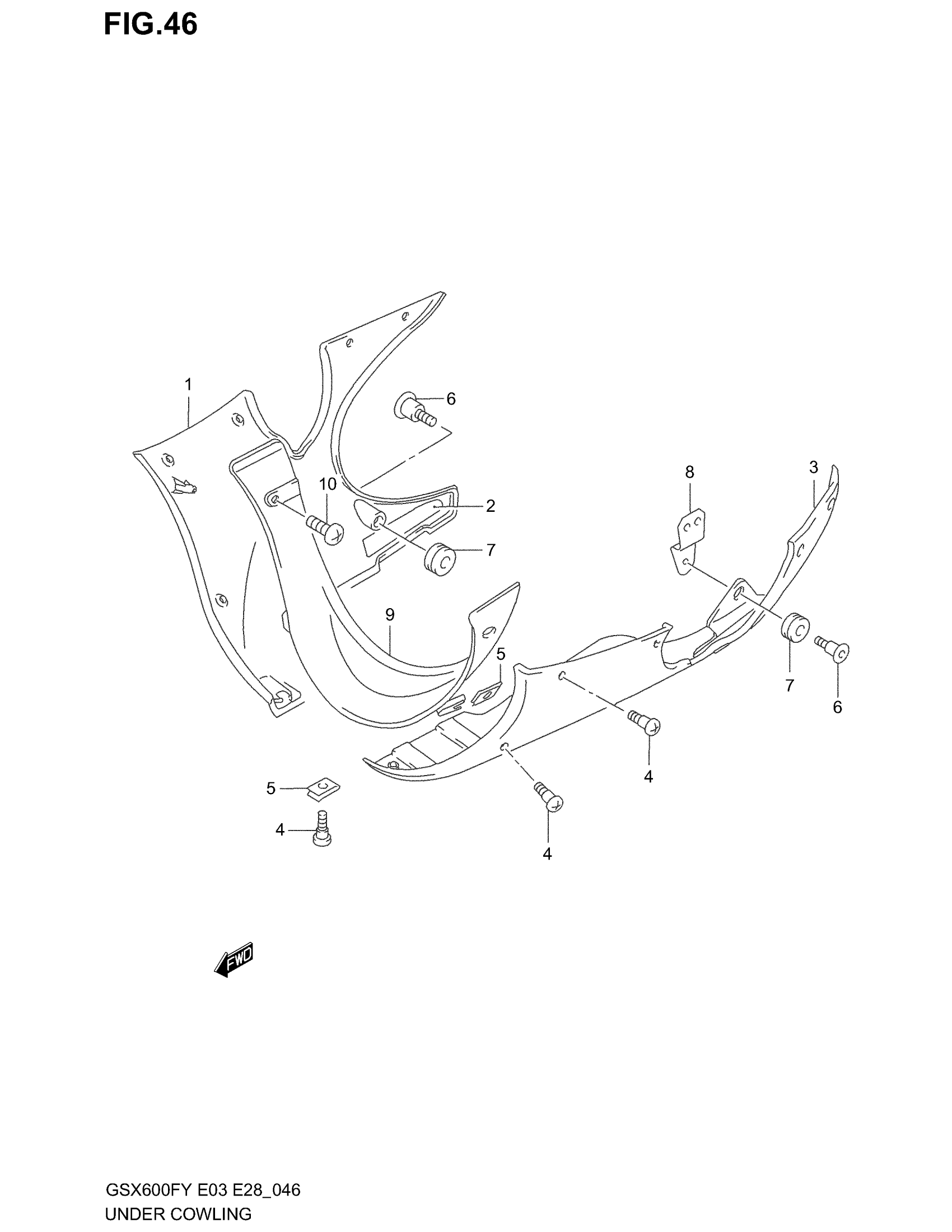

Suzuki GSX600F (2003) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (GRAY) | MODEL W/X

94470-08F00-Y4P

Unavailable

1

COWLING, UNDER RH (BLACK) | MODEL Y/K1

94470-08F00-Y7L

Unavailable

1

COWLING, UNDER RH (SILVER) | MODEL K2

94470-08F00-YD8

Unavailable

1

COWLING, UNDER RH (BLUE) | MODEL K3

94470-08F00-YC2

Unavailable

1

COWLING COMP,UN | MODEL K3; Includes Item(s) 2 This part replaces 94470-08F00-YU9.

94470-08F00

$183.60

2

SHIELD, NO.1 RH

94472-08F00

Unavailable

3

COWLING, UNDER LH (GRAY) | MODEL W/X

94481-08F00-Y4P

Unavailable

3

COWLING, UNDER LH (BLACK) | MODEL Y/K1

94481-08F00-Y7L

Unavailable

3

COWLING, UNDER LH (SILVER) | MODEL K2

94481-08F00-YD8

Unavailable

3

COWLING, UNDER LH (BLUE) | MODEL K3

94481-08F00-YC2

Unavailable

3

COWLING, UNDER LH (YELLOW) | MODEL K3

94481-08F00-YU9

Unavailable

4

SCREW

09139-05054

$4.24

5

NUT COWL | MODEL W/X This part replaces 94484-32B00.

94484-24F00

$4.03

5

NUT COWL | MODEL Y/K1/K2/K3

94484-24F00

$4.03

6

SCREW | MODEL W/X/Y/K1/K2 This part replaces 09139-06087.

09139-06126

$4.04

6

SCREW, CENTER | MODEL K3

09139-06126

$4.04

7

CUSHION

09320-09016

$1.97

8

BRACKET, LOWER LH

94570-08F00

Unavailable

9

COWLING, UNDER CENTER

94475-08F00

Unavailable

10

SCREW This part replaces 03541-05123.

03541-0512A

$1.49
