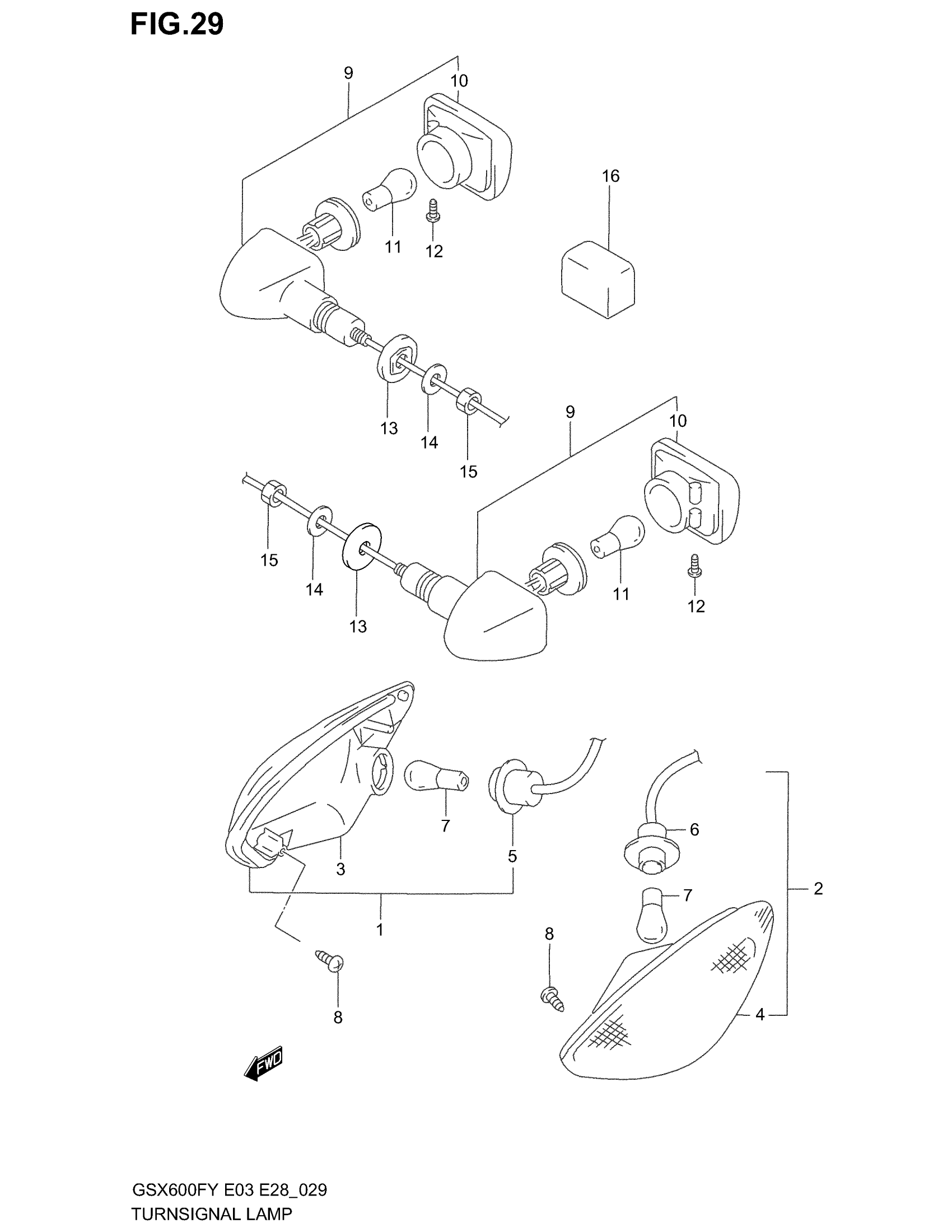

Suzuki GSX600F (2003) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-08F00

$84.73

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 7

35602-08F00

$84.73

3

LAMP UNIT, RH

35610-08F00

$59.08

4

LAMP UNIT, LH

35630-08F00

$58.00

5

SOCKET & CORD, RH

35618-08F00

Unavailable

6

SOCKET & CORD, LH

35618-08F00

Unavailable

7

BULB (12V,21W)

09471-12045

$3.27

8

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

9

LAMP ASSY, REAR RH

35603-33E30

$111.78

9

LAMP ASSY, REAR LH | Includes Item(s) 10 - 12

35604-33E30

$111.78

10

LAMP UNIT

35610-33E00

$32.75

11

BULB (12V,21W)

09471-12045

$3.27

12

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

13

SPACER, REAR

35695-17C00

$4.03

14

WASHER, REAR (10.5X30X2.3)

09160-10501

$2.33

15

NUT This part replaces 08310-00103.

08310-0010A

$1.84

16

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
