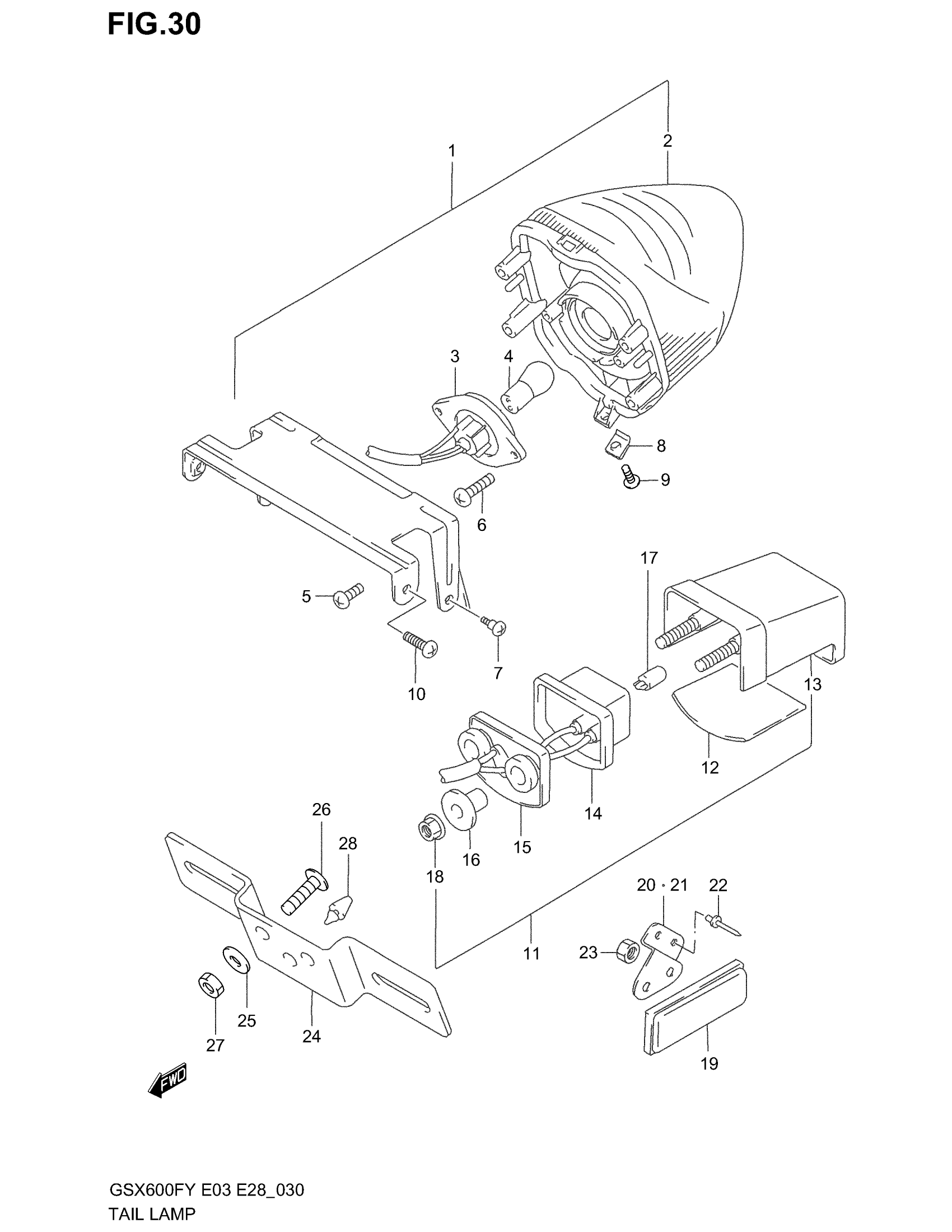

Suzuki GSX600F (2003) TAIL LAMP (MODEL W/X/Y/K1/K2) Diagram

#

Description
Price

1

LAMP ASSY, REAR | Includes Item(s) 2 - 6

35710-08F30

Unavailable

2

LAMP UNIT

35720-08F30

Unavailable

3

SOCKET & CORD

35718-08F00

$37.23

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

SCREW This part replaces 03211-05163.

03211-0516A

Unavailable

6

SCREW This part replaces 03211-04163.

03211-0416A

$1.49

7

SCREW, REAR COMB FRONT | 5X12.8

09139-05057

Unavailable

8

NUT, REAR COMB UNDER

09148-05038

$1.97

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

10

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

11

LAMP ASSY, LICENSE PLATE | Includes Item(s) 12 - 18

35910-08F00

Unavailable

12

LENS

35912-08F00

$10.65

13

COVER

35917-08F00

$57.20

14

HOUSING

35915-08F00

Unavailable

15

SOCKET & CORD

35918-08F00

Unavailable

16

SPACER

35766-08F00

Unavailable

17

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

18

NUT This part replaces 08316-20063.

08316-2006A

$2.63

19

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

20

BRACKET, RH

35975-08F00

Unavailable

21

BRACKET, LH

35976-08F00

Unavailable

22

RIVET

09229-04020

$2.66

23

NUT This part replaces 08310-00053.

08310-0005A

$1.84

24

BRACKET,LICENSE PLATE

35927-26E30

$14.20

25

.WASHER (6.5X20X1.6)

09160-06088

$1.65

26

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

27

NUT This part replaces 08310-00063.

08310-0006A

$1.84

28

CUSHION This part replaces 09321-06028.

09321-06038

$1.88
