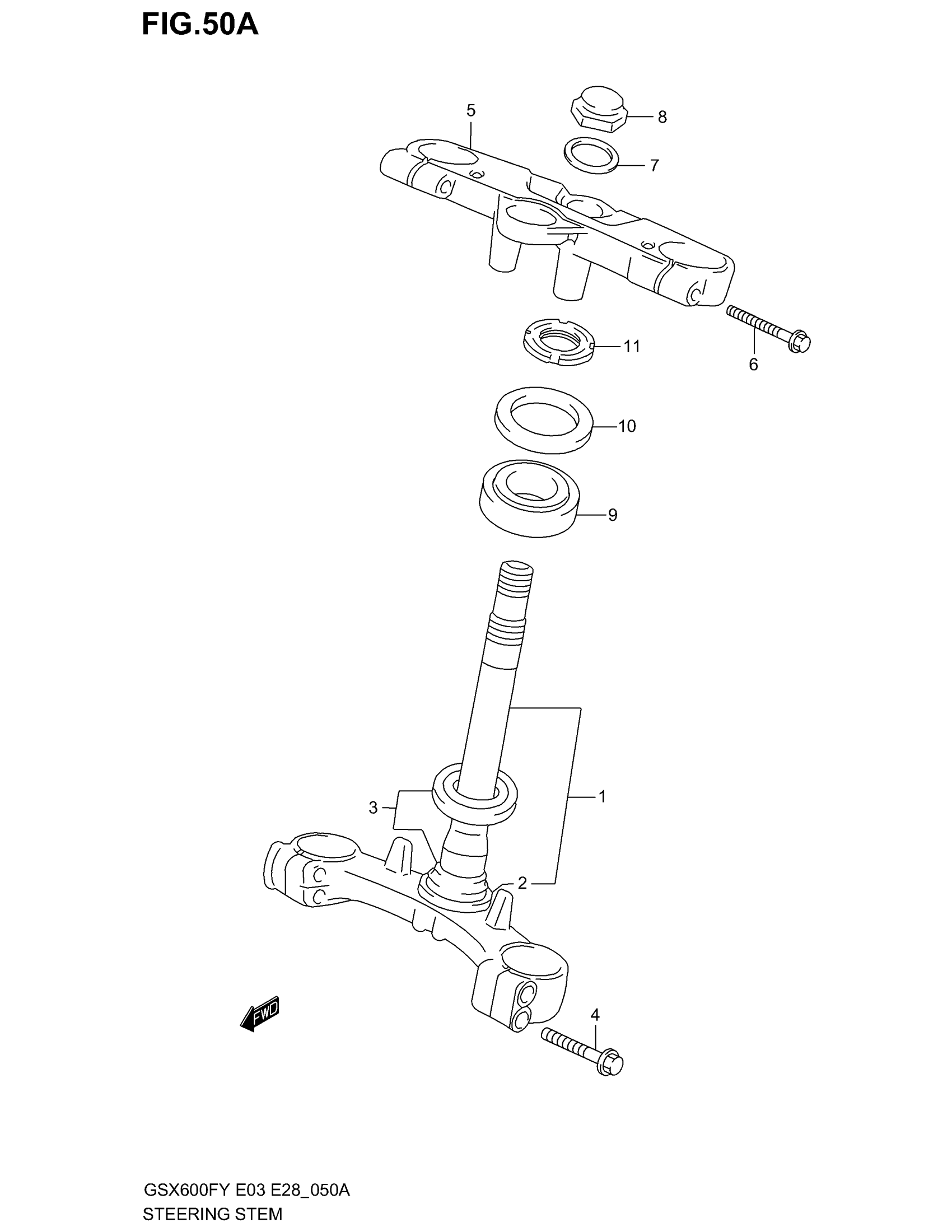

Suzuki GSX600F (2003) STEERING STEM (MODEL K3) Diagram

STEM, STEERING | Includes Item(s) 2 - 3

51410-08F10

Unavailable

SEAL, STEERING LOWER

51644-12C00

$9.44

BEARING (30X55X17)

09265-30020

$44.41

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

HEAD, STEERING STEM

51311-08F10

Unavailable

BOLT (8X40)

01550-08407

$3.42

WASHER

51356-24B01

$5.38

NUT

51353-24B00

$30.67

BEARING (25X47X15)

09265-25038

$45.57

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

NUT, STEERING STEM

51631-28000

$17.37
