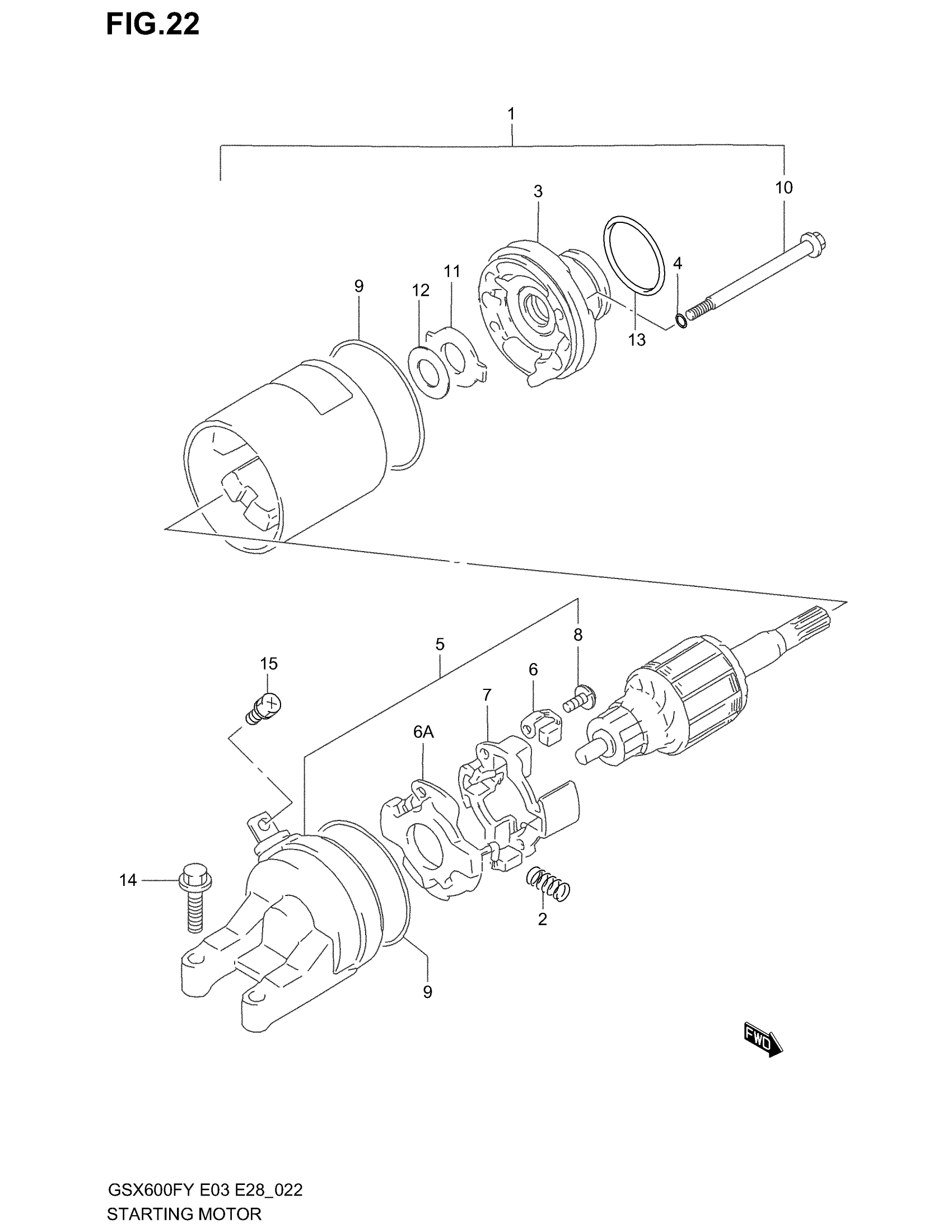

Suzuki GSX600F (2003) STARTING MOTOR (MODEL W/X/Y) Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 13 This part replaces 31100-32C11.

31100-08F00

Unavailable

2

SPRING

31135-32C10

Unavailable

3

BRACKET

31150-06C00

Unavailable

4

O RING

31156-38300

$4.52

5

FRAME ASSY, COMMUTATOR

31175-32C11

Unavailable

6

BRUSH

31132-32C10

$21.77

6A

BRUSH SUB ASSY

31130-32C20

Unavailable

7

HOLDER, BRUSH

31133-32C10

Unavailable

8

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

9

O RING

31264-32C10

$14.20

10

BOLT

31281-32C10

Unavailable

11

PLATE, LOCK

31361-32C10

Unavailable

12

SHIM, NO.3

31361-38300

Unavailable

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

15

SCREW, MOTOR LEAD (5X8)

09137-05004

$2.17
