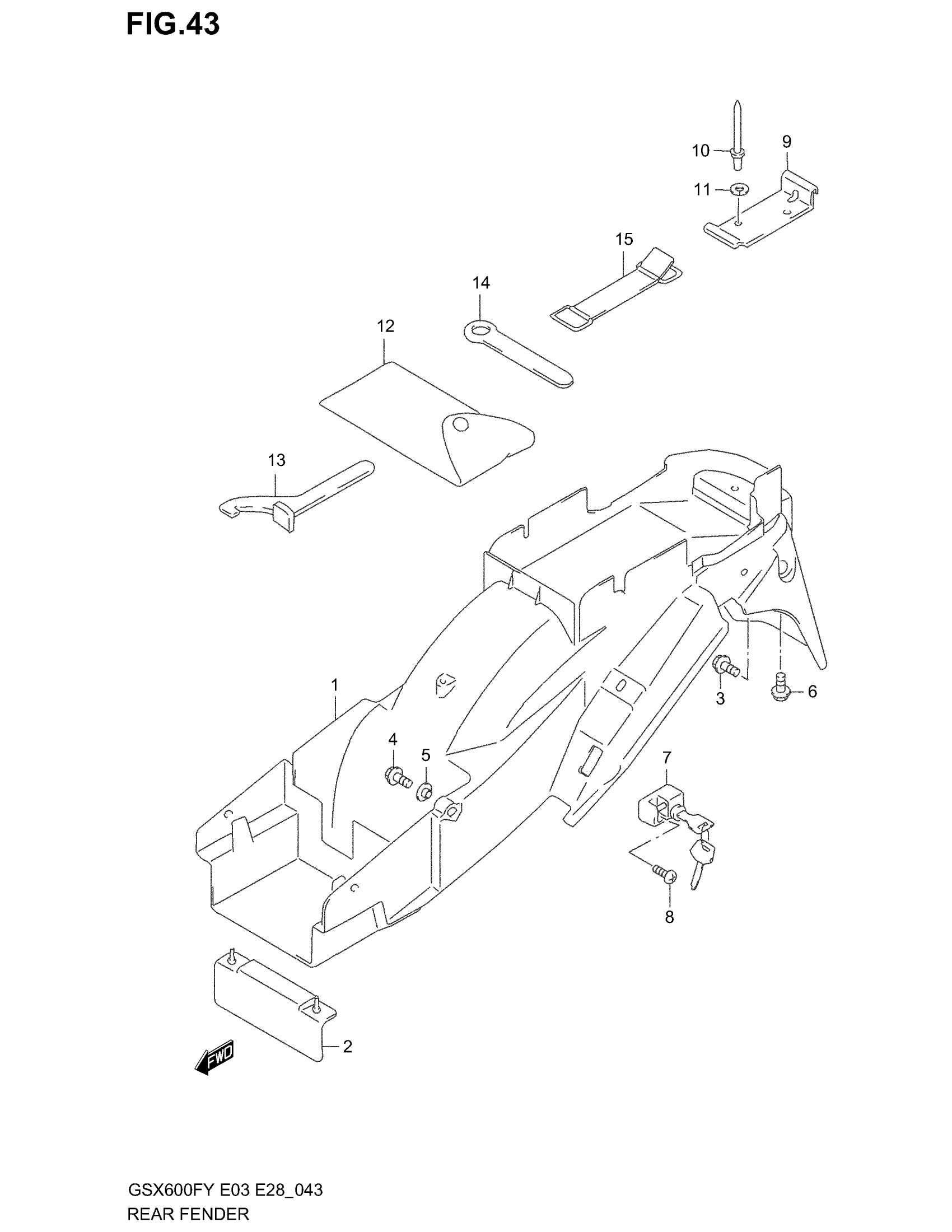

Suzuki GSX600F (2003) REAR FENDER (MODEL W/X/Y/K1/K2) Diagram

#

Description
Price

1

FENDER, REAR

63111-08F30

Unavailable

2

MUDGUARD, REAR FENDER

63411-08F00

Unavailable

3

BOLT | MODEL W/X

09111-06066

$2.62

3

BOLT | MODEL Y/K1/K2

09113-06001

$2.73

4

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

5

WASHER

09169-06071

$2.50

6

BOLT, CENTER | MODEL W This part replaces 09116-06144.

09116-06165

$3.03

6

BOLT, CENTER | MODEL X/Y/K1/K2

09116-06165

$3.03

7

LOCK SET HELMET This part replaces 95700-44820.

95700-41821

$152.77

8

SCREW

09139-06089

$3.03

9

HOLDER, TOOL

63466-02F00

Unavailable

10

RIVET

09229-04020

$2.66

11

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

12

TOOL ASSY

09800-21036

Unavailable

13

CLAMP, WRENCH

09822-00005

$15.16

14

HEXAGON SPANNER, 3

09816-00102

$3.30

15

BAND,TOOL | MODEL W/X/Y This part replaces 47435-02F00.

47435-02F02

$8.33

15

BAND,TOOL | MODEL K1/K2 This part replaces 47435-02F01.

47435-02F02

$8.33
