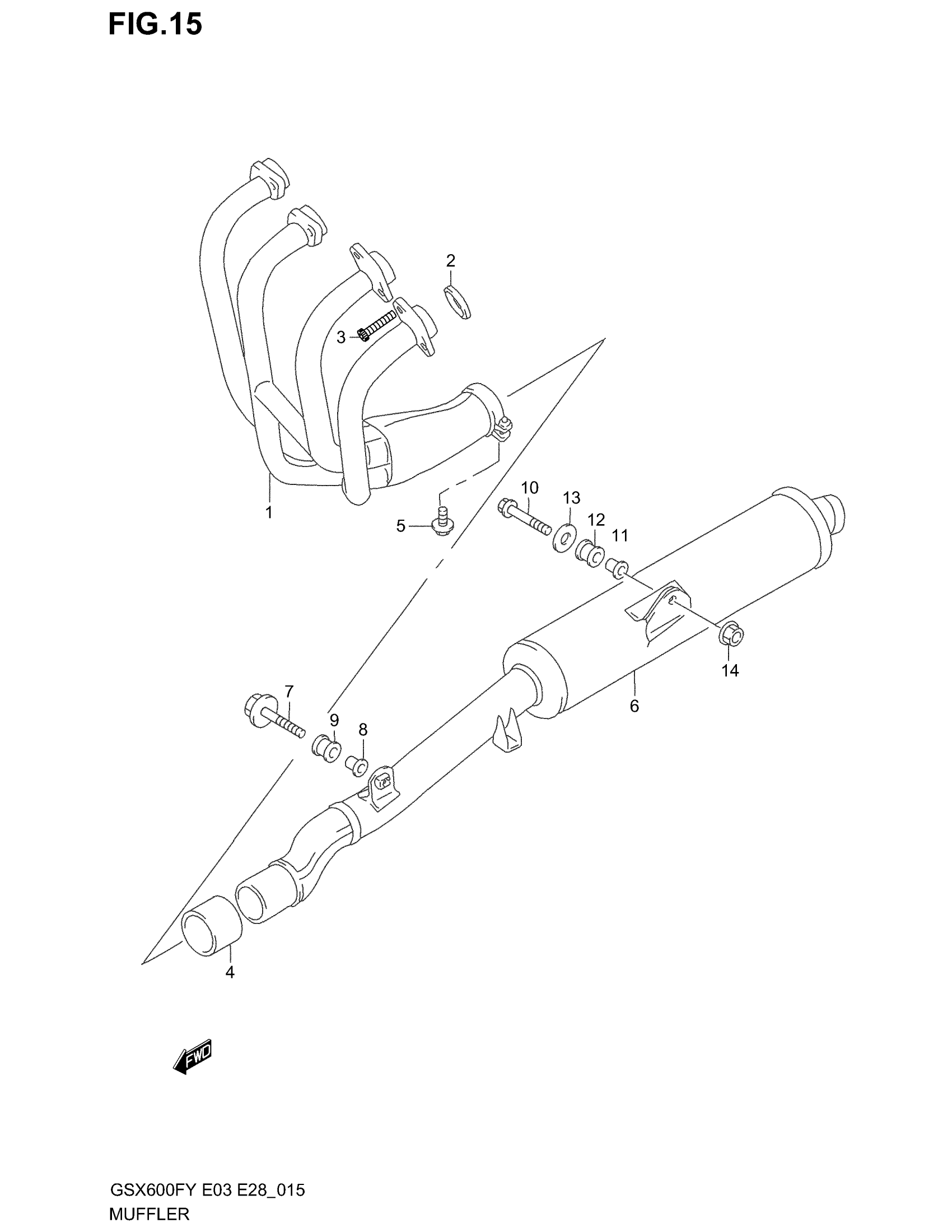

Suzuki GSX600F (2003) MUFFLER Diagram

#

Description
Price

1

EXHAUST This part replaces 14100-19E00.

14100-19E20

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT, EXHAUST PIPE (CHROME) | MODEL W/X

07130-08257

$3.43

3

BOLT | MODEL Y/K1/K2/K3 This part replaces 07130-08253.

07130-0825B

$3.37

4

CONNECTOR, MUFFLER

14771-27E00

$42.03

5

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

6

BODY, MUFFLER | MODEL W/X/Y/K1/K2 This part replaces 14310-19E00-H01.

14310-19E01-H01

Unavailable

6

BODY, MUFFLER | MODEL K3

14310-19E01-H01

Unavailable

7

BOLT (8X40) This part replaces 09118-08068.

09118-08145

$6.47

8

SPACER, MUF SPRT,FR (L:24.2)

09180-08152

$5.83

9

CUSHION, MUF SPRT,FR

09320-12048

$5.11

10

BOLT, MUF SPRT,RR

01550-08457

$4.00

11

SPACER, MUF SPRT,RR (L:25.5)

09180-08156

$6.70

12

CUSHION, MUF SPRT,RR

09320-12049

$10.68

13

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97
