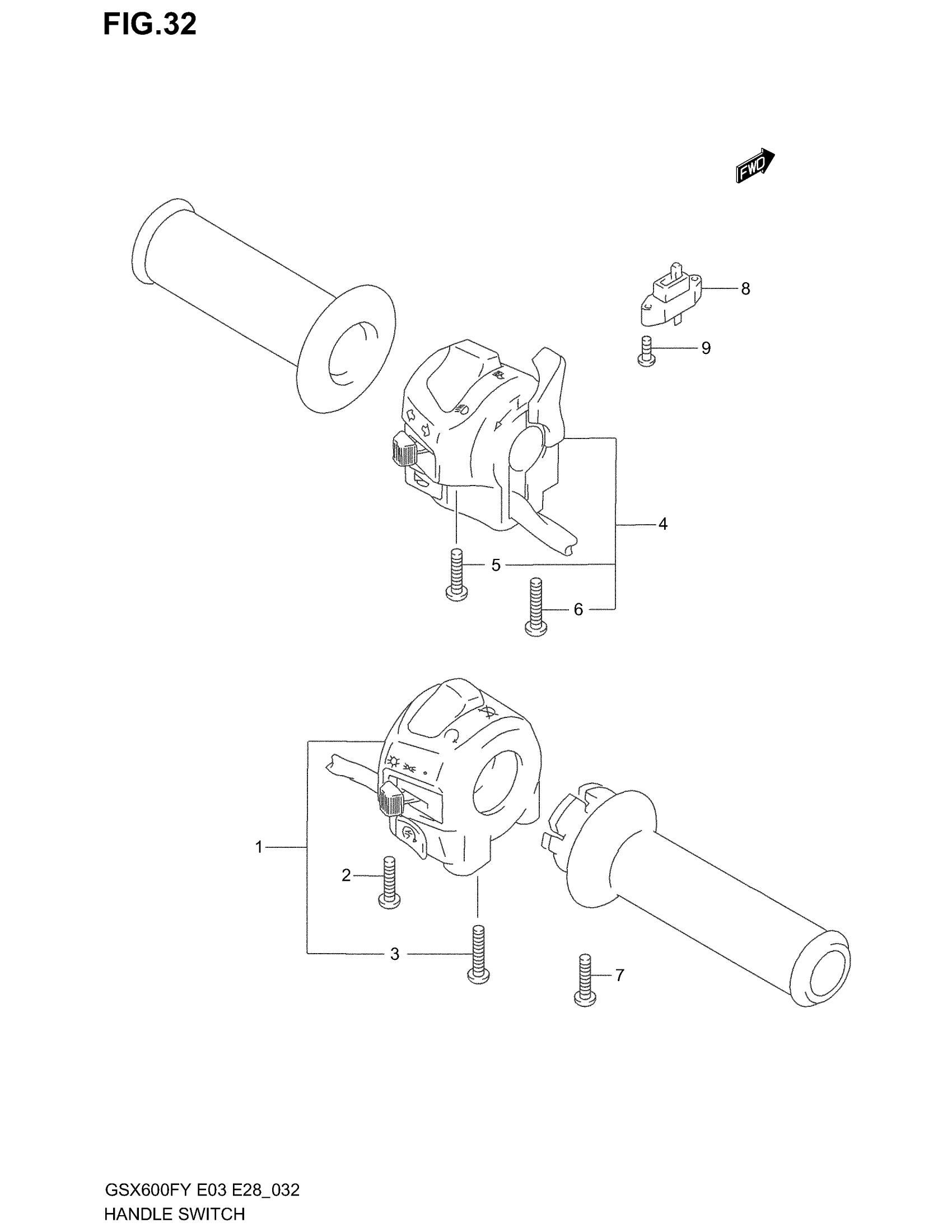

Suzuki GSX600F (2003) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-33E31

Unavailable

2

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

3

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

4

SWITCH ASSY, HANDLE LH | Includes Item(s) 5 - 6

37400-26E31

Unavailable

5

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

6

.SCREW This part replaces 02112-05453.

02112-0545B

$2.26

7

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

8

SWITCH ASSY, CLUTCH

37560-38A00

$18.50

9

SCREW, CLUTCH SWITCH | MODEL W/X/Y/K1 This part replaces 37564-26E00.

09132-03017

$2.11

9

SCREW (3X14) | MODEL K2/K3

09132-03017

$2.11
