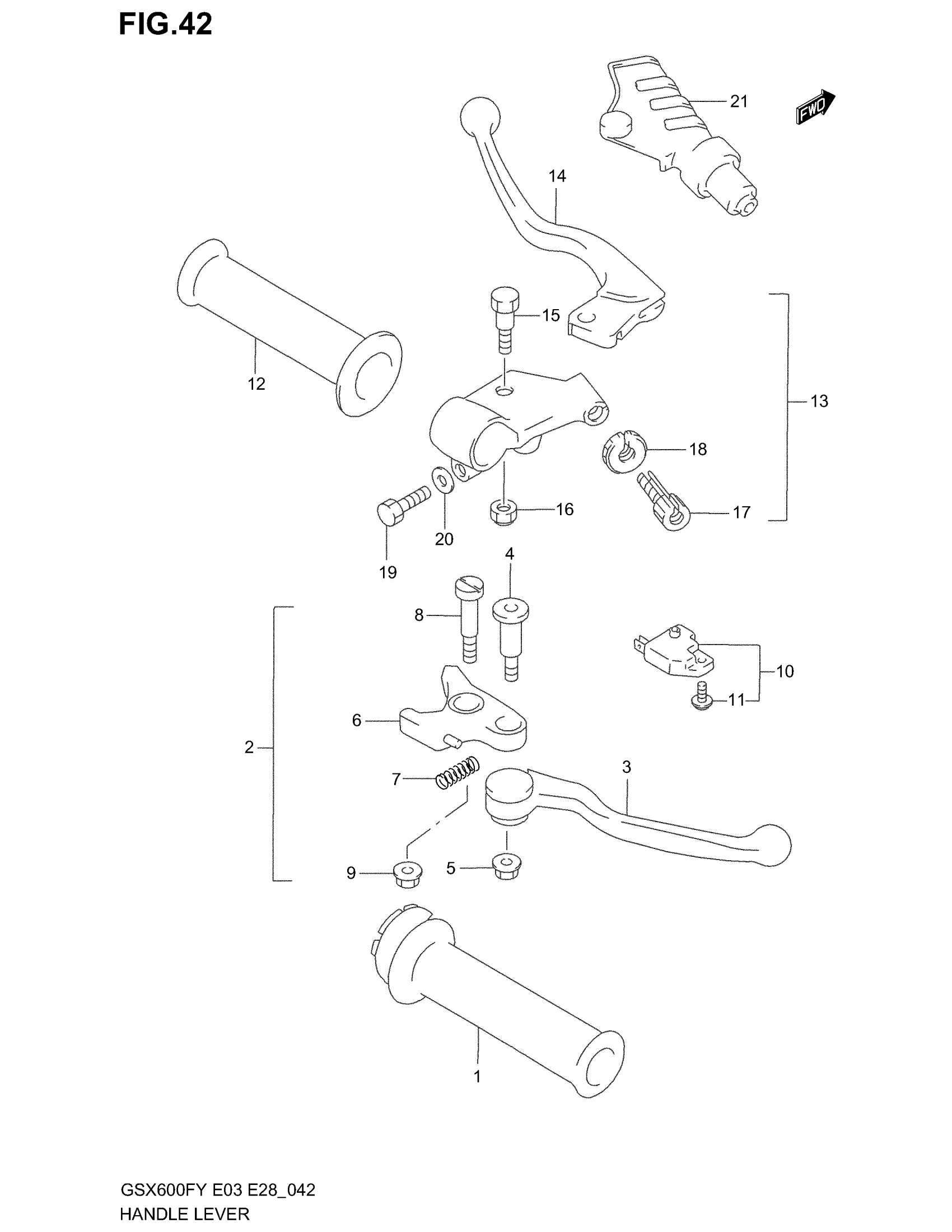

Suzuki GSX600F (2003) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 9

57300-40C10

$78.02

3

LEVER

57420-32C00

$28.92

4

BOLT, LEVER

57437-32C01

$8.60

5

NUT This part replaces 08319-31063.

08319-3106A

$2.03

6

KNOCKER | MODEL W This part replaces 57430-40C00.

57430-40C10

$59.25

6

KNOCKER | MODEL X/Y/K1/K2/K3

57430-40C10

$59.25

7

SPRING

57438-32C00

$5.67

8

BOLT, KNOCKER

57431-17C00

$7.11

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER ASSY,CLUT | Includes Item(s) 14 - 20 This part replaces 57500-10D80.

57500-10DA1

$46.35

14

LEVER

57620-27A31

$22.77

15

BOLT, LEVER

57531-14A00

$7.46

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

ADJUSTER, CABLE

57441-11010

$5.62

18

NUT

57442-11010

$2.79

19

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

21

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.93
