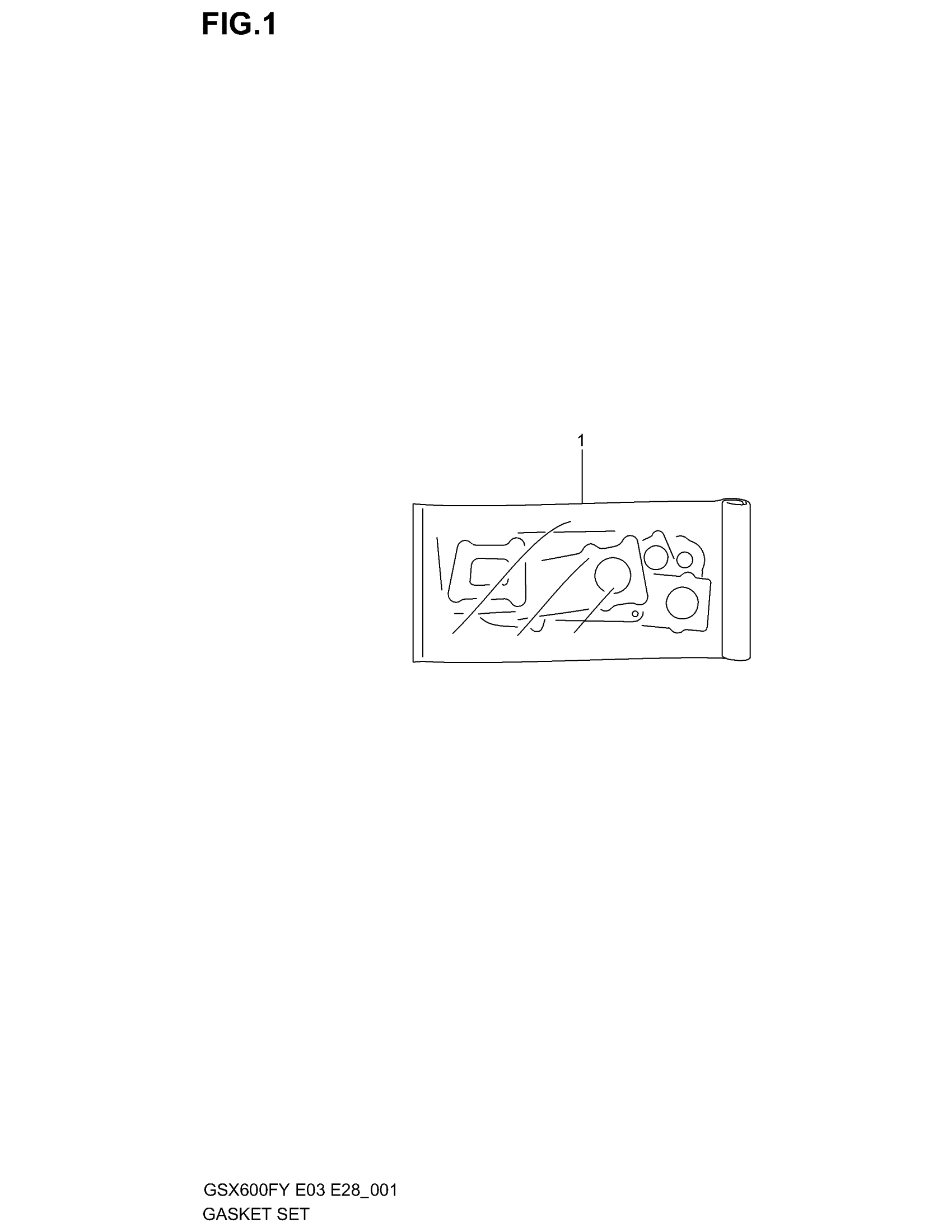

Suzuki GSX600F (2003) GASKET SET Diagram

#

Description
Price

1

GASKET SET | OPT; Includes Item(s) 2 - 35 This part replaces 11401-19855.

11401-19858

$463.53

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-19C03

$73.22

3

GASKET, CYLINDER HEAD COVER | NOT SHOWN

11173-27A02

$43.16

4

GASKET, BREATHER COVER | NOT SHOWN

11177-27A00-H17

$6.05

5

GASKET,HEAD COV | NOT SHOWN This part replaces 11178-27A01.

11178-27A02

$6.79

6

GASKET,HEAD COV | NOT SHOWN This part replaces 11179-27A02.

11179-27A03

$7.22

7

GASKET, CYLINDER | NOT SHOWN

11241-27A04

$17.36

8

GASKET, CLUTCH COVER | NOT SHOWN

11482-27A20

$14.20

9

GASKET, STARTER GEAR COVER | NOT SHOWN

11483-27A20

$11.19

10

O RING, OIL PAN | NOT SHOWN This part replaces 11489-27A20.

11489-27A21

$16.33

11

GASKET, SIGNAL GENERATOR COVER | NOT SHOWN

11491-27A30

$8.40

12

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-27A10

$3.85

13

.GASKET,EXHAUST | NOT SHOWN

14181-18C00

$7.22

14

O RING, OIL PUMP | NOT SHOWN

16491-27A01

$9.31

15

GASKET, OIL STR PROTECTOR | NOT SHOWN This part replaces 16528-27A20.

16528-27A21

$5.78

16

GASKET, OIL OUTLET | NOT SHOWN

16529-27A01

$2.15

17

WASHER | NOT SHOWN

09161-11008

$4.49

18

GASKET | NOT SHOWN

09168-06024

$2.20

19

GASKET (8.2X14X1) | NOT SHOWN This part replaces 09168-08008.

09168-08016

$1.65

20

GASKET (8.5X17X2.3) | NOT SHOWN

09168-08021

$2.61

21

.GASKET (10.2X20X2.3) | NOT SHOWN

09168-10031

$2.03

22

GASKET (14.1X18X1.5) | NOT SHOWN

09168-14004

$1.83

23

GASKET (16X22X2) | NOT SHOWN

09168-16002

$1.91

24

GASKET (16X22X2) | NOT SHOWN

09168-16003

$1.91

25

O RING (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.91

26

O RING (D:2.6,ID:12.1) | NOT SHOWN

09280-12013

$5.57

27

O RING (D:2.5,ID:13.8) | NOT SHOWN

09280-14011

$4.77

28

O RING (D:2.4,ID:16.8) | NOT SHOWN

09280-17002

$5.11

29

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.65

30

O RING | NOT SHOWN

09280-18009

$5.83

31

O RING (D:2.5,ID:21) | NOT SHOWN

09280-21008

$1.91

32

O RING | NOT SHOWN

09280-22016

$5.58

33

.O-RING (D:3,ID:24.5) | NOT SHOWN

09280-24003

$1.55

34

O RING (D:2.4,ID:36.5) | NOT SHOWN

09280-36001

$3.29

35

O-RING (D:2.4,ID:39.7) | NOT SHOWN This part replaces 09280-40010.

09280-40020

$2.91
