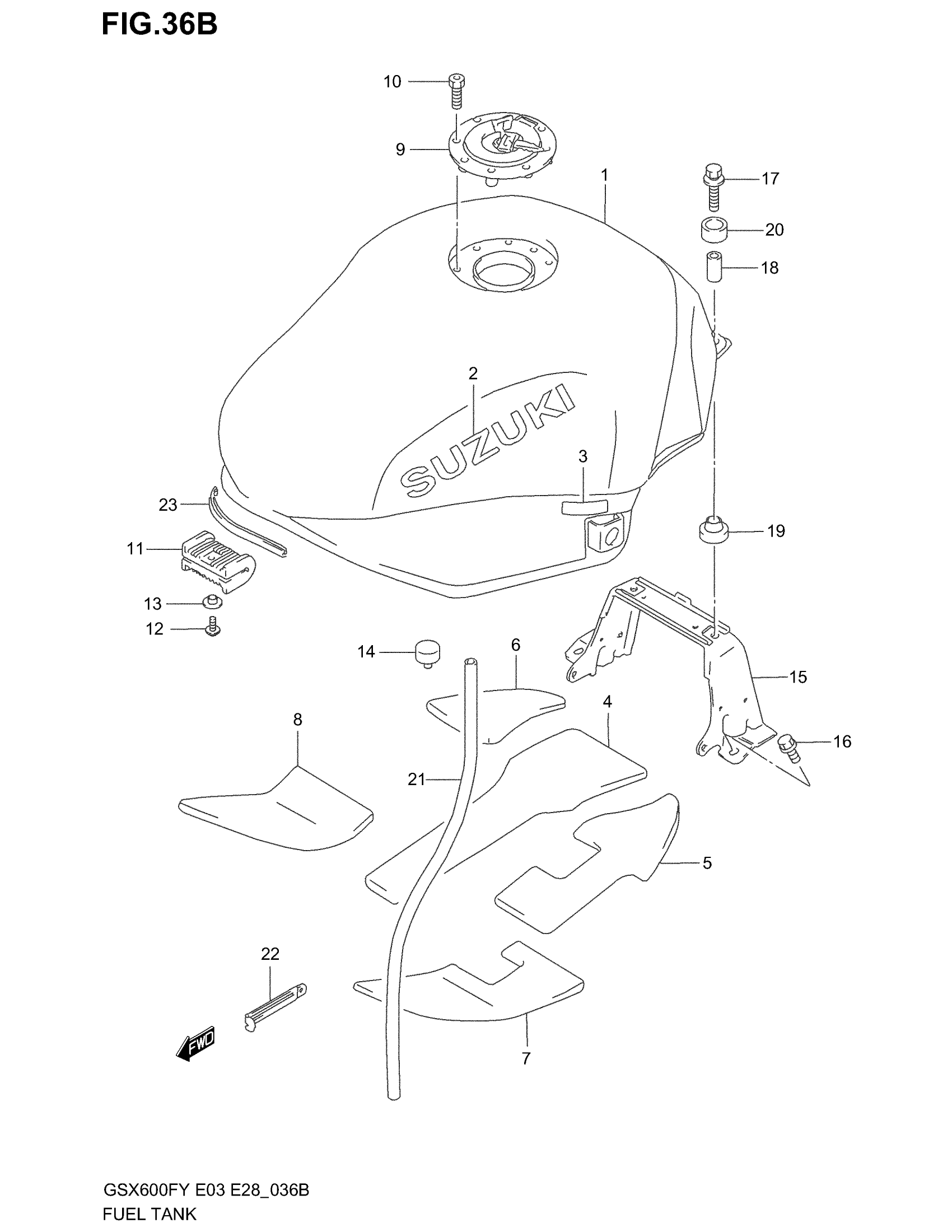

Suzuki GSX600F (2003) FUEL TANK (MODEL K2/K3) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | MODEL K2 This part replaces 44100-08F00-Y9H.

44110-08F00-13L

Unavailable

1

TANK ASSY,FUEL( | MODEL K2 This part replaces 44100-08F00-YC2.

44110-08F00-13L

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K2 E33

44100-08F30-Y9H

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K2 E33

44100-08F30-YC2

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K3

44100-08F10-YEX

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K3

44100-08F10-YU9

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K3 E33

44100-08F30-YEX

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K3 E33; Includes Item(s) 2 - 2

44100-08F30-YU9

Unavailable

2

EMBLEM (BLACK) | MODEL K2 FOR Y9H

68111-47C10-Y7L

Unavailable

2

.EMBLEM,SUZUKI (SILVER) | MODEL K2 FOR YC2

68111-47C10-YD8

$22.97

2

EMBLEM (GRAY) | MODEL K3 FOR YEX

68111-47C10-1ZY

Unavailable

2

EMBLEM (BLACK) | MODEL K3 FOR YU9

68111-47C10-33J

Unavailable

3

PROTECTOR, FUEL TANK

32851-10D00

$5.05

4

SHIELD, HEAT NO.1

44191-08F00

Unavailable

5

SHIELD, HEAT NO.2

44192-08F00

$34.93

6

SHIELD, HEAT NO.3

44193-08F00

$16.78

7

SHIELD, HEAT NO.4

44194-08F00

$18.58

8

SHIELD, HEAT NO.5

44195-08F00

Unavailable

9

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

9

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

10

BOLT

09106-05017

$2.83

11

CUSHION, FUEL TANK FRONT

44510-33D00

$20.32

12

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

13

WASHER

09169-05012

$2.38

14

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

15

BRACKET, REAR

44550-08F00

Unavailable

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

17

BOLT, REAR

09116-06172

$2.50

18

SPACER

09180-06271

$2.35

19

CUSHION, REAR

09320-10038

$2.61

20

CUSHION, REAR

09320-14017

$2.35

21

HOSE,FUEL TANK This part replaces 44423-08F00.

44423-08F01

Unavailable

22

CLAMP

09404-08420

$3.16

23

MOLDING, FUEL TANK

68241-08F00

$8.42
