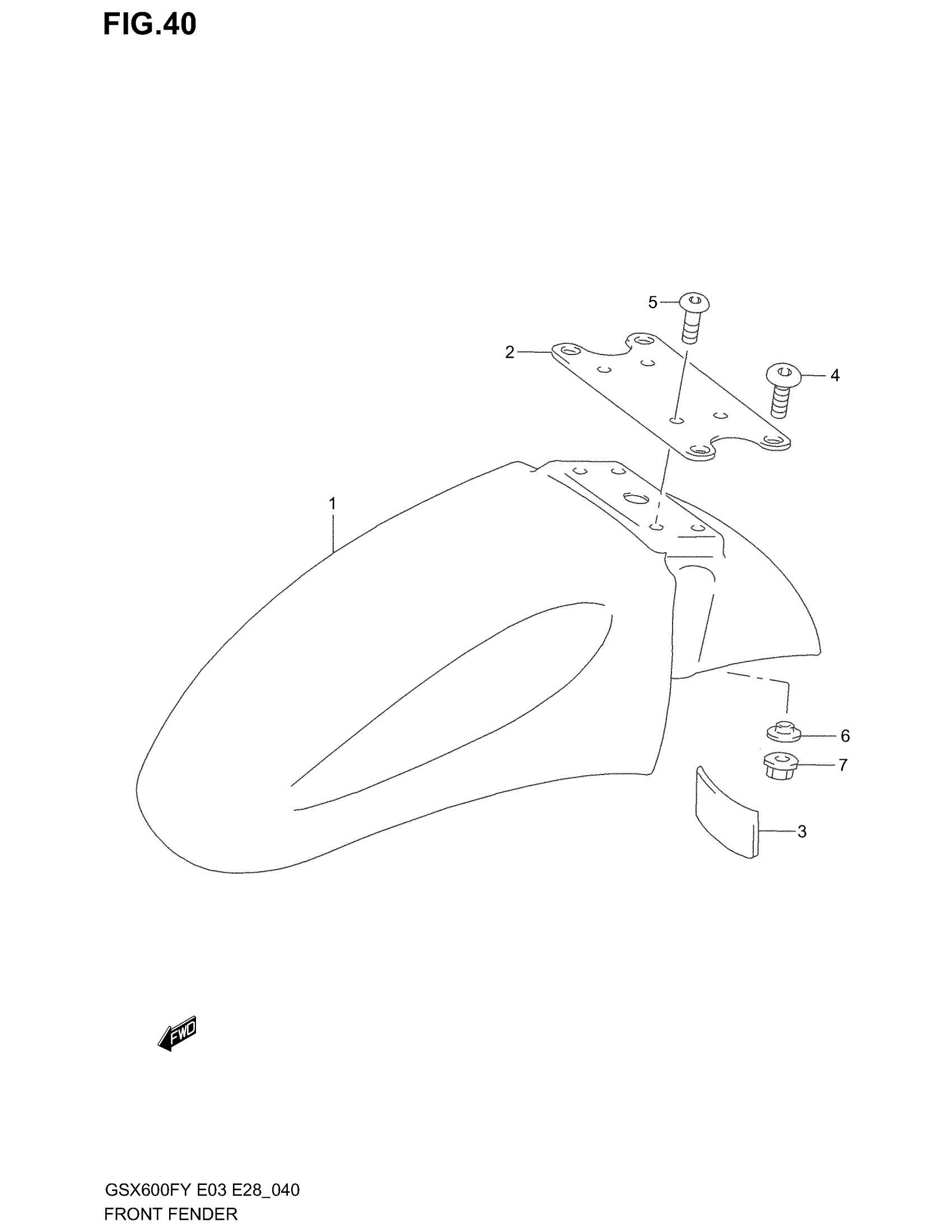

Suzuki GSX600F (2003) FRONT FENDER (MODEL W/X/Y/K1/K2) Diagram

#

Description

Price

1

FENDER, FRONT (RED) | MODEL W/X

53111-08F00-28V

Unavailable

1

FENDER, FRONT (BLUE) | MODEL W

53111-08F00-Y4E

Unavailable

1

FENDER, FRONT (BLACK) | MODEL X

53111-08F00-33J

Unavailable

1

FENDER, FRONT (BLUE) | MODEL Y

53111-08F00-Y7E

Unavailable

1

FENDER, FRONT (RED) | MODEL Y

53111-08F00-Y7M

Unavailable

1

FENDER, FRONT (YELLOW) | MODEL K1/K2

53111-08F00-Y9H

Unavailable

1

FENDER, FRONT (BLUE) | MODEL K1/K2

53111-08F00-YC2

Unavailable

2

BRACE, FRONT FENDER

53114-26D00

Unavailable

3

CUSHION, FENDER UNDER

53146-20C00

$7.05

4

SCREW, FENDER

09139-06027

$2.16

5

SCREW, BRACE | MODEL W/X/Y

09139-05042

$2.90

5

SCREW, BRACE | MODEL K1/K2

09139-05032

$1.89

6

WASHER

09169-05010

$2.38

7

NUT | MODEL W/X/Y This part replaces 09159-05026.

09159-05043

$2.22

7

NUT | MODEL K1/K2

09159-05043

$2.22
