Description

Price

CALIPER ASSY, FRONT RH This part replaces 59100-33D50.

59100-33D81-999

$583.83

CALIPER ASSY, FRONT | Includes Item(s) 1 - 11 This part replaces 59300-33D50.

59300-33D81-999

$570.20

1

PISTON SET This part replaces 59300-33830.

59301-20820

$37.59

2

SEAL SET, PISTON | MODEL W/X/Y/K1 This part replaces 59300-33840.

59300-33841

$15.45

2

SEAL SET, PISTON | MODEL K2/K3 This part replaces 59300-35820.

59300-33841

$15.45

3

PAD SET, RH

59101-33830

$56.58

3

PAD SET, LH

59301-33830

$58.85

4

.SPRING, PAD RH

59115-33D00

$14.90

4

.SPRING, PAD LH

59315-33D00

$14.90

5

BOOT

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.GUIDE, PAD

59116-33D00

$7.97

8

BLEEDER

59121-18410

$8.73

9

CAP

55156-66310

$5.17

10

.PIN, PAD

59141-44B01

$9.09

11

.CLIP, PAD PIN

69142-45000

$4.34

12

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

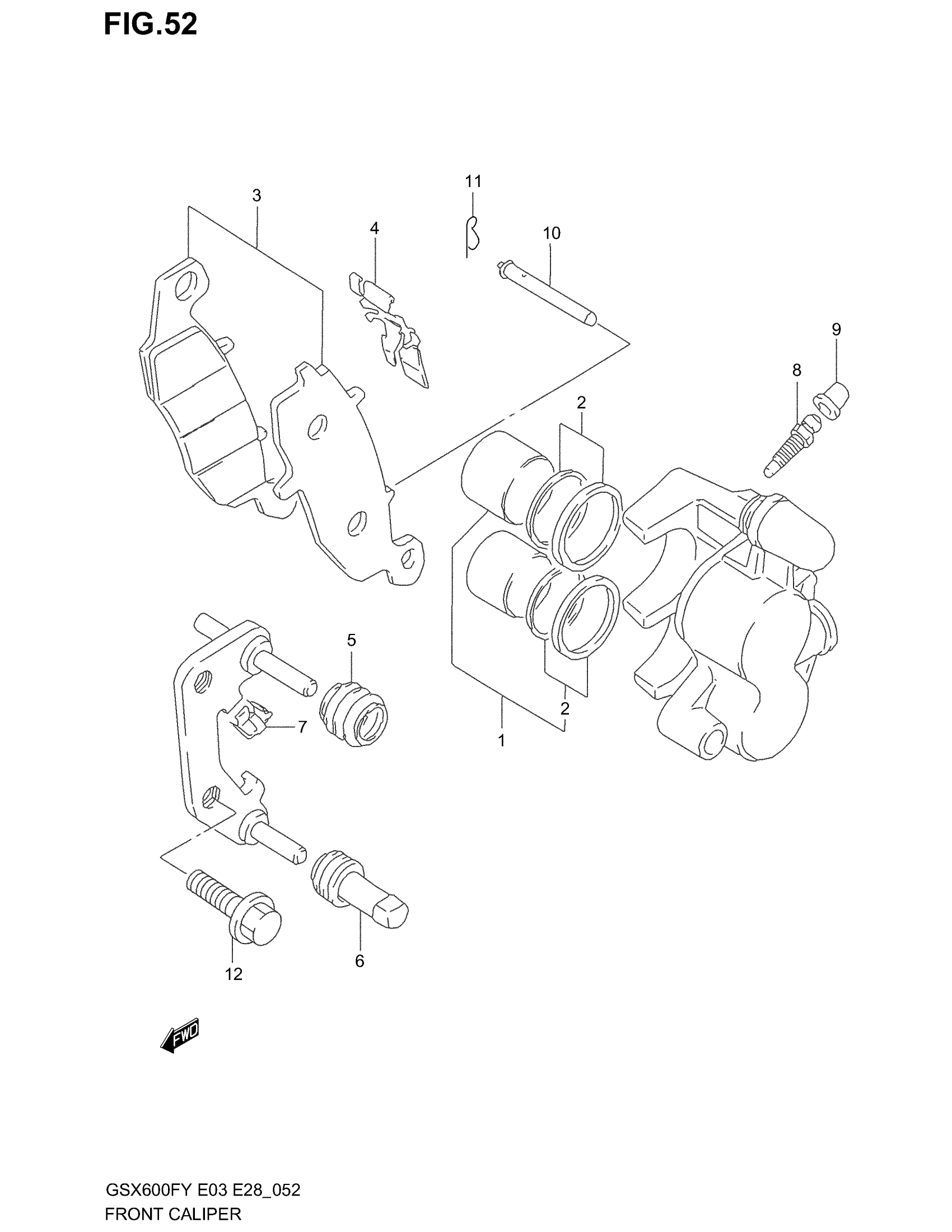

Suzuki GSX600F (2003) FRONT CALIPER Diagram
