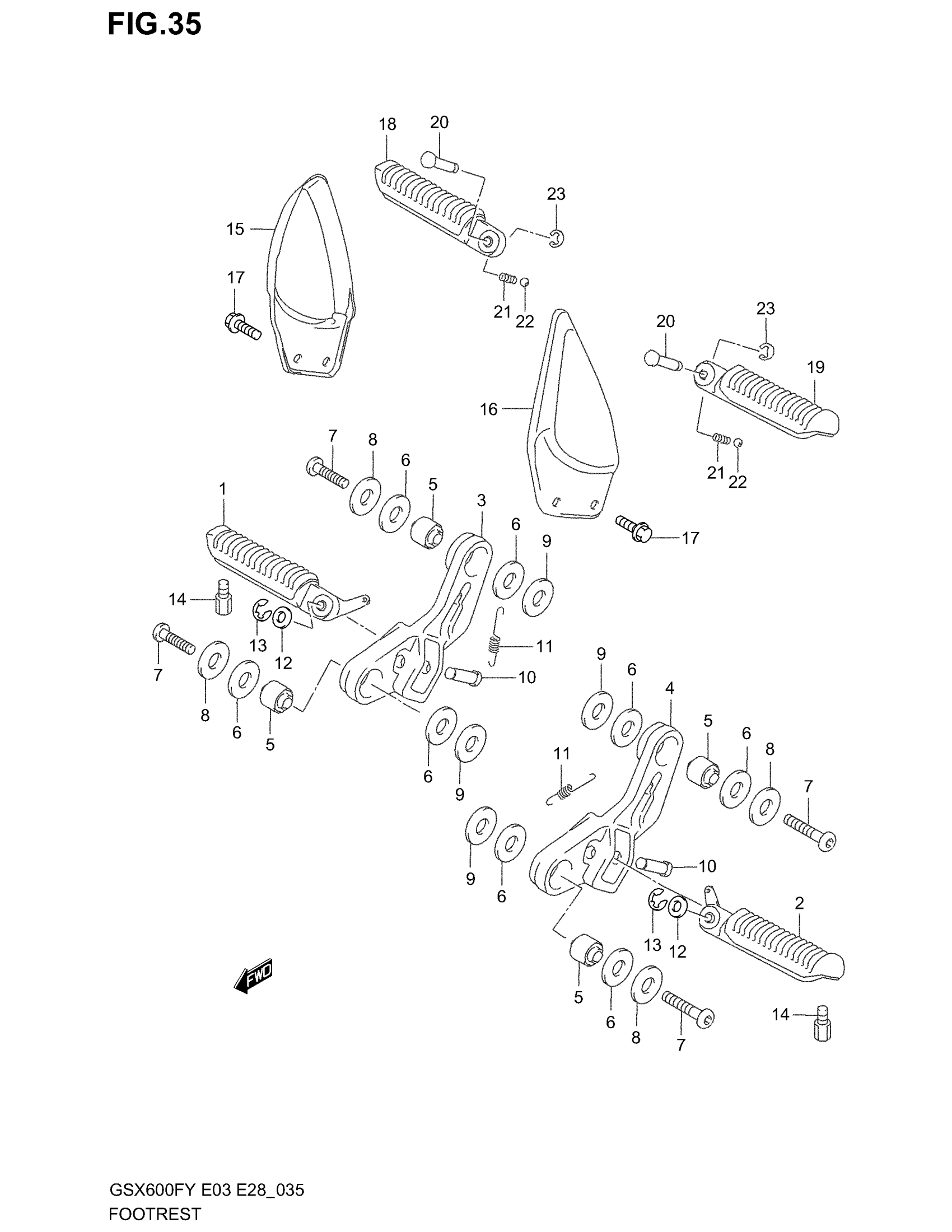

Suzuki GSX600F (2003) FOOTREST (MODEL W/X/Y) Diagram

#

Description
Price

1

BAR,FR FOOTREST | MODEL W This part replaces 43510-19C30.

43510-19C22

$108.65

1

BAR,FR FOOTREST | MODEL X/Y This part replaces 43510-19C31.

43510-19C22

$108.65

2

BAR,FR FOOTREST | MODEL W This part replaces 43520-19C30.

43520-19C22

$110.67

2

BAR,FR FOOTREST | MODEL X/Y This part replaces 43520-19C31.

43520-19C22

$110.67

3

HOLDER, FRONT FOOTREST RH

43531-19C00

Unavailable

4

HOLDER, FRONT FOOTREST LH

43541-19C00

Unavailable

5

BUSH, HOLDER

09319-08033

$11.88

6

WASHER, HOLDER

09161-12006

Unavailable

7

BOLT

09106-08137

$5.92

8

WASHER, MUFFLER SUPPORT This part replaces 09160-08138.

09160-08503

$2.50

9

WASHER, INNER

09160-08503

$2.50

10

PIN

09208-08010

$2.91

11

SPRING

09443-08049

$4.25

12

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

14

.BOLT,BANK SENSOR

43576-07D01

$8.85

15

GUARD, FRONT FOOTREST RH

43571-08F00

Unavailable

16

GUARD, FRONT FOOTREST LH

43581-08F00

Unavailable

17

BOLT

09106-08128

$3.23

18

BAR, PILLION FOOTREST RH | MODEL W This part replaces 43610-20C00.

43610-20C01

$73.62

18

BAR, PILLION FOOTREST RH | MODEL X/Y

43610-20C01

$73.62

19

BAR, PILLION FOOTREST LH | MODEL W This part replaces 43710-20C00.

43710-20C01

$73.62

19

BAR, PILLION FOOTREST LH | MODEL X/Y

43710-20C01

$73.62

20

PIN

09208-08011

$2.91

21

SPRING

09440-05005

$1.58

22

BALL

06111-07004

$1.49

23

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49
