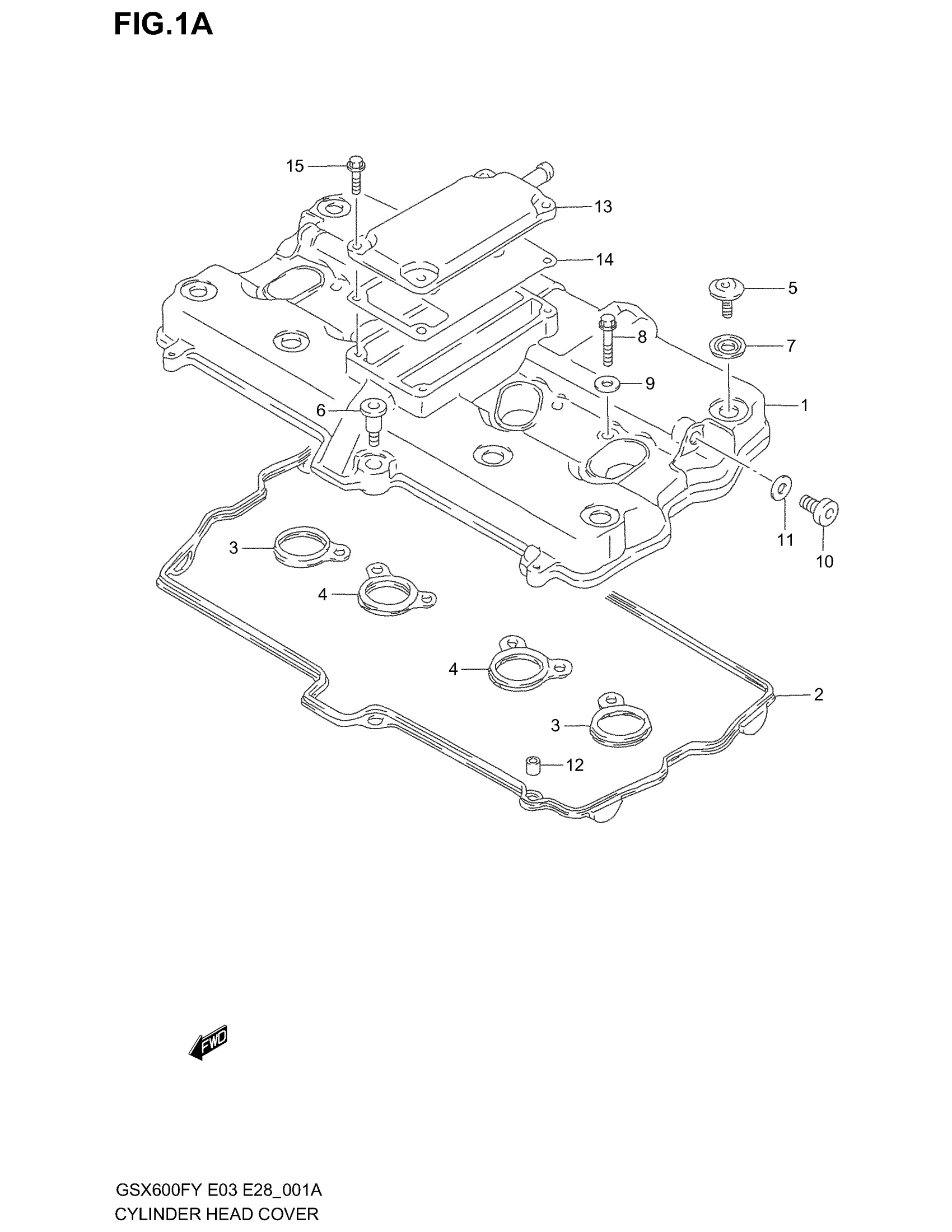

Suzuki GSX600F (2003) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-26E01

Unavailable

2

GASKET, HEAD COVER NO.1

11173-27A02

$43.16

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.79

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$7.22

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

BOLT (L:19)

09106-07010

$4.64

7

WASHER

09161-11008

$4.49

8

BOLT AND GASKET | %F.NO.W2103218 !11180-27820 BOLT AND GASKET SET This part replaces 09360-08009.

11180-27820

Unavailable

8

BOLT, UNION | F.NO.W2103219%

11181-27E00

$4.54

9

GASKET (8.2X14X1) | %F.NO.W2103218 This part replaces 09168-08008.

09168-08016

$1.65

9

GASKET | F.NO.W2103219%

09168-08029

$2.32

10

PLUG, HEAD COVER

09248-12004

$7.95

11

GASKET

09168-12002

$1.59

12

PIN

04221-08129

$1.99

13

COVER, BREATHER

11176-31301

Unavailable

14

GASKET, BREATHER COVER

11177-27A00-H17

$6.05

15

BOLT This part replaces 01550-06203.

01550-0620A

$1.97
