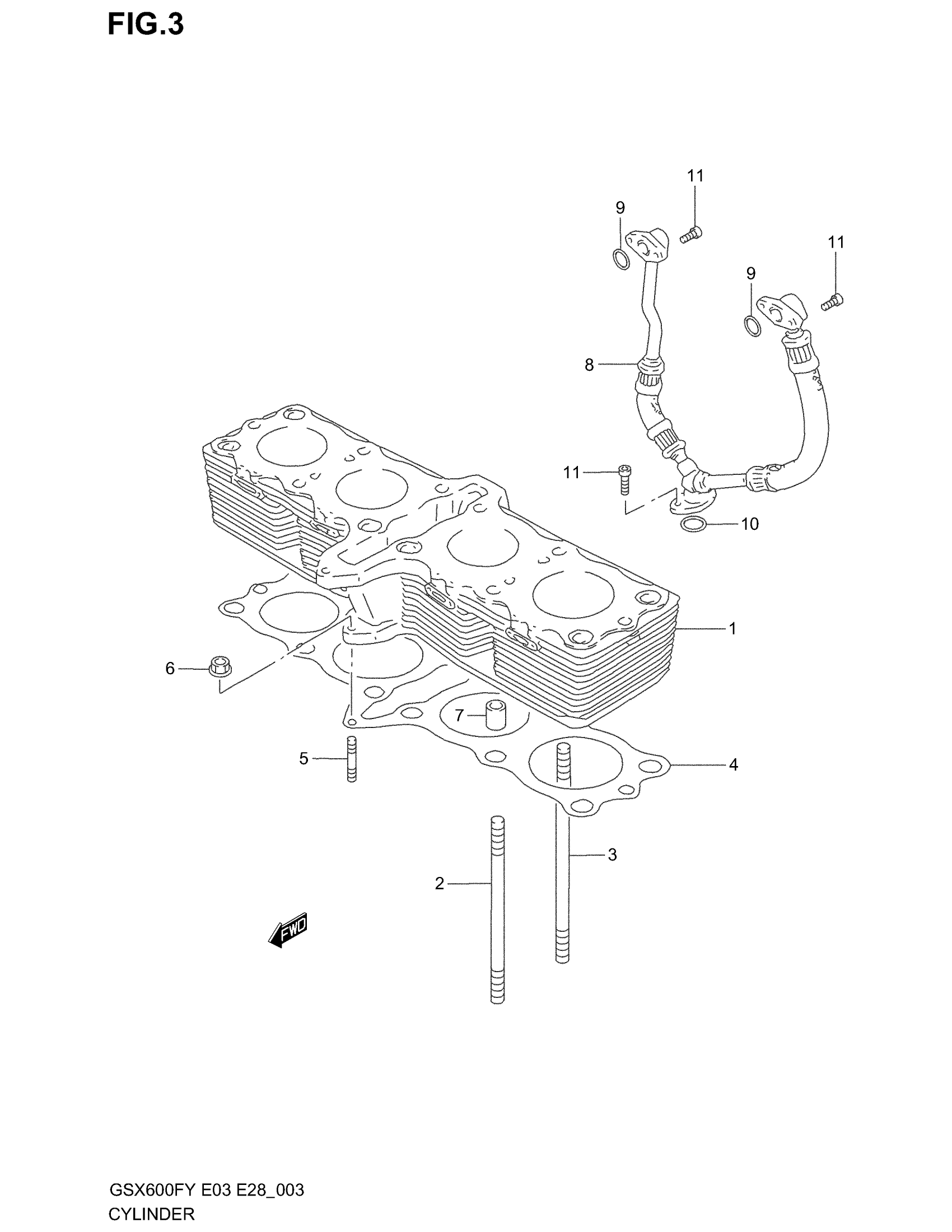

Suzuki GSX600F (2003) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL W/X This part replaces 11210-26E00.

11210-26E00-0F0

Unavailable

1

CYLINDER | MODEL Y/K1/K2/K3

11210-26E00-0F0

Unavailable

1

CYLINDER | MODEL W/X E33 This part replaces 11210-26E10.

11210-26E10-0F0

Unavailable

1

CYLINDER | MODEL Y/K1/K2/K3/E33

11210-26E10-0F0

Unavailable

2

STUD BOLT (10X150) This part replaces 09108-10109.

09108-10144

$11.10

3

STUD BOLT (10X143)

09108-10073

$11.73

4

GASKET, CYLINDER

11241-27A04

$17.36

5

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

PIN

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER

11328-27A04

Unavailable

9

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.39
