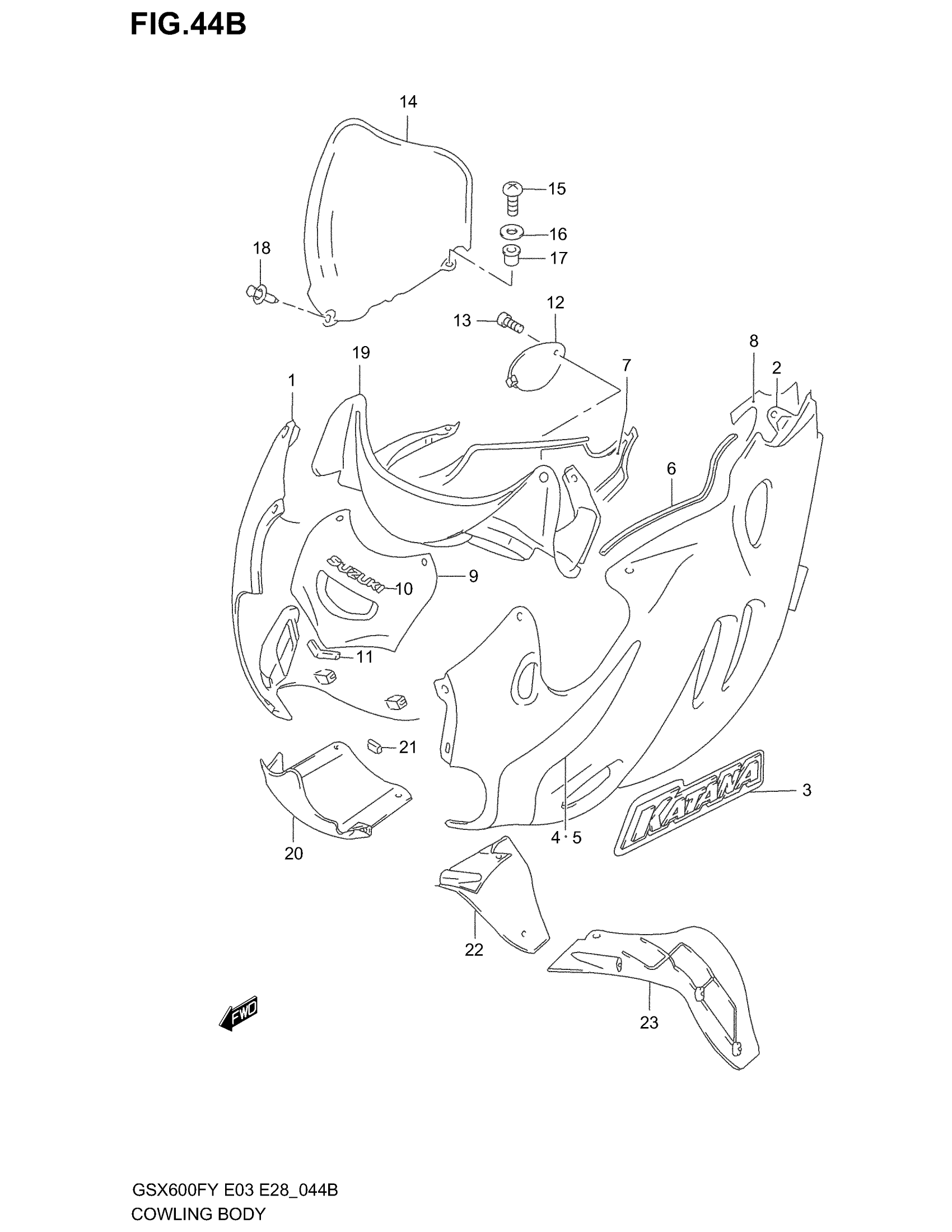

Suzuki GSX600F (2003) COWLING BODY (MODEL Y) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (BLUE)

94403-08F80-Y7E

Unavailable

1

COWL ASSY, SIDE RH (RED)

94403-08F80-Y7M

Unavailable

2

COWL ASSY, SIDE LH (BLUE)

94404-08F80-Y7E

Unavailable

2

COWL ASSY, SIDE LH (RED)

94404-08F80-Y7M

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E33

94404-08F90-Y7E

Unavailable

2

COWL ASSY, SIDE LH (RED) | E33; Includes Item(s) 3 - 8

94404-08F90-Y7M

Unavailable

3

EMBLEM, KATANA | FOR Y7E

68681-08F30-BC9

Unavailable

3

EMBLEM, KATANA | FOR Y7M

68681-08F30-BD1

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR Y7E This part replaces 68685-08F00-BF7.

68685-08F01-BF7

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR Y7M This part replaces 68685-08F00-BF9.

68685-08F01-BF9

Unavailable

5

NO DESCRIPTION AVAILABLE | FOR Y7E This part replaces 68695-08F00-BF7.

68695-08F01-BF7

Unavailable

5

TAPE,COWL SIDE, | FOR Y7M This part replaces 68695-08F00-BF9.

68695-08F01-BF9

Unavailable

6

MOLDING

94631-44110

$36.85

7

SHIELD, HEAT RH

94439-08F00

Unavailable

8

SHIELD, HEAT LH

94449-08F00

Unavailable

9

PANEL, CENTER UPPER (BLUE)

94410-08F00-Y7E

Unavailable

9

PANEL, CENTER UPPER (RED) | Includes Item(s) 10 - 11

94410-08F00-Y7M

Unavailable

10

EMBLEM, SUZUKI (GRAY) | FOR Y7E

68185-05C10-1ZY

Unavailable

10

EMBLEM, SUZUKI (GRAY) | FOR Y7M

68185-05C10-20G

Unavailable

11

CUSHION

94413-08F00

$3.78

12

LID, OIL (BLUE)

94435-08F00-Y7E

Unavailable

12

LID, OIL (RED)

94435-08F00-Y7M

Unavailable

13

SCREW

09139-06030

$3.70

14

WIND SCREEN

94611-08F00

$270.57

15

SCREW

09139-05025

$2.05

16

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

17

NUT

09159-05019

$7.14

18

CLIP (BLACK)

09409-08308-5ES

$1.97

19

PANEL, METER

94421-08F00

Unavailable

20

PANEL, CENTER LOWER (BLUE)

94412-08F00-Y7E

Unavailable

20

PANEL, CENTER LOWER (RED)

94412-08F00-Y7M

Unavailable

21

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

22

PANEL, INNER RH (BLUE)

94461-08F00-Y7E

Unavailable

22

PANEL, INNER RH (RED)

94461-08F00-Y7M

Unavailable

23

PANEL, INNER LH (BLUE)

94462-08F00-Y7E

Unavailable

23

PANEL, INNER LH (RED)

94462-08F00-Y7M

Unavailable
