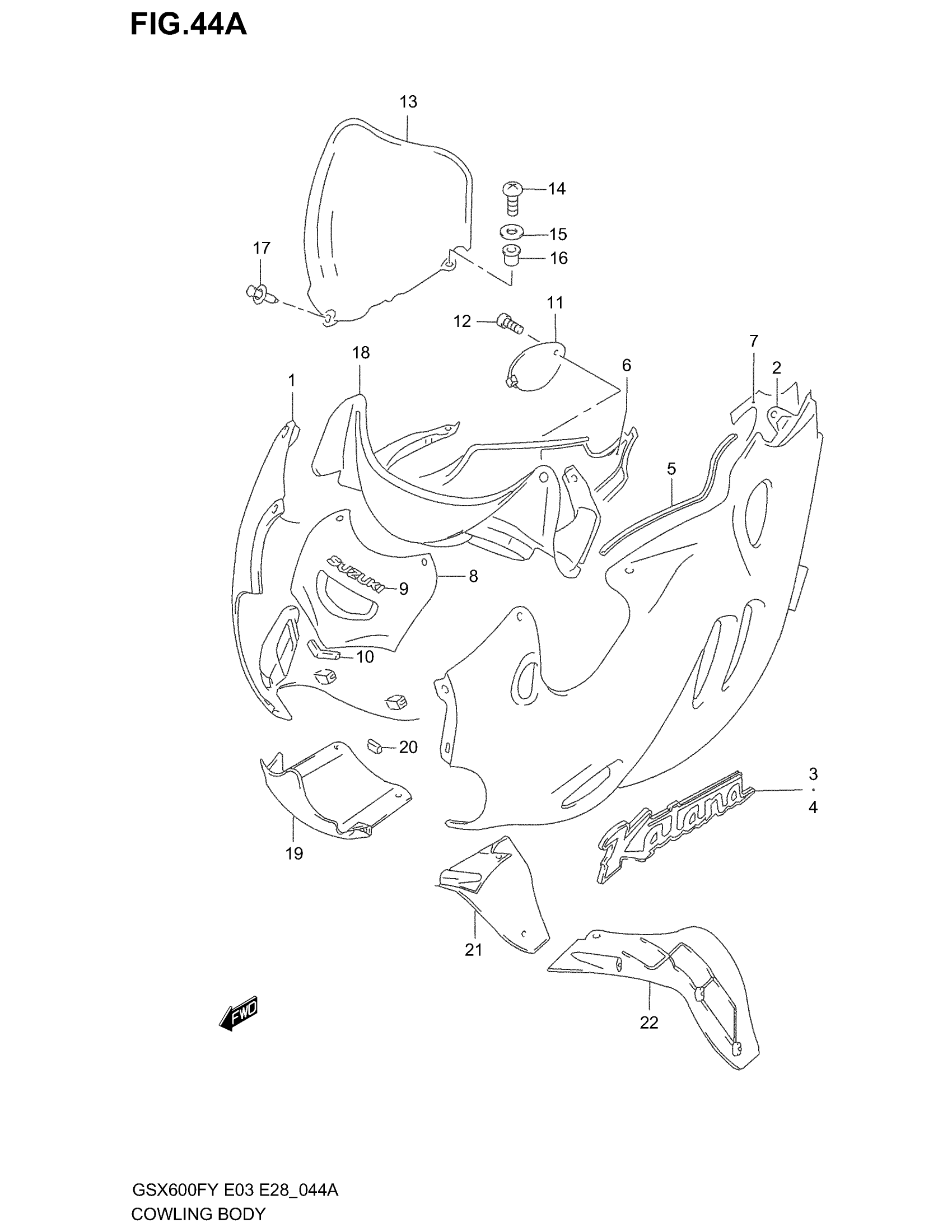

Suzuki GSX600F (2003) COWLING BODY (MODEL X) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (RED)

94403-08F40-28V

Unavailable

1

COWL ASSY, SIDE RH (BLACK)

94403-08F40-33J

Unavailable

2

COWL ASSY, SIDE LH (RED)

94404-08F40-28V

Unavailable

2

COWL ASSY, SIDE LH (BLACK)

94404-08F40-33J

Unavailable

2

COWL ASSY, SIDE LH (RED) | E33

94404-08F50-28V

Unavailable

2

COWL ASSY, SIDE LH (BLACK) | E33; Includes Item(s) 3 - 7

94404-08F50-33J

Unavailable

3

EMBLEM, KATANA RH

68681-08F00

Unavailable

4

EMBLEM, KATANA LH

68691-08F00

Unavailable

5

MOLDING

94631-44110

$36.85

6

SHIELD, HEAT RH

94439-08F00

Unavailable

7

SHIELD, HEAT LH

94449-08F00

Unavailable

8

PANEL, CENTER UPPER (RED)

94410-08F00-28V

Unavailable

8

PANEL,COWLING C | Includes Item(s) 9 - 10 This part replaces 94410-08F00-33J.

94411-08F00

$33.18

9

EMBLEM, SUZUKI (GRAY) | FOR 28V

68185-05C10-20G

Unavailable

9

EMBLEM, SUZUKI (SILVER) | FOR 33J

68185-05C10-20H

Unavailable

10

CUSHION

94413-08F00

$3.78

11

LID,OIL This part replaces 94435-08F00-28V.

94435-08F00

Unavailable

11

LID, OIL (BLACK)

94435-08F00-33J

Unavailable

12

SCREW

09139-06030

$3.70

13

WIND SCREEN

94611-08F00

$270.57

14

SCREW

09139-05025

$2.05

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

16

NUT

09159-05019

$7.14

17

CLIP (BLACK)

09409-08308-5ES

$1.97

18

PANEL, METER

94421-08F00

Unavailable

19

PANEL, CENTER LOWER (RED)

94412-08F00-28V

Unavailable

19

PANEL, CENTER LOWER (BLACK)

94412-08F00-33J

Unavailable

20

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

21

PANEL, INNER RH (RED)

94461-08F00-28V

Unavailable

21

PANEL, INNER RH This part replaces 94461-08F00-33J.

94461-08F10

Unavailable

22

PANEL, INNER LH (RED)

94462-08F00-28V

Unavailable

22

PANEL, INNER LH This part replaces 94462-08F00-33J.

94462-08F10

Unavailable
