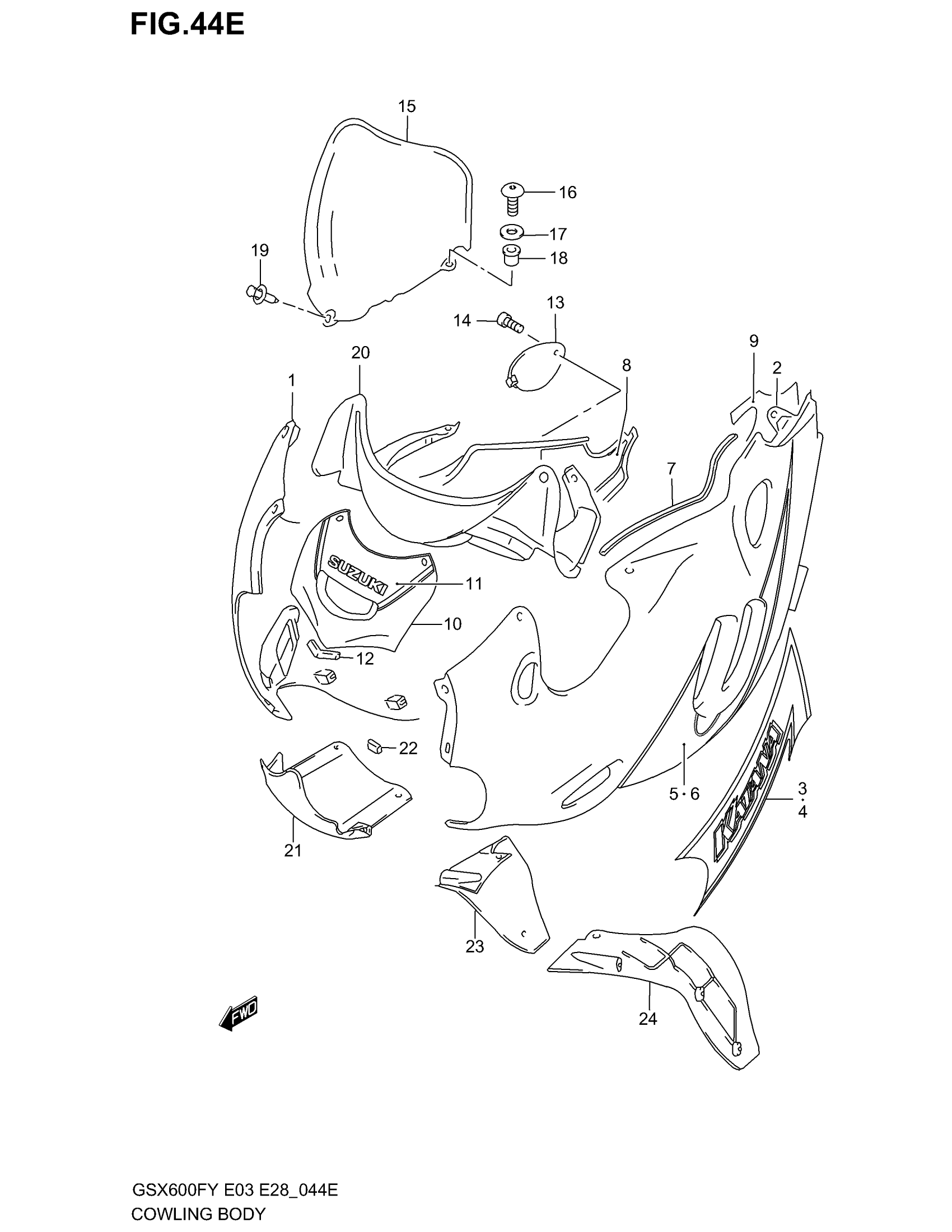

Suzuki GSX600F (2003) COWLING BODY (MODEL K3) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (YELLOW)

94403-08FM0-YU9

Unavailable

1

COWL ASSY, SIDE RH (BLUE)

94403-08FM0-YC2

Unavailable

2

COWL ASSY, SIDE LH (YELLOW)

94404-08FM0-YU9

Unavailable

2

COWL ASSY, SIDE LH (BLUE)

94404-08FM0-YC2

Unavailable

2

COWL ASSY, SIDE LH (YELLOW) | E33

94404-08FN0-YU9

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E33; Includes Item(s) 3 - 9

94404-08FN0-YC2

Unavailable

3

TAPE, SIDE RH | FOR YU9

68685-08F50-YCN

Unavailable

3

TAPE, SIDE RH | FOR YC2

68685-08F50-YCM

Unavailable

4

TAPE, SIDE LH | FOR YU9

68695-08F50-YCN

Unavailable

4

TAPE, SIDE LH | FOR YC2

68695-08F50-YCM

Unavailable

5

TAPE, LOWER RH | FOR YU9

68680-08F00-LR4

Unavailable

5

TAPE, LOWER RH | FOR YC2

68680-08F00-LR3

Unavailable

6

TAPE, LOWER LH | E3,E28 FOR YU9

68690-08F00-LR4

Unavailable

6

TAPE, LOWER LH | E3,E28 FOR YC2

68690-08F00-LR3

Unavailable

6

TAPE, LOWER LH | E33 FOR YU9

68690-08F10-LR4

Unavailable

6

TAPE, LOWER LH | E33 FOR YC2

68690-08F10-LR3

Unavailable

7

MOLDING

94631-44110

$36.85

8

SHIELD, HEAT RH

94439-08F00

Unavailable

9

SHIELD, HEAT LH

94449-08F00

Unavailable

10

PANEL, CENTER UPPER (YELLOW)

94410-08F10-YU9

Unavailable

10

PANEL, CENTER UPPER (BLUE) | Includes Item(s) 11 - 12

94410-08F10-YC2

Unavailable

11

TAPE, UPPER PANEL | FOR YU9

68185-08F10-LR4

Unavailable

11

TAPE, UPPER PANEL | FOR YC2

68185-08F10-LR3

Unavailable

12

CUSHION

94413-08F00

$3.78

13

LID,OIL This part replaces 94435-08F00-YU9.

94435-08F00

Unavailable

13

LID, OIL (BLUE)

94435-08F00-YC2

Unavailable

14

SCREW

09139-06030

$3.70

15

WIND SCREEN

94611-08F00

$270.57

16

SCREW

09139-05025

$2.05

17

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

18

NUT

09159-05019

$7.14

19

CLIP (BLACK)

09409-08308-5ES

$1.97

20

PANEL, METER

94421-08F00

Unavailable

21

PANEL, CENTER LOWER (YELLOW)

94412-08F00-YU9

Unavailable

21

PANEL, CENTER LOWER (BLUE)

94412-08F00-YC2

Unavailable

22

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

23

PANEL, INNER RH

94461-08F10

Unavailable

24

PANEL, INNER LH

94462-08F10

Unavailable
