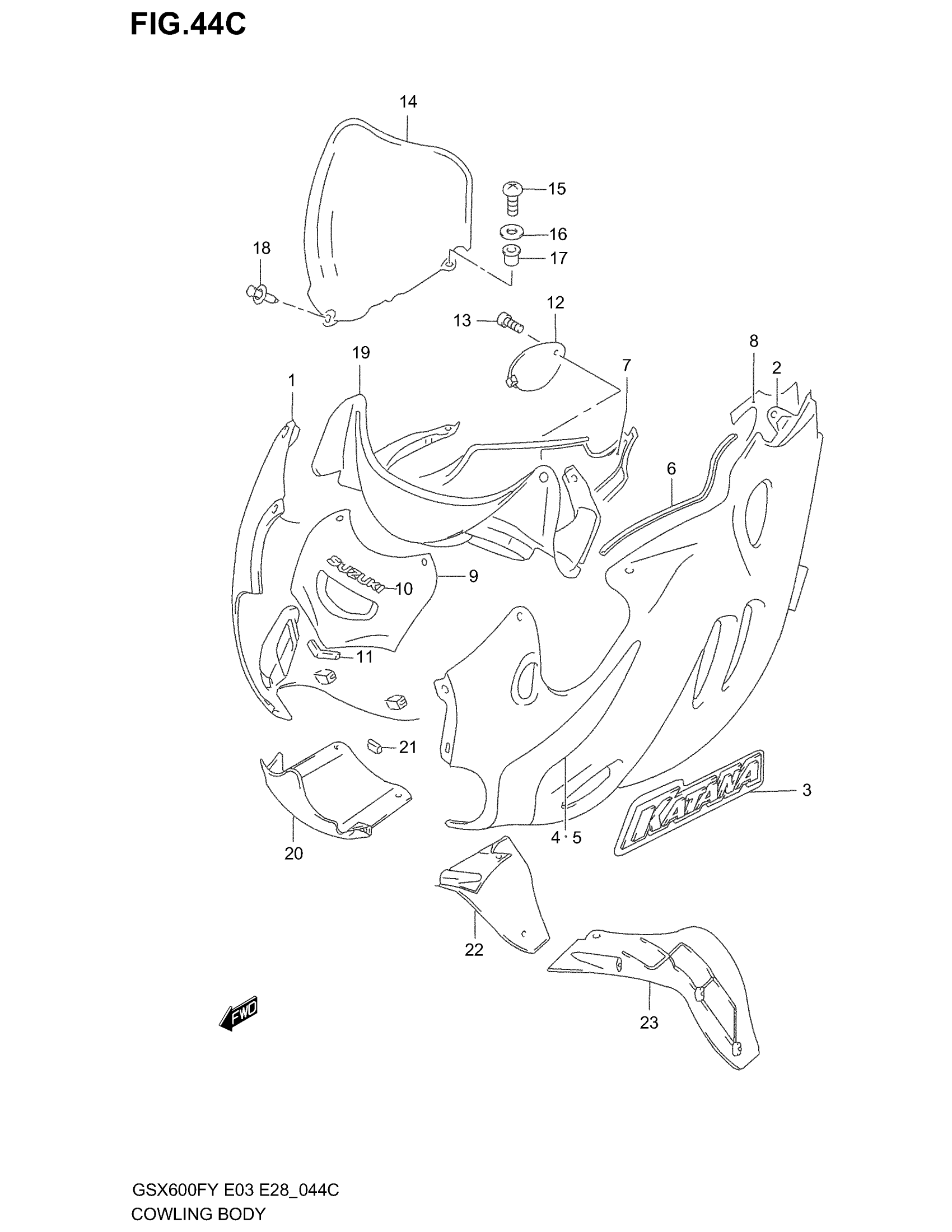

Suzuki GSX600F (2003) COWLING BODY (MODEL K1) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (YELLOW)

94403-08FC0-Y9H

Unavailable

1

COWL ASSY, SIDE RH (BLUE)

94403-08FC0-YC2

Unavailable

2

COWL ASSY, SIDE LH (YELLOW)

94404-08FC0-Y9H

Unavailable

2

COWL ASSY, SIDE LH (BLUE)

94404-08FC0-YC2

Unavailable

2

COWL ASSY, SIDE LH (YELLOW) | E33

94404-08FD0-Y9H

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E33; Includes Item(s) 3 - 8

94404-08FD0-YC2

Unavailable

3

EMBLEM, KATANA | FOR Y9H

68681-08F50-EE5

Unavailable

3

EMBLEM, KATANA | FOR YC2

68681-08F50-EE6

Unavailable

4

TAPE, SIDE RH | FOR Y9H

68685-08F01-BU4

Unavailable

4

TAPE, SIDE RH | FOR YC2

68685-08F01-EE3

Unavailable

5

TAPE, SIDE LH | FOR Y9H

68695-08F01-BU4

Unavailable

5

TAPE, SIDE LH | FOR YC2

68695-08F01-EE3

Unavailable

6

MOLDING

94631-44110

$36.85

7

SHIELD, HEAT RH

94439-08F00

Unavailable

8

SHIELD, HEAT LH

94449-08F00

Unavailable

9

PANEL, CENTER UPPER (YELLOW)

94410-08F00-Y9H

Unavailable

9

PANEL, CENTER UPPER (BLUE) | Includes Item(s) 10 - 11

94410-08F00-YC2

Unavailable

10

EMBLEM, SUZUKI (BLACK) | FOR Y9H

68185-05C10-Y7L

Unavailable

10

EMBLEM, SUZUKI (SILVER) | FOR YC2

68185-05C10-YD8

$20.13

11

CUSHION

94413-08F00

$3.78

12

LID,OIL This part replaces 94435-08F00-Y9H.

94435-08F00

Unavailable

12

LID, OIL (BLUE)

94435-08F00-YC2

Unavailable

13

SCREW

09139-06030

$3.70

14

WIND SCREEN

94611-08F00

$270.57

15

SCREW

09139-05025

$2.05

16

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

17

NUT

09159-05019

$7.14

18

CLIP (BLACK)

09409-08308-5ES

$1.97

19

PANEL, METER

94421-08F00

Unavailable

20

PANEL, CENTER LOWER (YELLOW)

94412-08F00-Y9H

Unavailable

20

PANEL, CENTER LOWER (BLUE)

94412-08F00-YC2

Unavailable

21

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

22

PANEL, INNER RH (YELLOW)

94461-08F00-Y9H

Unavailable

22

PANEL, INNER RH (BLUE)

94461-08F00-YC2

Unavailable

23

PANEL, INNER LH (YELLOW)

94462-08F00-Y9H

Unavailable

23

PANEL, INNER LH (BLUE)

94462-08F00-YC2

Unavailable
