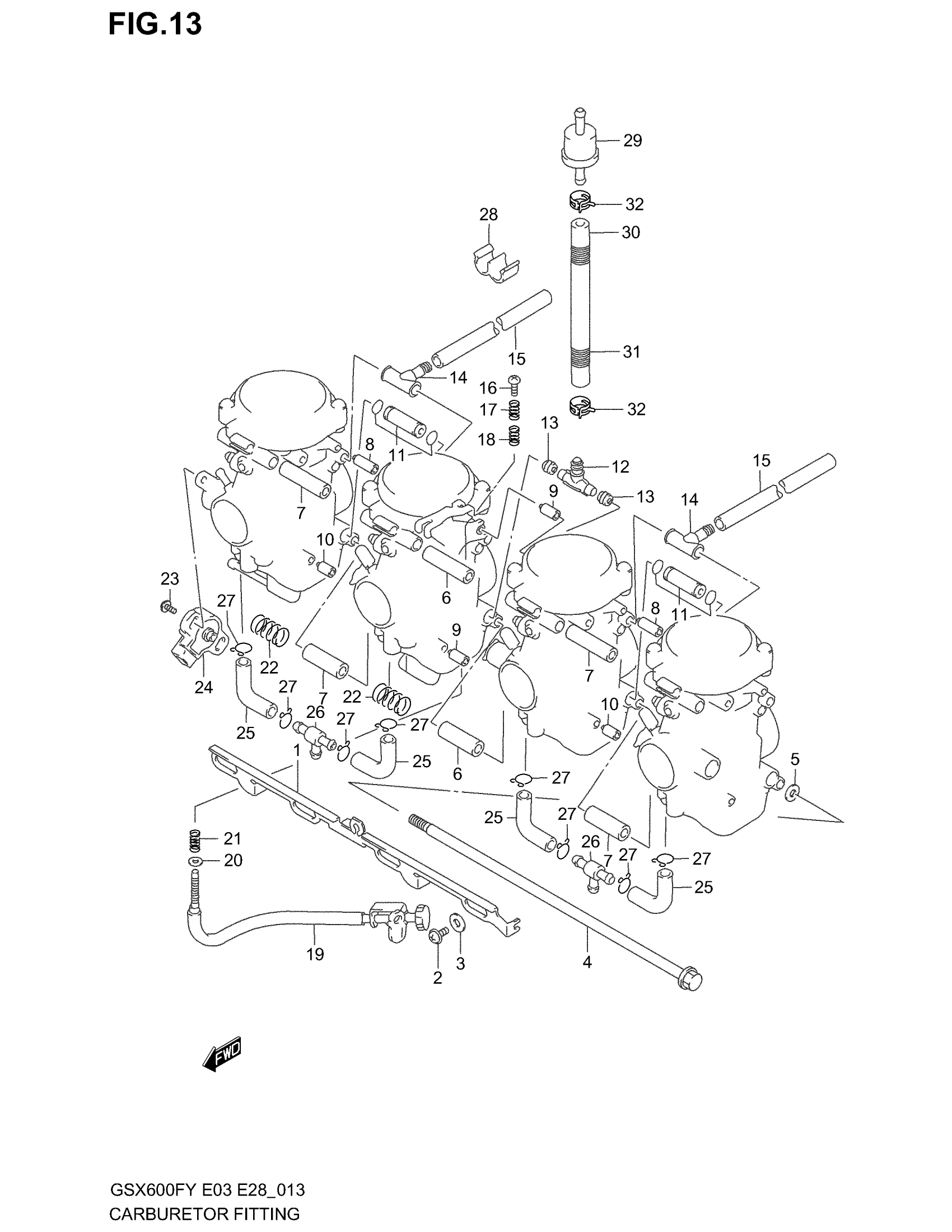

Suzuki GSX600F (2003) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-19E00

Unavailable

2

SCREW This part replaces 02142-04083.

02142-0408B

$1.71

3

PACKING

13557-33E00

$3.92

4

BOLT

13612-33E00

Unavailable

5

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

6

PIPE

13685-19E20

$13.10

7

PIPE

13685-34E00

$11.00

8

ROD

13685-19E00

$10.35

9

ROD

13685-19E10

Unavailable

10

ROD

13685-19E30

$8.52

11

PIPE ASSY

13685-31310

$22.78

12

NIPPLE

13685-16E00

$11.41

13

SEAL

13673-44B00

$4.21

14

HOSE

13683-01DB0

$12.48

15

HOSE(7X10.2X475 | MODEL W/X This part replaces 13683-19E00.

13684-40C01

$25.65

15

HOSE(7X10.2X475 | MODEL Y/K1/K2/K3 This part replaces 13684-40C00.

13684-40C01

$25.65

16

SCREW

13267-44B00

$4.62

17

SPRING

13271-44B00

$3.66

18

SPRING | MODEL W/X/Y This part replaces 13268-96110.

13268-96111

$3.79

18

SPRING | MODEL K1/K2/K3

13268-96111

$3.79

19

ADJUST SCREW ASSY

13267-19E00

Unavailable

20

WASHER

13615-43010

$3.67

21

SPRING

13271-19E00

$5.37

22

SPRING

13573-06C10

$8.77

23

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$81.29

24

SCREW, SENSOR | MODEL W/X/Y This part replaces 13602-55A00.

13605-20C00

$3.62

24

SCREW, SENSOR | MODEL K1/K2/K3

13605-20C00

$3.62

25

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$14.61

26

.NIPPLE | E33

13685-48B00

$11.44

27

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.45

28

CLAMP, AIR VENT HOSE

09408-00100

Unavailable

29

STRAINER, FUEL This part replaces 15410-19E00.

15410-19E10

$17.87

30

HOSE,6.5X11.5X6 | L:600!140 This part replaces 09355-70125-600.

44421-12FR0

$11.29

31

PROTECTOR

09440-14030

$6.78

22

CLIP This part replaces 09401-11407.

09401-11415

$2.24
