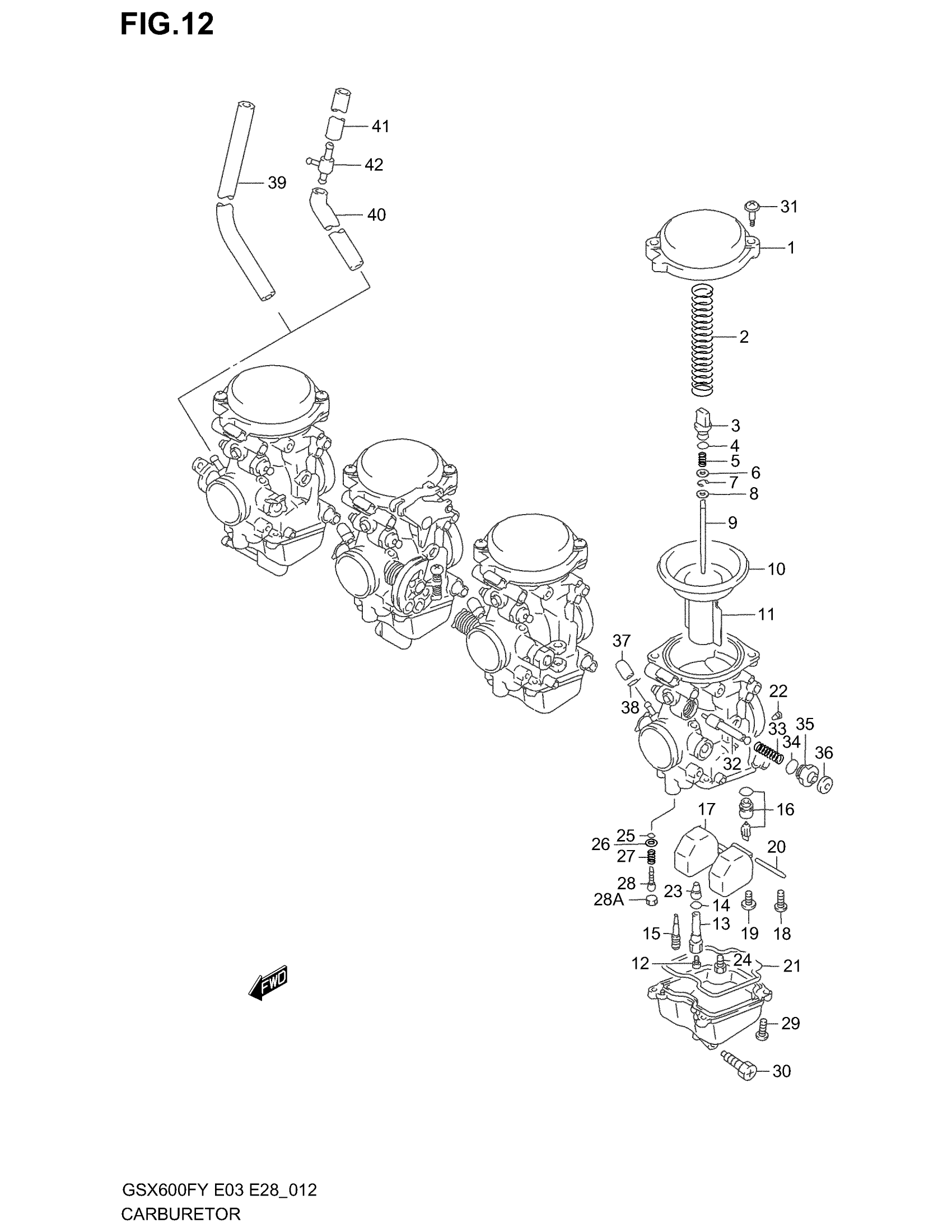

Suzuki GSX600F (2003) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY, LH | MODEL W/X/Y This part replaces 13201-19E30.

13201-19E31

Unavailable

CARBURETOR ASSY, LH | MODEL K1/K2/K3

13201-19E31

Unavailable

CARBURETOR ASSY, LH | E33,MODEL W/X/Y This part replaces 13201-19E40.

13201-19E41

Unavailable

CARBURETOR ASSY, LH | E33,MODEL K1/K2/K3

13201-19E41

Unavailable

CARBURETOR ASSY, ML | MODEL W/X/Y This part replaces 13202-19E30.

13202-19E31

Unavailable

CARBURETOR ASSY, ML | MODEL K1/K2/K3

13202-19E31

Unavailable

CARBURETOR ASSY, ML | E33,MODEL W/X/Y This part replaces 13202-19E40.

13202-19E41

Unavailable

CARBURETOR ASSY, ML | E33,MODEL K1/K2/K3

13202-19E41

Unavailable

CARBURETOR ASSY, MR | MODEL W/X/Y This part replaces 13203-19E30.

13203-19E31

Unavailable

CARBURETOR ASSY, MR | MODEL K1/K2/K3

13203-19E31

Unavailable

CARBURETOR ASSY, MR | E33,MODEL W/X/Y This part replaces 13203-19E40.

13203-19E41

Unavailable

CARBURETOR ASSY, MR | E33,MODEL K1/K2/K3

13203-19E41

Unavailable

CARBURETOR ASSY, RH | MODEL W/X/Y This part replaces 13204-19E30.

13204-19E31

Unavailable

CARBURETOR ASSY, RH | MODEL K1/K2/K3

13204-19E31

Unavailable

CARBURETOR ASSY, RH | E33,MODEL W/X/Y This part replaces 13204-19E40.

13204-19E41

Unavailable

CARBURETOR ASSY, RH | E33,MODEL K1/K2/K3; Includes Item(s) 1 - 42

13204-19E41

Unavailable

1

DIAPHRAGM COVER

13502-19E00

$43.62

2

SPRING

13573-19E00

$8.43

3

HOLDER

13418-33E00

$5.68

4

O RING

09280-05004

$2.11

5

SPRING

13481-04F00

$3.56

6

WASHER

13382-19E00

$3.56

7

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

8

RING | MODEL W/X/Y This part replaces 13387-33E00.

13387-44030

$5.83

8

RING | MODEL K1/K2/K3

13387-44030

$5.83

9

NEEDLE, JET (5DH30-54)

13383-19E30

$20.45

10

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

$27.60

11

VALVE, PISTON

13501-19E30

$88.55

12

JET, NEEDLE (P-0M)

09494-00921

$42.71

13

HOLDER, JET

13385-19E00

$35.45

14

.O RING This part replaces 13246-43010.

13246-43011

$4.34

15

JET, MAIN (115) | LH,RH

09491-23012

$9.69

15

JET, MAIN (112.5) | ML,MR

09491-22014

$17.37

16

VALVE ASSY,NEED | MODEL W/X/Y This part replaces 13370-19E00.

13370-07F01

$57.25

16

VALVE ASSY,NEED | MODEL K1/K2/K3 This part replaces 13370-07F00.

13370-07F01

$57.25

17

FLOAT ASSY

13250-04F00

$34.73

18

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

19

SCREW

13602-05A10

$3.56

20

.PIN, FLOAT

13254-01010

$3.62

21

GASKET

13258-04F00

$9.89

22

JET, PILOT AIR (160)

09493-32007

$16.87

22

JET, PILOT AIR (150) | E33

09492-30013

Unavailable

23

JET, PILOT (12.5)

09492-12008

$14.26

24

JET, STARTER (50)

09491-50006

$12.63

25

O-RING This part replaces 13295-29900.

13295-29901

$4.34

26

WASHER

13291-29900

$1.98

27

SPRING,THROTTLE SCREW

13268-48700

$4.34

28

ADJUSTER (2,5/8)

13279-33E00

$12.48

28

ADJUSTER (2,1/2) | E33

13279-33E00

$12.48

28A

PLUG

13281-05A00

$4.60

29

SCREW

02112-04107

$1.55

30

SCREW, DRAIN | MODEL W/X/Y This part replaces 13247-13A00.

13247-02340

$4.99

30

SCREW, DRAIN | MODEL K1/K2

13247-02340

$4.99

30

SCREW, DRAIN | MODEL K3 This part replaces 13247-13A00.

13247-02340

$4.99

31

SCREW

13247-33E00

$2.92

32

PLUNGER

13411-05300

$24.17

33

SPRING

13417-26D00

$6.08

34

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

35

.HOLDER, GUIDE

13418-44080

$10.00

36

.CAP, STARTER VALVE

13682-31210

$4.37

37

CAP | LH,ML,MR

13274-84000

$3.82

38

CLIP | LH,ML,MR

09401-06101

$2.03

39

HOSE | RH MODEL W/X E3,E28 This part replaces 13683-19E10.

13684-02F10

Unavailable

39

HOSE | RH MODEL Y/K1/K2/K3 E3/E28

13684-02F10

Unavailable

40

HOSE | MODEL W/X E33 This part replaces 13683-19E40.

13684-02F10

Unavailable

40

HOSE | MODEL Y/K1/K2/K3 E33

13684-02F10

Unavailable

41

HOSE | E33

13683-19E30

Unavailable

42

.NIPPLE | E33

13685-48B00

$12.15
