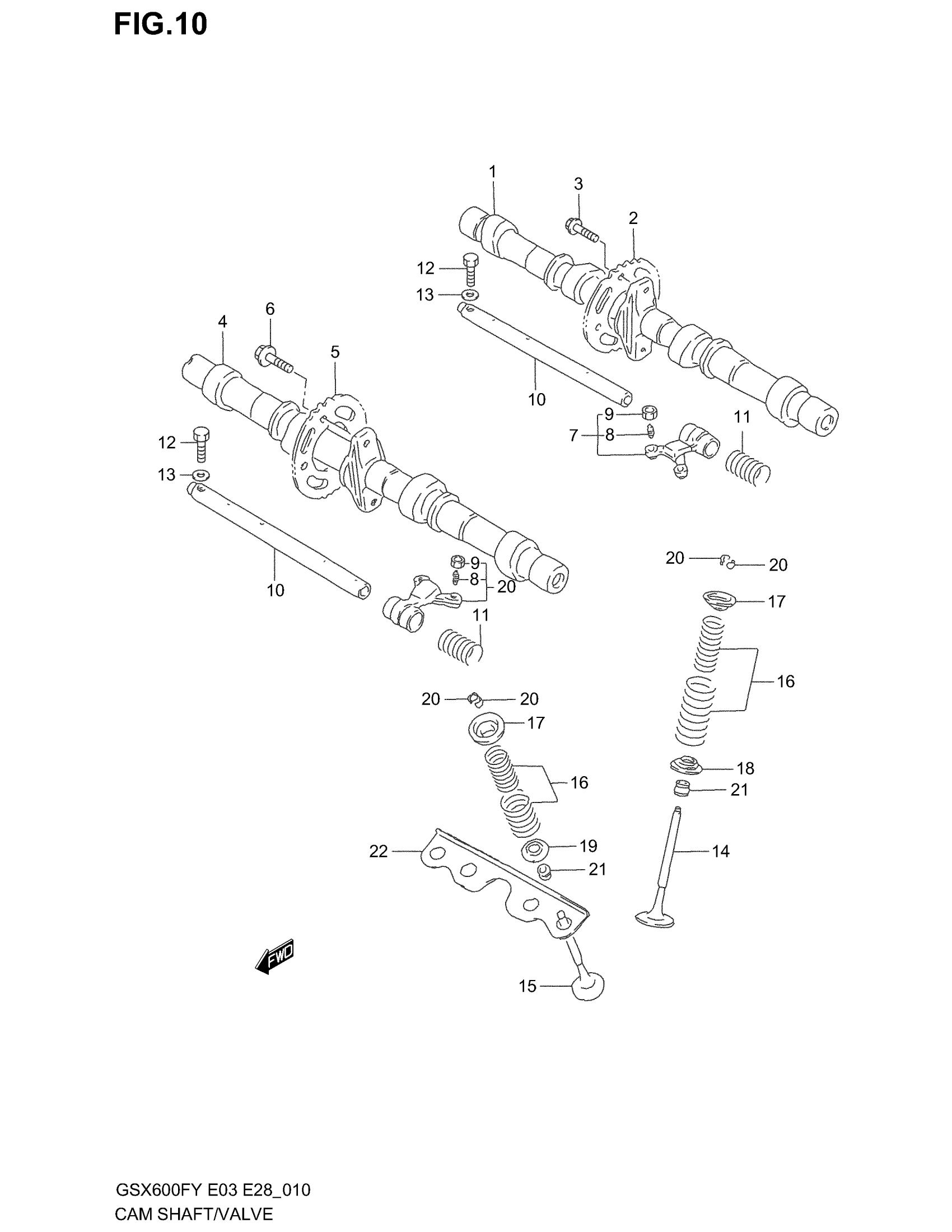

Suzuki GSX600F (2003) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-26E00

Unavailable

2

SPROCKET, CAM SHAFT

12741-26E00

Unavailable

3

BOLT (7X11.5)

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-26E00

Unavailable

5

SPROCKET, CAM SHAFT

12741-26E00

Unavailable

6

BOLT (7X11.5)

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

12840-19C00

Unavailable

8

SCREW

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT | MODEL W/X

01800-06303

Unavailable

12

BOLT | MODEL Y/K1/K2/K3 This part replaces 09112-06004.

01800-06303

Unavailable

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-19C00

Unavailable

15

VALVE, EXHAUST

12912-19C00

Unavailable

16

SPRING SET, VALVE

12920-27A01

Unavailable

17

RETAINER,VALVE SPRING

12931-27A20

$8.12

18

SEAT,VALVE SPRING

12933-81400

$5.17

19

SEAT, EXHAUST

12934-27A01

$5.36

20

COTTER, VALVE

12932-27A00

$2.26

21

OIL SEAL (5X10X8.7)

09289-05011

$6.32

22

PLATE, VALVE SEAT

11137-19C01

Unavailable
