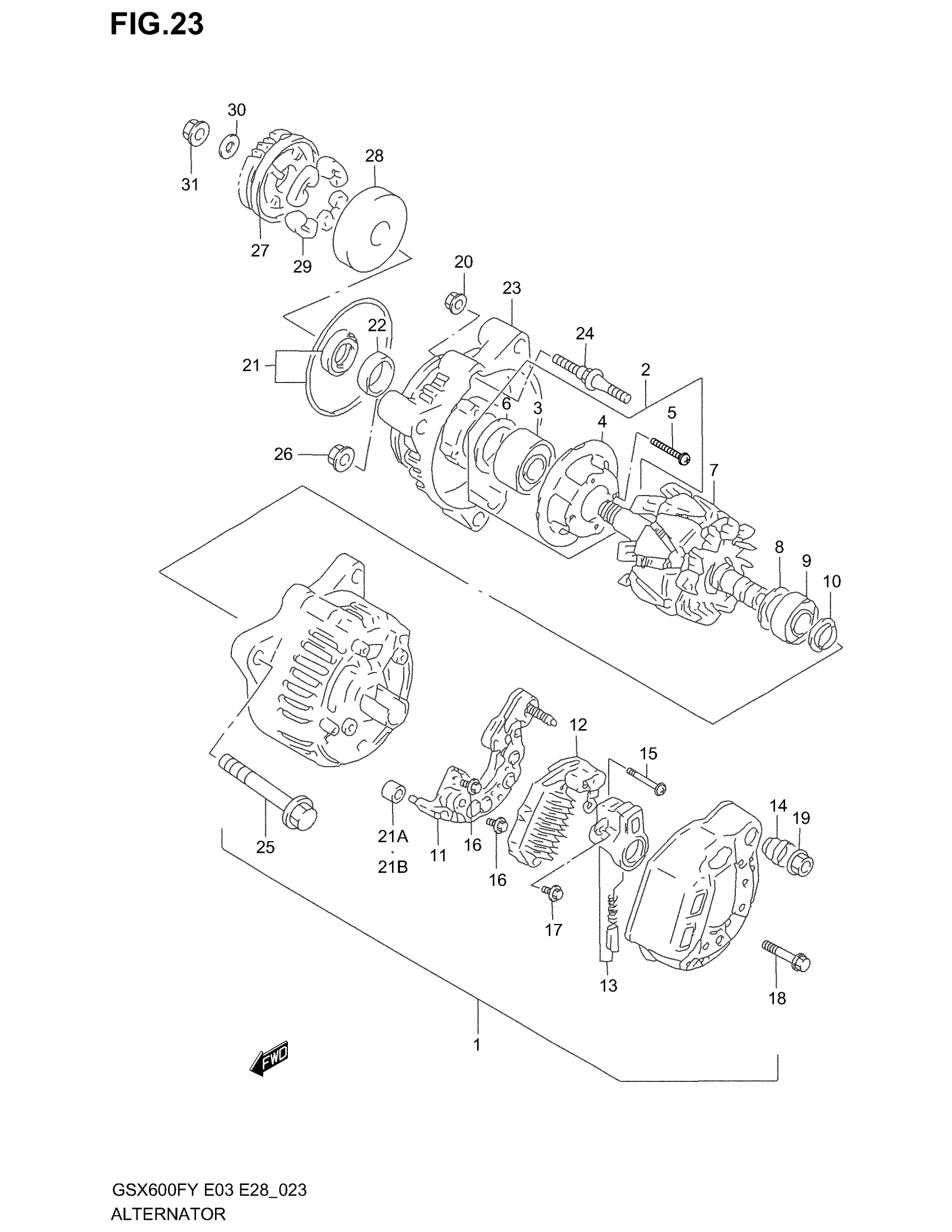

Suzuki GSX600F (2003) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL W/X/Y This part replaces 31400-03F01.

31400-03F40

Unavailable

1

ALTERNATOR ASSY | MODEL K1/K2 This part replaces 31400-03F03.

31400-03F40

Unavailable

1

ALTERNATOR ASSY (BLACK) | MODEL K3; Includes Item(s) 2 - 24

31400-03F40

Unavailable

2

FRAME, DRIVE END

31580-03F00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

RETAINER

31585-03F00

Unavailable

5

SCREW (4X14)

31586-03F00

Unavailable

6

COVER, BEARING

31613-48B00

Unavailable

7

ROTOR ASSY

31710-03F00

Unavailable

8

COVER, BEARING

31613-82610

Unavailable

9

BEARING

31612-48B00

$47.07

10

COVER, NO.2

31613-27A10

Unavailable

11

HOLDER, RECTIFIER

31621-03F00

Unavailable

12

REGULATOR ASSY | MODEL W/X/Y/K1 This part replaces 32500-03F00.

32500-03F11

$215.95

12

REGULATOR ASSY | MODEL K2/K3 This part replaces 32500-03F10.

32500-03F11

$215.95

13

HOLDER, BRUSH

31656-03F00

Unavailable

14

INSULATOR, TERMINAL.

31514-85250

Unavailable

15

SCREW This part replaces 02112-34253.

02112-3425B

$3.08

16

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

17

SCREW

02112-04087

$1.49

18

SCREW This part replaces 02112-04253.

02112-0425B

$2.34

19

NUT This part replaces 08361-15063.

08361-1506A

$1.93

20

NUT This part replaces 08316-10053.

08316-1005A

$2.19

21

SERVICE KIT, A | FOR O RING

31780-27X50

$53.82

21A

SERVICE KIT, B | MODEL W/X/Y FOR DAMPER RUBBER This part replaces 31780-03F01.

31780-03F02

Unavailable

21B

SERVICE KIT, B | MODEL K1/K2/K3 FOR DAMPER RUBBER

31780-03F02

Unavailable

22

SPACER

31776-06B00

Unavailable

23

FRAME, END | MODEL W/X/Y/K1/K2

31611-03F01

Unavailable

23

FRAME, END | MODEL K3

31611-03F40

Unavailable

24

STUD BOLT

31587-85250

Unavailable

25

BOLT This part replaces 01550-08653.

01550-0865A

$3.51

26

NUT This part replaces 08361-35068.

08361-3506A

$1.80

27

GEAR, GENERATOR DRIVEN

22730-19C02

Unavailable

28

HOUSING, GENERATOR GEAR DAMPER

22733-27A05

Unavailable

29

DAMPER, GENERATOR DRIVEN

21231-06B00

$4.64

30

WASHER

08211-10283

$3.78

31

NUT This part replaces 08316-20103.

08316-2010B

$3.43
