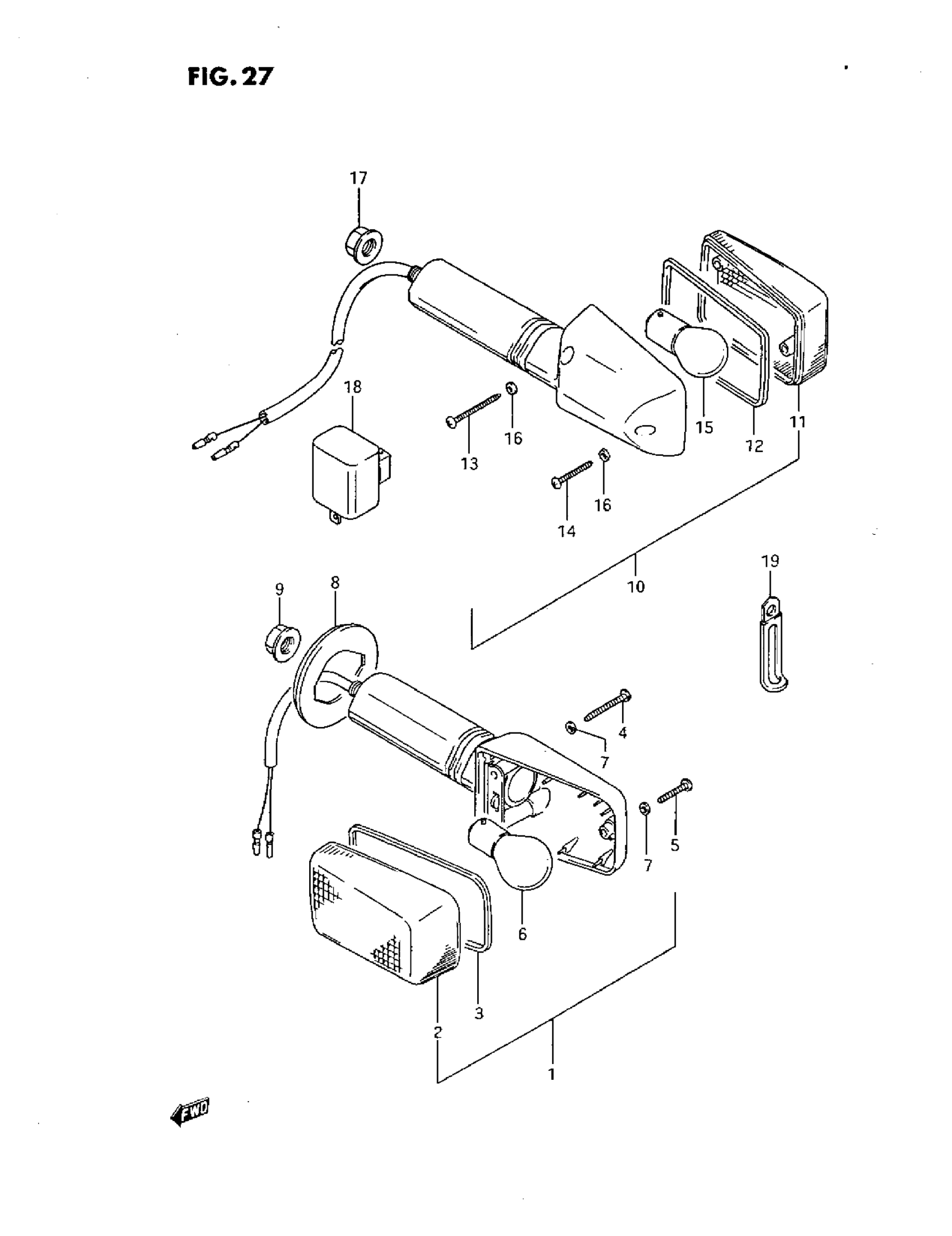

Suzuki GSX600F (1993) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | MODEL J/K/L/M This part replaces 35601-17C21.

35601-01D10

Unavailable

1

LAMP ASSY, FRONT TURN SIGNAL | MODEL N/P/R

35601-01D10

Unavailable

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

SCREW (3X30)

35623-27A00

$1.65

5

SCREW (3X20)

35725-40511

$1.91

6

BULB (12V, 21W)

09471-12045

$3.27

7

GASKET

35627-27A02

$1.58

8

GROWET

35674-27A01

$9.58

9

NUT | MODEL J/K/L/M This part replaces 08316-26105.

08316-2010B

$3.43

9

NUT | MODEL N This part replaces 08310-12108.

08310-00107

$2.19

9

NUT | MODEL P This part replaces 08316-26106.

08316-2010B

$3.43

9

NUT | MODEL R This part replaces 08316-20103.

08316-2010B

$3.43

10

LAMP ASSY, REAR TURN SIGNAL | MODEL J/K/L/M/N/P This part replaces 35603-17C31.

35603-14D20

Unavailable

10

LAMP ASSY, REAR TURN SIGNAL | MODEL R

35603-14D20

Unavailable

11

LENS

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

SCREW (3X30)

35623-27A00

$1.65

14

SCREW (3X20)

35725-40511

$1.91

15

BULB (12V, 21W)

09471-12045

$3.27

16

GASKET

35627-27A02

$1.58

17

NUT | MODEL J/K/L/M This part replaces 08316-26105.

08316-2010B

$3.43

17

NUT | MODEL N This part replaces 08310-12108.

08310-00107

$2.19

17

NUT | MODEL P This part replaces 08316-26106.

08316-2010B

$3.43

17

NUT | MODEL R This part replaces 08316-20103.

08316-2010B

$3.43

18

RELAY ASSY, TURNSIGNAL | MODEL J/K/L/M/N This part replaces 38610-31310.

38610-31X50

$80.15

18

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$78.73

18

RELAY, TURN SIGNAL | MODEL R

38610-45D01

$78.73

19

CLAMP (L:60) | MODEL J This part replaces 09404-05401.

09404-06429

$1.83

19

CLAMP (L:60) | MODEL K/L/M/N/P/R This part replaces 09404-05401.

09404-06429

$1.83
