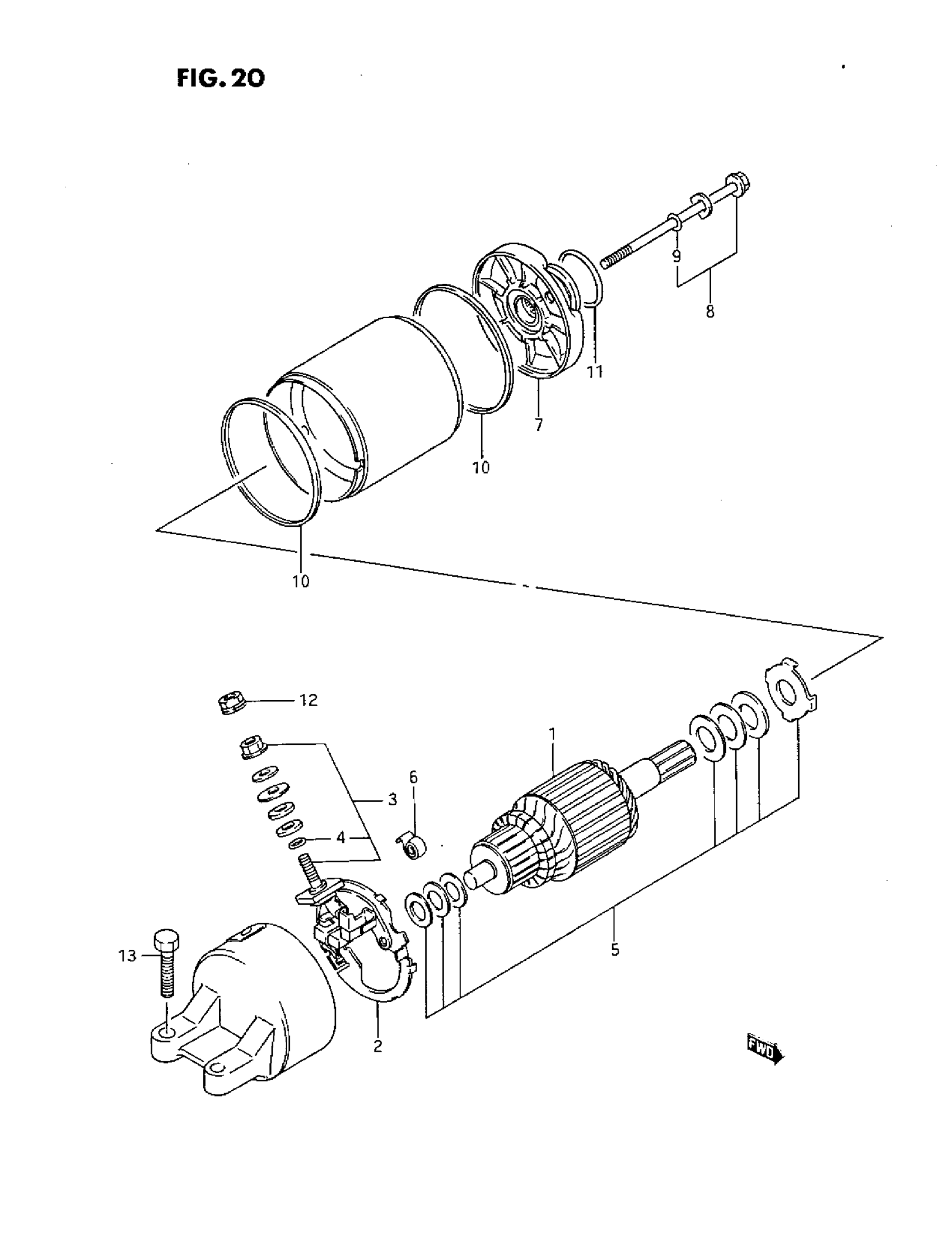

Suzuki GSX600F (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STAR | MODEL J/K/L This part replaces 31100-19C00.

31100-19C03

Unavailable

1

MOTOR ASSY,STAR | MODEL M/N/P/R This part replaces 31100-19C01.

31100-19C03

Unavailable

1

ARMATURE | MODEL J/K/L This part replaces 31311-19C00.

31311-19C02

Unavailable

1

ARMATURE | MODEL M This part replaces 31311-19C01.

31311-19C02

Unavailable

1

ARMATURE (NA) | MODEL N/P/R

31311-19C02

Unavailable

2

HOLDER SET, BRUSH

31132-19B10

$29.77

3

TERMINAL SET, BRUSH

31130-19B10

$28.15

4

O-RING

31143-49040

$3.71

5

WASHER SET

31170-19B10

$12.57

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET ASSY, FRONT

31150-19B10

Unavailable

8

BOLT SET

31280-19B10

Unavailable

9

O-RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

NUT This part replaces 08361-35066.

08361-3506A

$1.80

13

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
