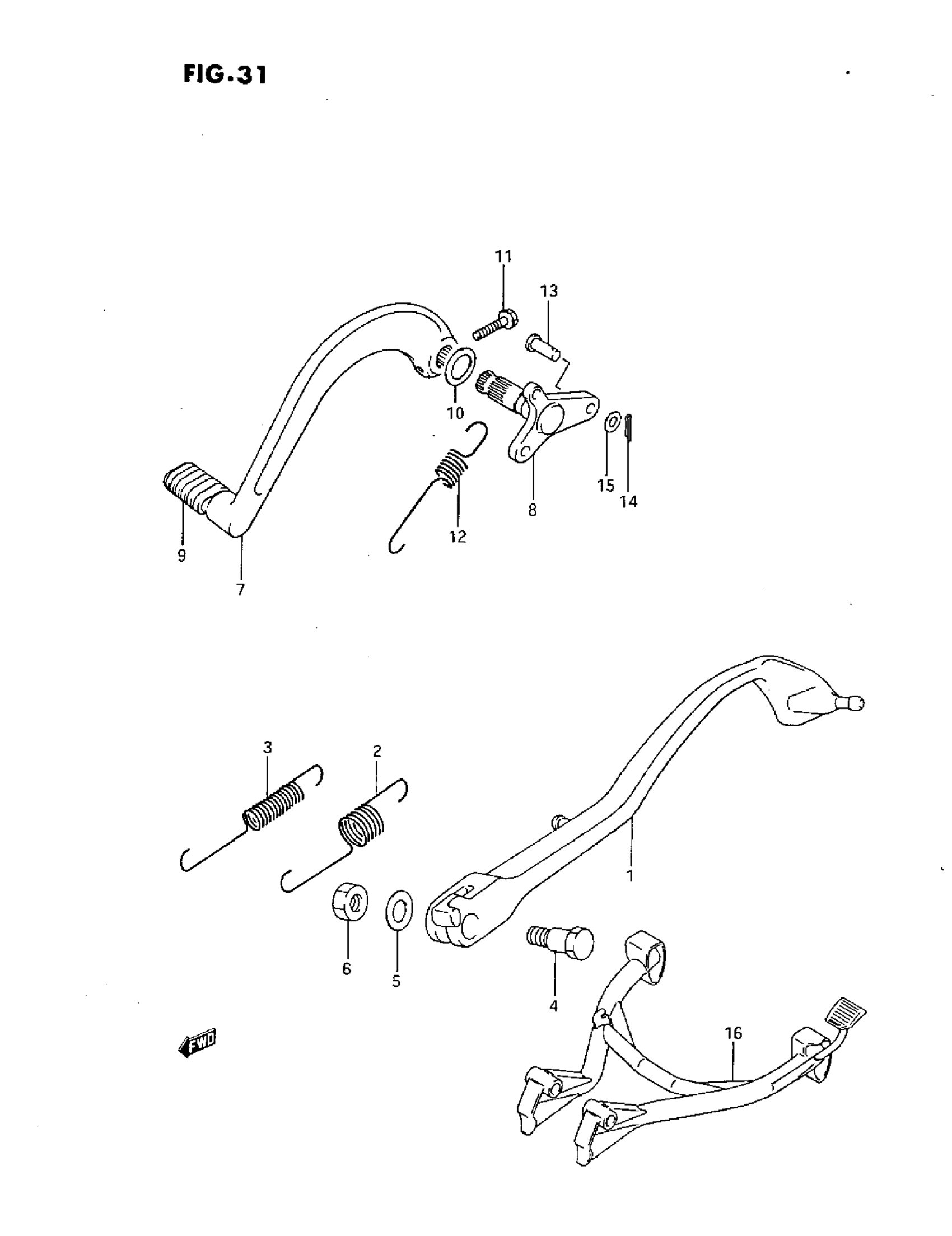

Suzuki GSX600F (1993) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL J This part replaces 42310-19C00.

42310-19C01

Unavailable

1

STAND, PROP | MODEL K/L/M/N/P/R

42310-19C01

Unavailable

2

SPRING, NO.1

09443-12036

$7.84

3

SPRING, NO.2

09443-19010

$6.51

4

BOLT

09111-10036

$4.82

5

SHIM

08221-12224

$1.96

6

NUT | MODEL J/K/L/M/N/P This part replaces 08310-22105.

09140-10043

$2.68

6

NUT | MODEL R

09140-10043

$2.68

7

PEDAL, BRAKE This part replaces 43110-19C00.

43110-19C02

Unavailable

8

ARM, BRAKE PEDAL ROD

43120-19C00

Unavailable

9

RUBBER

43151-04701

$5.80

10

WASHER, BRAKE BOSS

43212-04A00

$2.13

11

BOLT

01547-06257

$2.03

12

SPRING

09443-13028

$7.57

13

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

WASHER This part replaces 08322-21067.

08322-01067

$2.13

16

STAND SET, CENTER | OPT, MODEL J This part replaces 42100-19840.

42100-19843

Unavailable

16

STAND SET, CENTER | OPT, MODEL K/L/M This part replaces 42100-19841.

42100-19843

Unavailable

16

STAND SET, CENTER | OPT, MODEL N/P This part replaces 42100-19842.

42100-19843

Unavailable

16

STAND SET, CENTER | OPT, MODEL R

42100-19843

Unavailable
